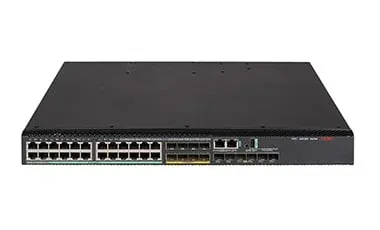

Layer 3 gigabit switches on Comware V9 with 10G/25G uplinks, M-LAG and iNQA for converged campus networks.
Island-wide delivery to all 25 districts
| Models | S5580X-24T6Y-EI, S5580X-48T6Y-EI, S5580S-24T6X-EI, S5580S-48T6X-EI |
|---|---|
| CPU | Dual Core, 1.6GHz |
| Flash/SDRAM | 4G/2G |
| Port Switching Capacity | S5580X-24T6Y-EI: 348Gbps; S5580X-48T6Y-EI: 396Gbps; S5580S-24T6X-EI: 168Gbps; S5580S-48T6X-EI: 216Gbps |
| Packet Forwarding Rate | S5580X-24T6Y-EI: 259Mpps; S5580X-48T6Y-EI: 295Mpps; S5580S-24T6X-EI: 125Mpps; S5580S-48T6X-EI: 161Mpps |
| Dimensions (W×D×H) (unit: mm ) | 440×360×43.6 |
| Weight | ≤4.5kg |
| Console Port | 1 |
| Ethernet Port for Management | 10/100/1000Base-T electrical port: 1 |
| USB Port | 1 |
| 10/100/1000BASE-T auto-sensing Ethernet Port | S5580X-24T6Y-EI: 24; S5580X-48T6Y-EI: 48; S5580S-24T6X-EI: 24; S5580S-48T6X-EI: 48 |
| Combo SFP port | S5580X-24T6Y-EI: 8; S5580X-48T6Y-EI: -; S5580S-24T6X-EI: 8; S5580S-48T6X-EI: - |
| 10G SFP+ port | S5580X-24T6Y-EI: -; S5580X-48T6Y-EI: -; S5580S-24T6X-EI: 6; S5580S-48T6X-EI: 6 |
| 25G SFP28 port | S5580X-24T6Y-EI: 6; S5580X-48T6Y-EI: 6; S5580S-24T6X-EI: -; S5580S-48T6X-EI: - |
| Latency (64byte/µs) | GE: < 5µs 10G/25G< 3µs |
| Fan | S5580X-24T6Y-EI: 2 Modular Fans; S5580X-48T6Y-EI: 2 Modular Fans; S5580S-24T6X-EI: 2 Embedded Fans; S5580S-48T6X-EI: 2 Embedded Fans |
| Power supply | 2 Modular Power Supply |
| Input Voltage | AC: Rated voltage range: 100 to 240V AC: 50/60Hz Maximum voltage range: 90V～290V AC, 47～63Hz DC: Rated voltage range: -48V～-60V DC Maximum voltage range: -36V～-72V |
| Power Consumption | S5580X-24T6Y-EI: MIN: Single AC: 14W Single DC: 18W Dual AC: 16W Dual DC: 25W Typical Single AC: 26W Single DC: 29W Dual AC: 28W Dual DC: 36W MAX: Single AC: 53W Single DC: 54W Dual AC: 56W Dual DC: 61W; S5580X-48T6Y-EI: MIN: Single AC: 17W Single DC: 21W Dual AC: 19W Dual DC: 28W Typical Single AC: 41W Single DC: 43W Dual AC: 41W Dual DC: 48W MAX: Single AC: 62W Single DC: 61W Dual AC: 63W Dual DC: 67W; S5580S-24T6X-EI: MIN: Single AC: 16W Single DC: 20W Dual AC: 18W Dual DC: 27W Typical Single AC: 26W Single DC: 29W Dual AC: 29W Dual DC: 36W MAX: Single AC: 51W Single DC: 52W Dual AC: 53W Du |
| MTBF(Year) | S5580X-24T6Y-EI: 111.92; S5580X-48T6Y-EI: 101.92; S5580S-24T6X-EI: 120.16; S5580S-48T6X-EI: 105.7 |
| MTTR(Hour) | 1 |
| Working Temperature | -5~50℃ |
| Relative Humidity of Working Environment | 5 % to 95 % (non-condensing) |
| Port Aggregation | Support port aggregation Support static aggregation Support dynamic aggregation Support cross-device link aggregation |
| Port Characteristics | Support IEEE802.3x flow control (full duplex) Supports storm suppression based on port rate percentage Supports PPS -based storm suppression Support bps -based storm suppression |
| Jumbo Frame | maximum frame length supported is 10000 |
| MAC Address Table | Support black hole MAC address Supports setting the maximum number of port MAC addresses to learn |
| VLAN | 4K support VLAN Port-based VLAN support Supports MAC -based VLANs Protocol -based VLAN IP subnet based VLAN Support QinQ, flexible QinQ Support VLAN Mapping Support Voice VLAN Support Private VLAN 802.1Q support MVRP support |
