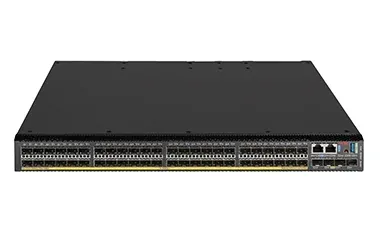

H3C S5580X-HI Series Switches

Model: S5580X-HISeries: S5580

High-performance multigigabit Layer 3 switches running Comware V9, with 25G/100G uplinks and SmartMC.

Multigigabit PoE access with 10G/25G/100G uplinks
2.4 Tbps switching and up to 553 Mpps forwarding
Comware V9 containerised, Linux-native OS
8 MB packet buffer, 4 GB RAM
SmartMC and full Layer 3 routing

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	S5580X-32P4X4YC-HI, S5580X-48P4YC-HI
Port switching capacity	S5580X-32P4X4YC-HI: 744Gbps; S5580X-48P4YC-HI: 696Gbps
Packet forwarding capacity	S5580X-32P4X4YC-HI: 553.57Mpps; S5580X-48P4YC-HI: 517.85Mpps
Switching capacity	2.4Tbps
CPU	Dual Core, 1.2GHz
SDRAM	4G
Flash	4G
Packet buffer	8MB
Dimensions (W×D×H)	440 × 400 × 44 mm
Weight	S5580X-32P4X4YC-HI: ≤ 7.9kg; S5580X-48P4YC-HI: ≤ 8.1kg
Console port	1 RJ45
Management Ethernet port	10/100/1000Base-T electrical port: 1 (Out of Band)
USB port	1
10/100/1000 BASE-T port (PoE++)	S5580X-32P4X4YC-HI: 32; S5580X-48P4YC-HI: 48
1G/10G Base-X SFP+	S5580X-32P4X4YC-HI: 4; S5580X-48P4YC-HI: -
10G/25G Base-X SFP28	4
PoE	PoE++
Latency (64byte LIFO)	GE: <5μs 10G/25G: <3μs
Expansion card slot	1
Input voltage	AC: Rated voltage range: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max voltage range: 90 VAC to 264 VAC @ 47 Hz to 63 Hz
Power supply slots	1+1 hot swappable
Fan trays	hot swappable
Power consumption (static) Data collection standard: no load	S5580X-32P4X4YC-HI: Single AC input: 48 W Dual AC inputs: 59 W; S5580X-48P4YC-HI: Single AC input: 54 W Dual AC inputs: 66 W
Power consumption (with typical configuration) Data collection standard: fully c	S5580X-32P4X4YC-HI: Single AC input: 69 W Dual AC inputs: 77 W; S5580X-48P4YC-HI: Single AC input: 78 W Dual AC inputs: 87 W
Power consumption (fully configured) Data collection standard: fully configured	S5580X-32P4X4YC-HI: Single AC input: 1705 W Dual AC inputs: 3201 W; S5580X-48P4YC-HI: Single AC input: 1690 W Dual AC inputs: 3195W
MTBF(Year)	S5580X-32P4X4YC-HI: 87.14; S5580X-48P4YC-HI: 84.56
MTTR(Hour)	1
Operating temperature	-5ºC to 50ºC (23ºF to 122ºF) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33ºC for every time 100 the altitude increases by 100m.
