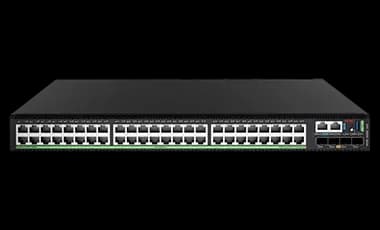

Layer 3 gigabit switches with 10G and 100G uplinks, MACsec, PTP timing and iNQA quality analysis for converged campus networks.
Island-wide delivery to all 25 districts
| Models | S5590-28T8XC-EI, S5590-48T4XC-EI, S5590-28S8XC-EI, S5590-48S4XC-EI, S5590-28P8XC-EI, S5590-48P6XC-EI |
|---|---|
| CPU | Dual Core, 1.2GHz |
| Flash/SDRAM | 4G/2G |
| Packet Buffer | 9MB |
| Switching Capacity | 2.4Tbps |
| Latency (64byte/µs) | GE: < 5µs 10GE < 3µs |
| Port Switching Capacity | S5590-28T8XC-EI: 616Gbps; S5590-48T4XC-EI: 576Gbps; S5590-28S8XC-EI: 616Gbps; S5590-48S4XC-EI: 576Gbps; S5590-28P8XC-EI: 616Gbps; S5590-48P6XC-EI: 616Gbps |
| Packet Forwarding Rate | S5590-28T8XC-EI: 462Mpps; S5590-48T4XC-EI: 432Mpps; S5590-28S8XC-EI: 462Mpps; S5590-48S4XC-EI: 432Mpps; S5590-28P8XC-EI: 462Mpps; S5590-48P6XC-EI: 462Mpps |
| Dimensions (W×D×H) (unit: mm ) | 440×360×44 / 440×400×44 |
| Weight | ≤7kg |
| Console Port | 1 |
| Ethernet Port for Management | 10/100/1000Base-T port: 1 |
| USB Port | 1 |
| 10/100/1000BASE-T auto-sensing Ethernet Port | S5590-28T8XC-EI: 28; S5590-48T4XC-EI: 48; S5590-28S8XC-EI: 4 (combo); S5590-48S4XC-EI: -; S5590-28P8XC-EI: 28; S5590-48P6XC-EI: 48 |
| SFP port | S5590-28T8XC-EI: 4 (combo); S5590-48T4XC-EI: -; S5590-28S8XC-EI: 28; S5590-48S4XC-EI: 48; S5590-28P8XC-EI: 4 (combo); S5590-48P6XC-EI: - |
| SFP+ port | S5590-28T8XC-EI: 8; S5590-48T4XC-EI: 4; S5590-28S8XC-EI: 8; S5590-48S4XC-EI: 4; S5590-28P8XC-EI: 8; S5590-48P6XC-EI: 6 |
| Expansion Card Slot | 1 |
| PoE | S5590-28T8XC-EI: -; S5590-48T4XC-EI: -; S5590-28S8XC-EI: -; S5590-48S4XC-EI: -; S5590-28P8XC-EI: PoE+ Support; S5590-48P6XC-EI: PoE+ Support |
| Input Voltage | AC: Rated voltage range: 100 to 240V AC: 50/60Hz Maximum voltage range: 90V～290V AC, 47～63Hz / AC: Rated voltage range: 100 to 240V AC: 50/60Hz Maximum voltage range: 90V～290V AC, 47～63Hz HVDC: Rated voltage: 240V DC Maximum voltage range: 180V～320V DC |
| 80PLUS | - / Y（80 PLUS Platinum） |
| Power Consumption | S5590-28T8XC-EI: MIN Single AC：38W Dual AC:45W MAX Single AC：108W Dual AC:114W Single AC: 88W (without expansion card) Dual AC: 94W (without expansion card); S5590-48T4XC-EI: MIN Single AC：41WDual AC:48W MAX Single AC：105W Dual AC:108W Single AC: 85W (without expansion card) Dual AC: 88W (without expansion card); S5590-28S8XC-EI: MIN Single AC：39W Dual AC:46W MAX Single AC：119W Dual AC:123W Single AC: 99W (without expansion card) Dual AC: 103W (without expansion card); S5590-48S4XC-EI: MIN Single AC：42W Dual AC:49W MAX Single AC：137W Dual AC:142W Single AC: 117W (without expansion card) Dual A |
| MTBF(Year) | S5590-28T8XC-EI: 105.15; S5590-48T4XC-EI: 101.63; S5590-28S8XC-EI: 110.74; S5590-48S4XC-EI: 101.01; S5590-28P8XC-EI: 32.15; S5590-48P6XC-EI: 28.62 |
| MTTR(Hour) | 1 |
| Working Temperature | -5 ºC to 45 ºC |
| Relative Humidity of Working Environment | 5 % to 95 % (non-condensing) |
| Models | S5590-48TS4X2QC-EI, S5590-24X4YC-EI |
| Dimensions (W×D×H) (unit: mm) | 440×360 ×44 |
| SFP28 port | S5590-48TS4X2QC-EI: -; S5590-24X4YC-EI: 4 |
