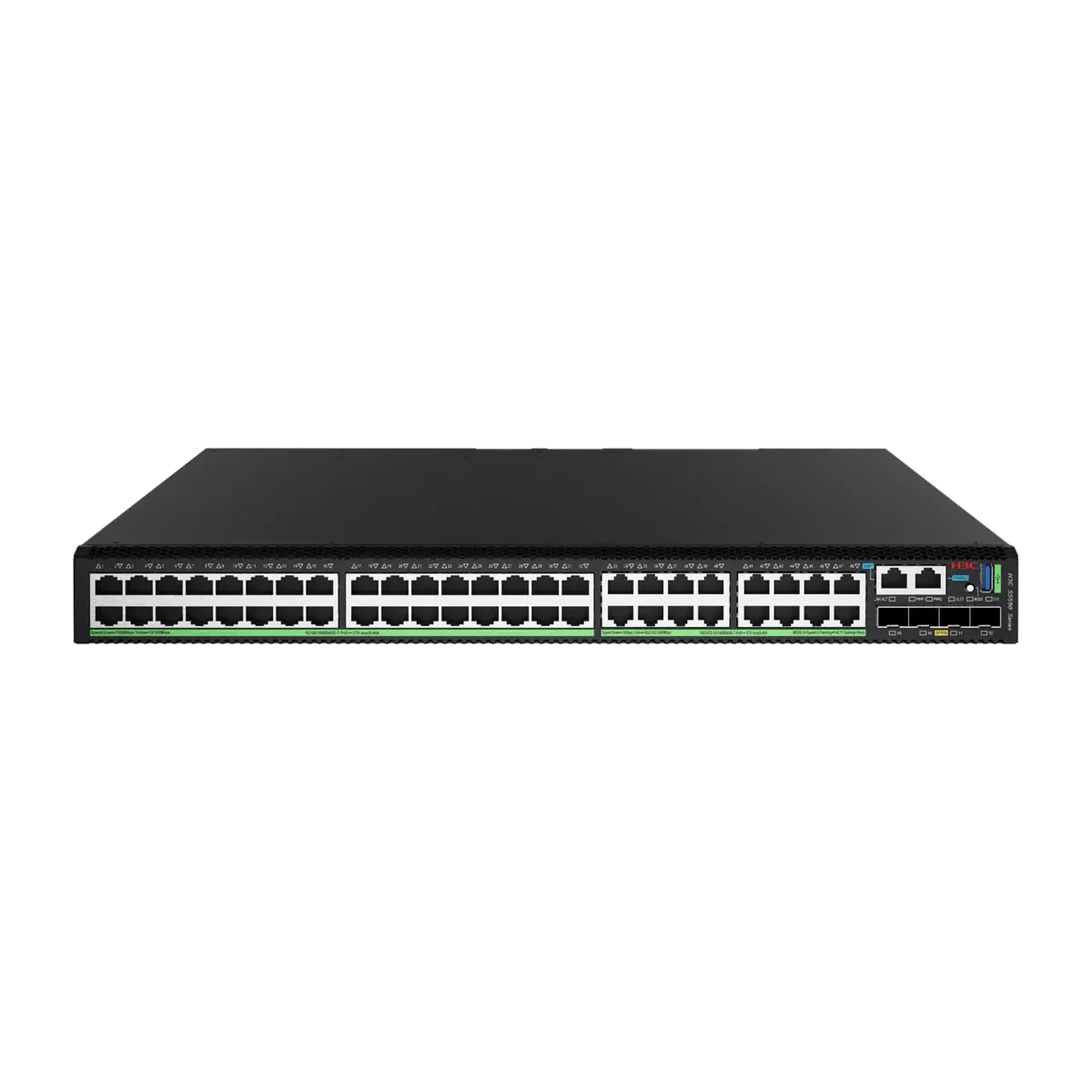

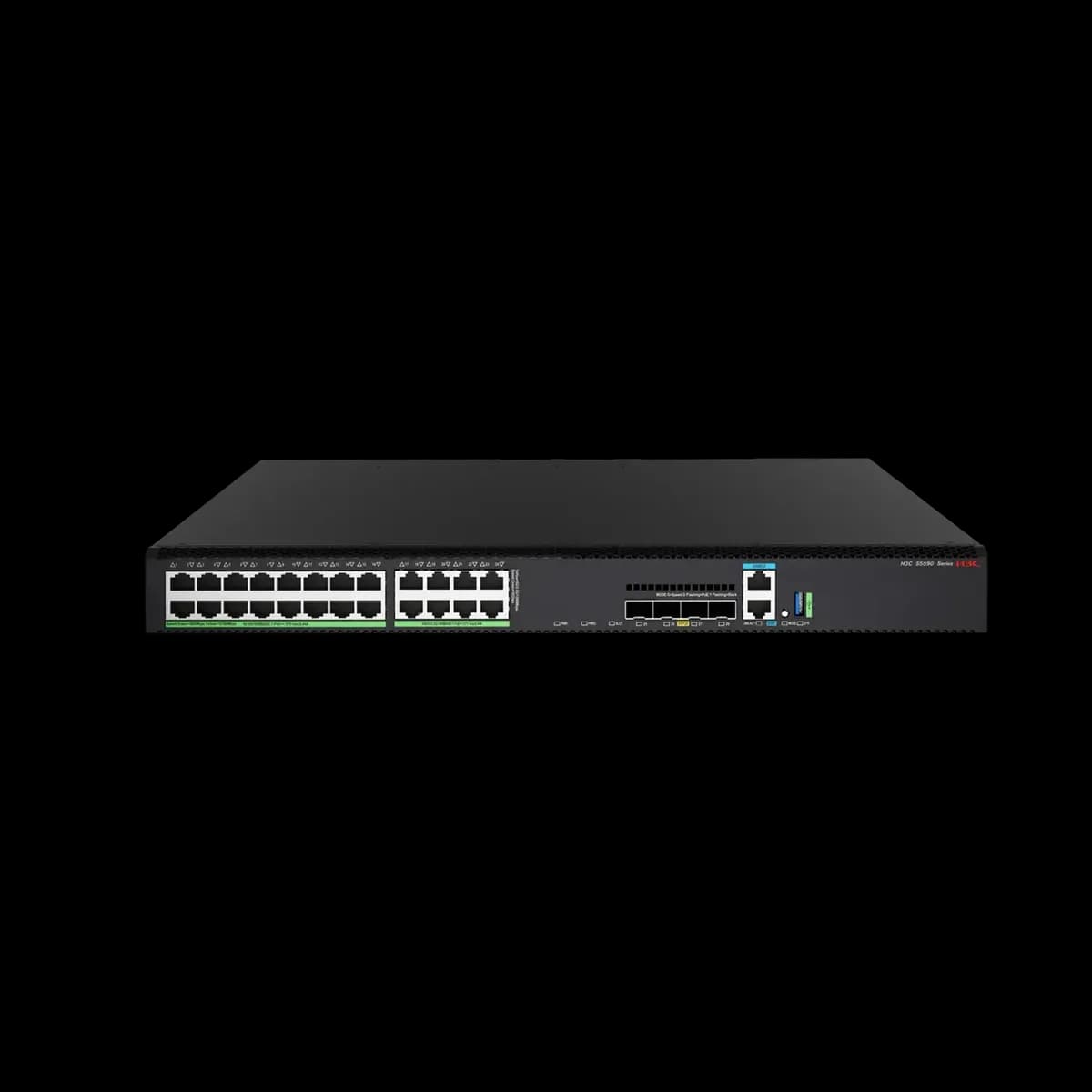

Multi-gigabit S5590-EI variants with 2.5G/5G/10G copper ports and 25G/100G uplinks, ideal for Wi-Fi 6/7 access.
Island-wide delivery to all 25 districts
| Models | S5590-24UXM4YC-EI, S5590-48UXM4YC-EI |
|---|---|
| Port switching capacity | S5590-24UXM4YC-EI: 792Gbps; S5590-48UXM4YC-EI: 984Gbps |
| Packet forwarding capacity | 660Mpps |
| Switching capacity | 2.4Tbps |
| CPU | Dual Core, 1.2GHz |
| SDRAM | 2G |
| Flash | 8G |
| Packet buffer | 9M |
| Dimensions (W×D×H) | 440 × 400 × 44 mm |
| Weight | ≤ 9.5kg |
| Console port | 1 RJ45 |
| Management Ethernet port | 10/100/1000Base-T electrical port: 1 (Out of Band) |
| USB port | 1 |
| 10/100/1000BASE-T port (PoE++) | S5590-24UXM4YC-EI: 16; S5590-48UXM4YC-EI: 32 |
| 10M/100M/1G/2.5G/5G/10G Base-T ports (PoE++) | S5590-24UXM4YC-EI: 8; S5590-48UXM4YC-EI: 16 |
| 10G/25GBase-X SFP28 | 4 |
| Latency (64byte LIFO) | GE: <5μs 10G/25G: <3μs 40G: <1.2μs |
| Expansion card slot | 1 |
| PoE | PoE++ support |
| Power supply slots | 1+1 hot swappable |
| Fan trays | hot swappable |
| Input voltage | AC: Rated input voltage range: 100 to 240V AC: 50/60Hz Max input voltage range: 90 VAC to 290 VAC @ 47 to 63 Hz |
| Power consumption (static) Data collection standard: no load | S5590-24UXM4YC-EI: Single AC: 56W Dual AC: 66W; S5590-48UXM4YC-EI: Single AC: 63W Dual AC: 74W |
| Power consumption (with typical configuration) Data collection standard: fully c | S5590-24UXM4YC-EI: Single AC: 82W Dual AC: 90W; S5590-48UXM4YC-EI: Single AC: 110W Dual AC: 125W |
| Power consumption (fully configured) Data collection standard: fully configured | S5590-24UXM4YC-EI: Maximum Single AC: 1630W Dual AC: 2660W For more information, please check the hardware information in support website.; S5590-48UXM4YC-EI: Maximum Single AC: 1653W Dual AC: 3152W For more information, please check the hardware information in support website. |
| MTBF(Year) | S5590-24UXM4YC-EI: 72.5; S5590-48UXM4YC-EI: 68.97 |
| MTTR(Hour) | 1 |
| Operating temperature | -5ºC to 45ºC (23ºF to 113ºF) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33ºC for every time 100 the altitude increases by 100m. |
