H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

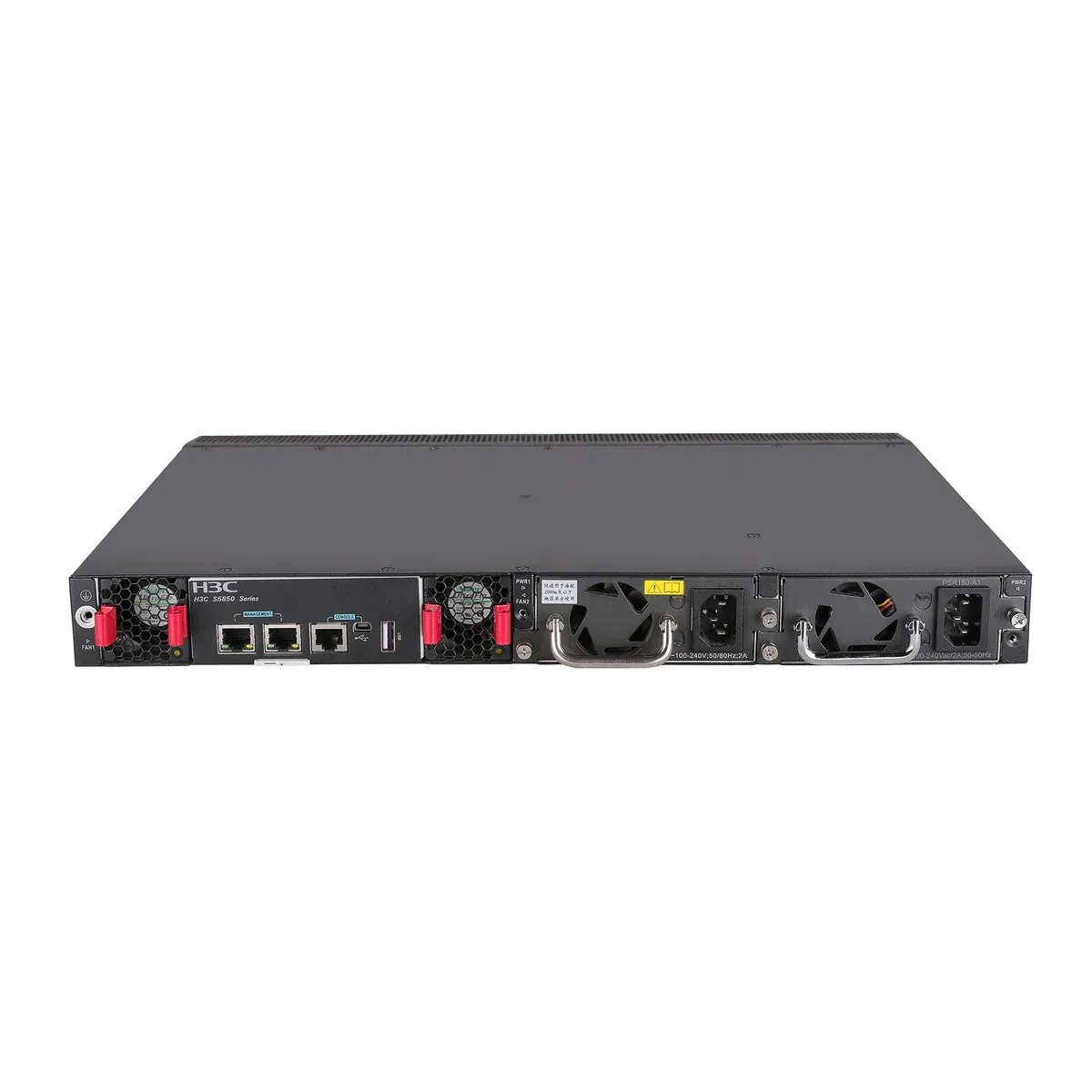

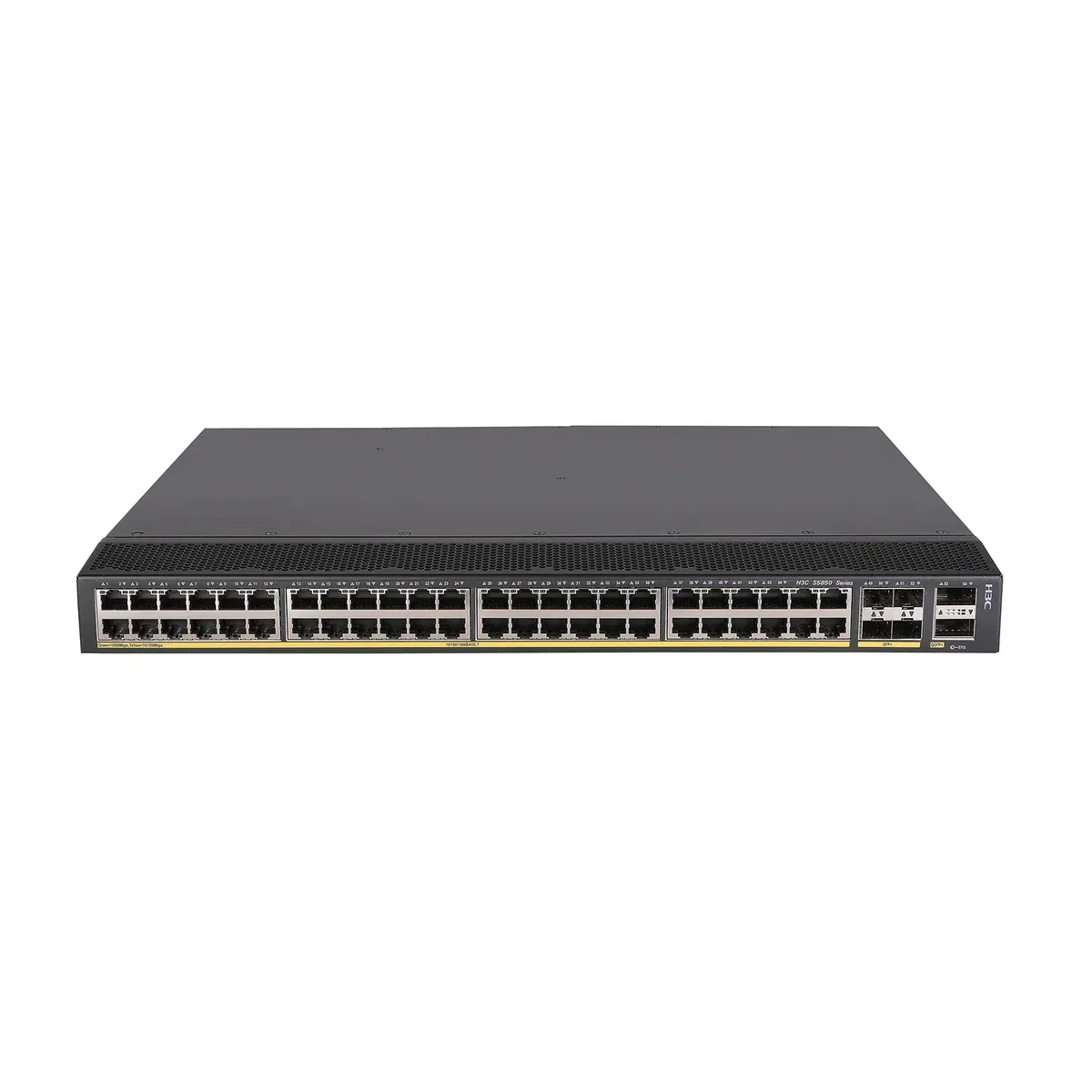

A data-centre gigabit access switch mixing 48 GE ports with 10G and 40G uplinks, redundant power and selectable airflow.
Island-wide delivery to all 25 districts
| project | S5850-54QS |
|---|---|
| Dimensions (W×D×H) (Unit: mm) | 440×360×44 |
| Full weight | ≤7.5kg |
| Serial Console port | 1 piece |
| Out-of-band management Ethernet port | 2 pcs |
| USB port | 1 piece |
| Mini USB Console port | 1 piece |
| 1000BASE-T port | 48 pcs |
| SFP/ SFP+ port | 4 |
| QSFP+ port | 2 pcs |
| Card slot | - |
| SDRAM | 2GB |
| Packet Buffer(bytes) | 8M |
| Input voltage | AC / 100~240V |
| DC | -48~ -60V |
| Power module | Dual modular power supply |
| Fan module | Dual hot-swappable fan modules, front and rear ventilation |
| Working temperature | 0ºC～45ºC |
| Working environment humidity (non-condensing) | 5%～95% |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 250Mpps |
| Forwarding mode | Support store-forward mode |
| Device virtualization | Support IRF2 horizontal virtualization, support local and remote stacking, support distributed device management, distributed link aggregation Support cross-device link aggregation DRNI |
| Network virtualization | Support GRE Tunnel |
| SDN controller | Support VCF Controller |
| Programmable | Support OpenFlow |
| MAC address table | Support dynamic, static, black hole MAC address table entries Support MAC address automatic learning and aging Support source MAC address filtering |
| VLAN | Support port-based, protocol-based, and MAC-based VLAN Support Default VLAN Support PVLAN Support Super VLAN Support Voice VLAN Support QinQ and flexible QinQ |
| Part numbers | LSPM1FANSB-SN |
