H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request
FPGA-based 10G switches with nanosecond Layer 1 latency for trading floors, exchanges and other latency-critical finance networks.
Island-wide delivery to all 25 districts
| Models | S6116-48X, S6116-48X-M, S6216-48X |
|---|---|
| Dimensions (H × W × D) | 440×400×43.6 |
| Fully loaded weight | ≤7.3kg / ≤8.04kg |
| Console port | 1 |
| Out-of-band management Ethernet port | 1 x 100/1000Base-T out-of-band copper port |
| USB port | 1 |
| SFP+ port | S6116-48X: 48 x (1/10GE); S6116-48X-M: 48 x (10GE); S6216-48X: 48 x (10GE) |
| FPGA card slot | S6116-48X: -; S6116-48X-M: 2; S6216-48X: 1 |
| Input voltage | AC / 90v~264v |
| DC | -40v~-72v |
| Power supplies | Dual modular power supply |

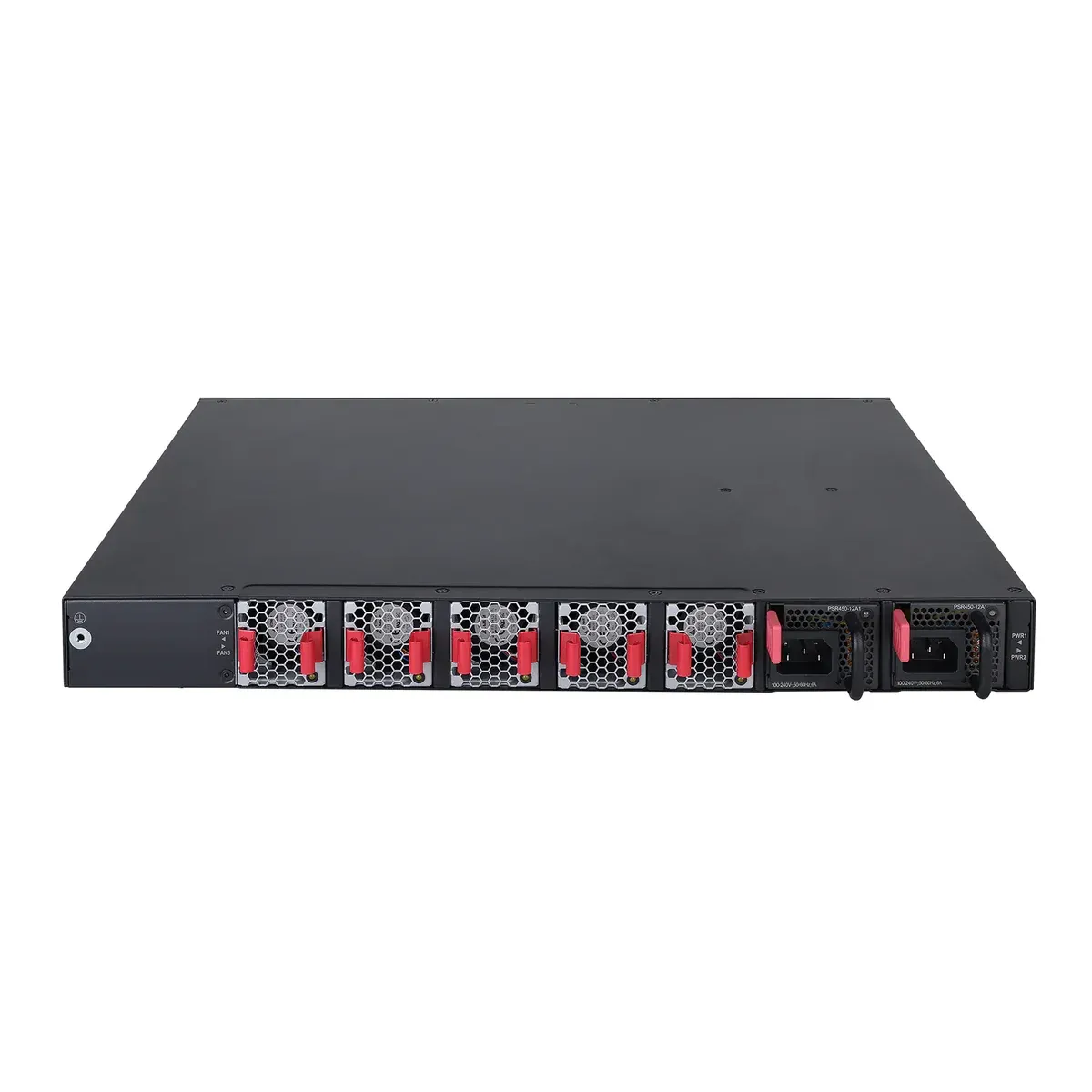

| Fan module | 5 hot-swappable fan modules, front-to-back or back-to-front airflow |
| Static power consumption | Single AC:120W Dual AC:128W Single DC:131W Dual DC: 135W |
| Maximum power consumption | Single AC: 245W Dual AC: 249W Single DC: 248W Dual DC: 256 W |
| MTBF (year) | 55.8035 |
| MTTR (HRS) | 0.5 |
| Operating temperature | 0ºC～45ºC |
| Operating environment humidity (non-condensing) | 5%～95% |
| Models | S6116-48X, S6116-48X-M, S6216-48X |
| Minimum latency | S6116-48X: 1.5ns; S6116-48X-M: 35ns; S6216-48X: 117ns~152ns |
| Layer 1 | Supports Patch Panel (realizing two-port, bidirectional traffic intercommunication) Supports Tapping (mirroring the incoming traffic of the port to monitor the incoming traffic) Supports Fan out (distributing the incoming traffic of the port to multiple ports for 1:N traffic replication) |
| Layer 1.5 | - / Demultiplexing Multiplexing Timestamp Supports L4 (Layer 4) packet filtering function, providing filtering based on source IP address, destination IP address, source port number, destination port number, tcp/udp |
| L2 | S6116-48X: -; S6116-48X-M: -; S6216-48X: STP LLDP LACP Port Aggregation IGMP-Snooping MAC VLAN、PVLAN |
| L3 | S6116-48X: -; S6116-48X-M: -; S6216-48X: ECMP BGP4/RIP/OSPF ARP Proxy VRRP BFD DHCP Client/Relay |
| FPGA App | S6116-48X: -; S6116-48X-M: FastMux SecurityMux Enhance Mutil-SecurityMux Mirroring Aggregation (Tapping Aggregation); S6216-48X: FastMux SecurityMux Enhance Mutil-SecurityMux Mirroring Aggregation Tapping Aggregation Switch Mode |
| Security | Supports user-level management and password protection Supports various authentication methods such as AAA and Radiu Supports SSHv1.5 and SSHv2.0 / Supports user-level management and password protection Supports various authentication methods such as AAA and Radiu |
| External real-time clock synchronization | - / GPS clock access 1PPS PTP (1588v2) clock protocol NTP |
| Loading and upgrading | Supports FTP (File Transfer Protocol) load upgrade Supports TFTP (Trivial File Transfer Protocol) load upgrade |
