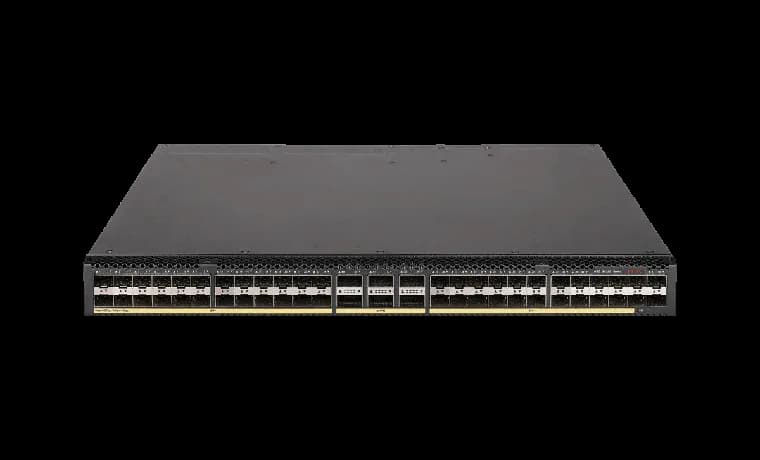

High-density 10GE access and aggregation switches with 40G/100G uplinks, expansion slots and dual power supplies.
Island-wide delivery to all 25 districts
| Models | S6520X-30HC-EI, S6520X-30QC-EI, S6520X-54HC-EI, S6520X-54QC-EI, S6520X-54HF-EI, S6520X-30HF-EI, S6520X-54HC-UPWR-EI |
|---|---|
| Port switching capacity | S6520X-30HC-EI: 1200Gbps; S6520X-30QC-EI: 960Gbps; S6520X-54HC-EI: 2160Gbps; S6520X-54QC-EI: 1440Gbps; S6520X-54HF-EI: 2160Gbps; S6520X-30HF-EI: 1680Gbps; S6520X-54HC-UPWR-EI: 2160Gbps |
| Packet forwarding rate | S6520X-30HC-EI: 705Mpps; S6520X-30QC-EI: 705Mpps; S6520X-54HC-EI: 1050Mpps; S6520X-54QC-EI: 1050Mpps; S6520X-54HF-EI: 600Mpps; S6520X-30HF-EI: 600Mpps; S6520X-54HC-UPWR-EI: 1050Mpps |
| Box Switching Capacity | 2.56Tbps |
| Dimensions (H × W × D) | 43.6 × 440 × 360 mm / 44 × 440 × 460 mm |
| Weight | S6520X-30HC-EI: ≤7.4KG; S6520X-30QC-EI: ≤7KG; S6520X-54HC-EI: ≤ 7.6KG; S6520X-54QC-EI: ≤7.2KG; S6520X-54HF-EI: ≤6KG; S6520X-30HF-EI: ≤5.5KG; S6520X-54HC-UPWR-EI: ≤9.6 KG |
| CPU | Dual Core, 1.6GHz / 4 Core, 2.0GHz |
| SDRAM | S6520X-30HC-EI: 2GB; S6520X-30QC-EI: 2GB; S6520X-54HC-EI: 2GB; S6520X-54QC-EI: 2GB; S6520X-54HF-EI: 4GB; S6520X-30HF-EI: 4GB; S6520X-54HC-UPWR-EI: 4GB |
| Flash | 1GB |
| Packet Buffer | 10M |
| Console ports | 1 |
| Management Ethernet ports | 1 |
| USB ports | 1 |
| 1G/2.5G/5G/10G Base-T Multi-giga | S6520X-30HC-EI: -; S6520X-30QC-EI: -; S6520X-54HC-EI: -; S6520X-54QC-EI: -; S6520X-54HF-EI: -; S6520X-30HF-EI: -; S6520X-54HC-UPWR-EI: 24+24(optional) |
| SFP+ | S6520X-30HC-EI: 24; S6520X-30QC-EI: 24; S6520X-54HC-EI: 48; S6520X-54QC-EI: 48; S6520X-54HF-EI: 48; S6520X-30HF-EI: 24; S6520X-54HC-UPWR-EI: 24(optional) |
| QSFP+ | S6520X-30HC-EI: -; S6520X-30QC-EI: 2; S6520X-54HC-EI: -; S6520X-54QC-EI: 2; S6520X-54HF-EI: -; S6520X-30HF-EI: -; S6520X-54HC-UPWR-EI: - |
| QSFP28 | S6520X-30HC-EI: 2; S6520X-30QC-EI: -; S6520X-54HC-EI: 2; S6520X-54QC-EI: -; S6520X-54HF-EI: 6; S6520X-30HF-EI: 6; S6520X-54HC-UPWR-EI: 4 |
| Expansion slots | 2 / - |
| Expansion modules | 2-Port 10G SFP+ Ethernet Optical Interface Module 4-Port 10G SFP+ Ethernet Optical Interface Module 8-Port 10G SFP Plus Interface Card 8-Port 10G SFP+ with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module 2-port 25GE SFP28 interface module 2-port 40GE QSFP+ interface module 8-port 25GE SFP28 interface module (for S6520X-54HC-EI) 2-port 100GE QSFP28 interface module (for S6520X-54HC-EI) / N/A / Front Slot: 24*10G/1G SFP+ ports module 24*100M/1G/2.5G/5G/10G Base-T PoE++ Ports module Rear Slot: as shown in “ |
| Input voltage range | AC power supply： Rated voltage range: 100 to 240 VAC @ 50/60 Hz Max voltage range: 90 to 290 VAC @ 47to 63 Hz High voltage input: 240V DC DC power supply： Rated voltage range: –48 to–60VDC Max voltage range: –36 to–72VDC / AC power supply: Rated Voltage Range: 100 to 240 VAC @ 50/60 Hz Max voltage range: 90 to 290 VAC @ 47to 63 Hz |
| 80 PLUS (80 PLUS Certified) | - / Y 80PLUSPlatinum |
| Fan trays | 2 hot swappable fan trays, automatic multi-level adjustable speed, and invertible airflow / 3 hot swappable fan trays, automatic multi-level adjustable speed, and invertible airflow |
| Power Supply slots | 2（Hot swappable） |
| Idle power consumption (30% of traffic load, tested according to ATIS standard) | S6520X-30HC-EI: Single AC: 38W Dual AC: 43W; S6520X-30QC-EI: Single AC: 38W Dual AC: 43W; S6520X-54HC-EI: Single AC: 44W Dual AC: 49W; S6520X-54QC-EI: Single AC: 39W Dual AC: 44W; S6520X-54HF-EI: Single AC: 29W Dual AC: 36W; S6520X-30HF-EI: Single AC: 29W Dual AC: 35W; S6520X-54HC-UPWR-EI: Host+SFP module: Single AC：74W Dual AC: 89W Host+Ethernet module: Single AC：69W Dual AC: 82W |
| Max. power Consumption (100% throughput, full speed of fans) | S6520X-30HC-EI: Single AC: 197W Dual AC: 200W; S6520X-30QC-EI: Single AC: 179W Dual AC: 183W; S6520X-54HC-EI: Single AC: 249W Dual AC: 251W; S6520X-54QC-EI: Single AC: 231W Dual AC: 234W; S6520X-54HF-EI: Single AC: 163W Dual AC: 162W; S6520X-30HF-EI: Single AC: 131W Dual AC: 134W; S6520X-54HC-UPWR-EI: Host+SFP module Single AC：1580W Dual AC: 2487W Host+Ethernet module: Single AC：1595W Dual AC: 3061W |
| Operating Temperature | 0℃ to 45℃ (32℉to 113℉) -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
| Storage Temperature | -40℃ to 70℃(-40℉ to 158℉) |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
