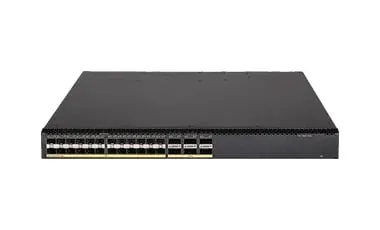

Advanced 10GE aggregation switches with 40G/100G uplinks, embedded AC and MACsec for large campus networks.
Island-wide delivery to all 25 districts
| Models | S6520X-54HC-HI, S6520X-54QC-HI, S6520X-30HC-HI, S6520X-30QC-HI, S6520X-54HF-HI, S6520X-30HF-HI |
|---|---|
| CPU | Dual Core, 1.6GHz |
| Port Switching capacity | S6520X-54HC-HI: 2160Gbps; S6520X-54QC-HI: 1440Gbps; S6520X-30HC-HI: 1680Gbps; S6520X-30QC-HI: 960Gbps; S6520X-54HF-HI: 2160Gbps; S6520X-30HF-HI: 1680Gbps |
| Packet forwarding rate | 1050Mpps / 705Mpps |
| System Switching Capacity | 2.56Tbps |
| Dimensions (H × W × D) | 43.6 × 440 × 360 mm (1.72 × 17.32 × 14.17 in) |
| Weight | S6520X-54HC-HI: ≤ 7.6 kg; S6520X-54QC-HI: ≤ 7.2 kg; S6520X-30HC-HI: ≤ 7.4 kg; S6520X-30QC-HI: ≤ 7 kg; S6520X-54HF-HI: ≤ 6.5 kg; S6520X-30HF-HI: ≤ 6 kg |
| Flash/SDRAM | 1GB/2GB |
| Packet Buffer | 12M |
| Console ports | 1 |
| Management Ethernet ports | 1 |
| USB ports | 1 |
| Micro USB ports | 1 |
| SFP+ | S6520X-54HC-HI: 48; S6520X-54QC-HI: 48; S6520X-30HC-HI: 24; S6520X-30QC-HI: 24; S6520X-54HF-HI: 48; S6520X-30HF-HI: 24 |
| QSFP+ | S6520X-54HC-HI: -; S6520X-54QC-HI: 2; S6520X-30HC-HI: -; S6520X-30QC-HI: 2; S6520X-54HF-HI: -; S6520X-30HF-HI: - |
| QSFP28 | S6520X-54HC-HI: 2; S6520X-54QC-HI: -; S6520X-30HC-HI: 2; S6520X-30QC-HI: -; S6520X-54HF-HI: 6; S6520X-30HF-HI: 6 |
| Expansion slots | 2 / N/A |
| Compatible interface modules | 2-Port 10G SFP Plus Ethernet Optical Interface Module 8-Port 10G SFP+ with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module 2-port 25GE SFP28 interface module 2-port 40GE QSFP+ interface module 8-port 25GE SFP28 interface module (for S6520X-54HC-HI) 2-port 100GE QSFP28 interface module (for S6520X-54HC-HI) / N/A |
| Input voltage range | Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max.: 90 VAC to 264 VAC @ 47 Hz to 63 Hz Rated voltage range: –48 to–60VDC Max voltage range: –36 to–72VDC / Rated voltage range: 100 to 240 VAC @ 50/60 Hz Max voltage range: 90 to 264 VAC @ 47to 63 Hz |
| Power Supply slots | 2 |
| Fan trays | 2 hot swappable fan trays, invertible airflow / 3 hot swappable fan trays, invertible airflow |
| Power consumption | S6520X-54HC-HI: MIN: Single AC: 44W; Dual AC: 49W MAX: Single AC: 249W. Dual AC: 251W; S6520X-54QC-HI: MIN: Single AC: 39W; Dual AC: 44W MAX: Single AC: 231W; Dual AC: 234W; S6520X-30HC-HI: MIN: Single AC: 38W; Dual AC: 43W MAX: Single AC: 197W; Dual AC: 200W; S6520X-30QC-HI: MIN: Single AC: 38W; Dual AC: 43W MAX: Single AC: 179W; Dual AC: 183W; S6520X-54HF-HI: MIN: Single AC: 36W Dual AC: 44W MAX: Single AC: 177W Dual AC：176W; S6520X-30HF-HI: MIN: Single AC：38W Dual AC：46W MAX: Single AC：143W Dual AC：145W |
| Operating temperature | 0ºC to 45ºC (32°F to 113°F) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
| Storage temperature | -40℃ to 70℃(-40℉ to 158℉) |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| MTBF(Year) | S6520X-54HC-HI: 60.8; S6520X-54QC-HI: 60.2; S6520X-30HC-HI: 63.4; S6520X-30QC-HI: 62.8; S6520X-54HF-HI: 60.8; S6520X-30HF-HI: 63.4 |
| MTTR(Hour) | 1 |
| VxLAN | VXLAN Layer 2 switching VXLAN routing switching VXLAN gateway Centralized VXLAN control through OpenFlow+Netconf |
