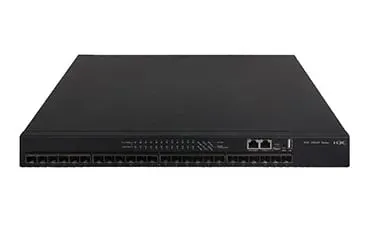

Cost-effective 10GE and multigigabit switches with expansion slots and UPoE options for high-bandwidth access.
Island-wide delivery to all 25 districts
| Models | S6520X-18C-SI, S6520X-26C-SI, S6520X-26MC-SI, S6520X-26MC-UPWR-SI, S6520X-26XC-UPWR-SI, S6520X-54XC-UPWR-SI |
|---|---|
| Port switching capacity | S6520X-18C-SI: 480Gbps; S6520X-26C-SI: 720Gbps; S6520X-26MC-SI: 400Gbps; S6520X-26MC-UPWR-SI: 400Gbps; S6520X-26XC-UPWR-SI: 640Gbps; S6520X-54XC-UPWR-SI: 1440Gbps |
| Packet forwarding rate | S6520X-18C-SI: 357Mpps; S6520X-26C-SI: 536Mpps; S6520X-26MC-SI: 240Mpps; S6520X-26MC-UPWR-SI: 240Mpps; S6520X-26XC-UPWR-SI: 240Mpps; S6520X-54XC-UPWR-SI: 600Mpps |
| Box switching capacity | 1.44Tbps |
| CPU | Dual-Core, 1.6GHz |
| Flash/SDRAM | 1GB/2GB |
| Buffer | 3M |
| Dimensions (W×D×H) | S6520X-18C-SI: 440×360× 43.6 mm; S6520X-26C-SI: 440×360× 43.6 mm; S6520X-26MC-SI: 440×360×43.6 mm; S6520X-26MC-UPWR-SI: 440×460×43.6 mm; S6520X-26XC-UPWR-SI: 440×460×43.6 mm; S6520X-54XC-UPWR-SI: 440×460×43.6 mm |
| Weight | S6520X-18C-SI: ≤4.1kg; S6520X-26C-SI: ≤4.2kg; S6520X-26MC-SI: ≤ 6.4 kg; S6520X-26MC-UPWR-SI: ≤8.7kg; S6520X-26XC-UPWR-SI: ≤ 8.8 kg; S6520X-54XC-UPWR-SI: ≤ 10.0 kg |
| Service ports | S6520X-18C-SI: 16×1/10GE SFP+ fiber ports; S6520X-26C-SI: 24×1/10GE SFP+ fiber ports; S6520X-26MC-SI: 24×100M/1G/2.5G/5GBase-T; S6520X-26MC-UPWR-SI: 24×100M/1G/2.5G/5GBase-T(UPOE); S6520X-26XC-UPWR-SI: 24×100M/1G/2.5G/ 5G/10G Base-T(UPOE); S6520X-54XC-UPWR-SI: 48×100M/1G/2.5G/ 5G/10G Base-T(UPOE) + 4×40G QSFP Plus |
| Console ports | 1 / 1 (rear panel) |
| Management Ethernet ports | 1 / 1 (rear panel) |
| USB ports | 1 / 1 (rear panel) |
| Expansion slots | 1 |
| Expansion modules | 2-port 10G SFP+ with MACSec Interface Module 2-port 10G BASE-T with MACSec Interface Module 2-Port 10G SFP Plus Ethernet Optical Interface Module 8-Port 10G SFP+ with MACSec Interface Module 4-Port 10/100/1000BASE-T Ethernet,6-Port SFP (2-Port Combo) Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module 2-port 25GE SFP28 interface module 2-port 40GE QSFP+ interface module |
| Fan Trays | S6520X-18C-SI: 2; S6520X-26C-SI: 2; S6520X-26MC-SI: 2; S6520X-26MC-UPWR-SI: 2; S6520X-26XC-UPWR-SI: 2; S6520X-54XC-UPWR-SI: 3 |
| Power Supply slots | 2 |
| Idle power consumption | S6520X-18C-SI: AC: 24W DC: 23W; S6520X-26C-SI: AC: 25W DC: 23W; S6520X-26MC-SI: AC:32W DC:31W; S6520X-26MC-UPWR-SI: AC: 45W DC: 46W; S6520X-26XC-UPWR-SI: AC: 69W DC: 73W; S6520X-54XC-UPWR-SI: AC: 100W DC: 85W |
| Max. power consumption | S6520X-18C-SI: AC: 96W DC: 97W; S6520X-26C-SI: AC: 110W DC: 113W; S6520X-26MC-SI: AC: 130W DC: 134W; S6520X-26MC-UPWR-SI: AC: 2428W DC: 960W; S6520X-26XC-UPWR-SI: AC: 2384W DC: 1047W; S6520X-54XC-UPWR-SI: AC: 2333W DC: 1039W |
| Input voltage range | AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz DC: -48V~-60V |
| Operating temperature | 0ºC to 45ºC (32°F to 113°F) -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
| Storage temperature | -40℃ to 70℃(-40℉ to 158℉) |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| MTBF(Year) | S6520X-18C-SI: 58.7; S6520X-26C-SI: 58.1; S6520X-26MC-SI: 83.6; S6520X-26MC-UPWR-SI: 83.6; S6520X-26XC-UPWR-SI: 58.1; S6520X-54XC-UPWR-SI: 58.1 |
| MTTR(Hour) | 1 |
| VLAN | VLAN ID range 0 to 4095(Total 4096) Access/Trunk/Hybrid VLAN Port-based VLAN MAC-based VLAN IP subnet-based VLAN protocol-based VLAN IEEE 802.1P(CoS priority) Super VLAN Private VLAN Voice VLAN QinQ(802.1Q-in-802.1Q) and flexible QinQ VLAN mapping Static/Dynamic/Blackhole/Multiport unicast MAC MAC automatic learning and aging port-based/VLAN-based MAC learning limit MAC filter Port isolation IEEE 802.3x flow control (full duplex) Storm suppression based on port rate percentage PPS-based storm suppression BPS-based storm suppression Loop detection(VLAN and VXLAN network) MVRP(Multiple VLAN Regi |
| Ethernet Configuration | Static aggregation Dynamic aggregation S-MLAG(Simple multichassis link aggregation) 10GE/25G/40GE port aggregation LACP(Link Aggregation Control Protocol) M-LAG(Multichassis Link Aggregation) AutoMDIX Speed Auto/Manual Duplex Auto/Full/Half |
| IP Services | Static/Dynamic/Gratuitous/proxy ARP ARP snooping/fast-reply/direct route advertisement/ping ARP attack detection ARP source suppression Ping, Tracert DHCP(Dynamic Host Configuration Protocol) DHCP Server/relay agent/client/snooping DHCP Option 43, Option 82, and Option 184, DNS(Domain Name System) DDNS(Dynamic Domain Name System) mDNS(Multicast Domain Name System) IRDP(ICMP Router Discovery Protocol) UDP helper ND(Neighbor Discovery) ND snooping/proxy/direct route advertisement/ping DHCPv6 Server/relay agent/client/snooping/guard GRE(Generic Routing Encapsulation) HTTP redirect GRE tunneling V |
