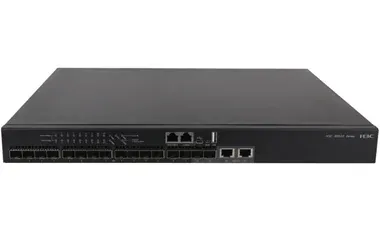

All-10GE Layer 3 switches for SMB cores, with 10GBase-T combo ports, IRF2 and OSPF/BGP/IS-IS routing.
Island-wide delivery to all 25 districts
| Models | S6520X-16ST-SI, S6520X-24ST-SI, S6520X-10XT-SI, S6520X-16XT-SI |
|---|---|
| Port switching capacity | S6520X-16ST-SI: 320Gbps; S6520X-24ST-SI: 480Gbps; S6520X-10XT-SI: 200Gbps; S6520X-16XT-SI: 320Gbps |
| Packet forwarding rate | S6520X-16ST-SI: 240Mpps; S6520X-24ST-SI: 357Mpps; S6520X-10XT-SI: 240Mpps; S6520X-16XT-SI: 240Mpps |
| Box switching capacity | 1.44Tbps |
| CPU | Dual-Core, 1.6GHz |
| Flash/SDRAM | 1GB/2GB |
| Buffer | 3M |
| Dimensions (W×D×H) | S6520X-16ST-SI: 440×360× 43.6 mm; S6520X-24ST-SI: 440×360× 43.6 mm; S6520X-10XT-SI: 440×260× 43.6mm; S6520X-16XT-SI: 440×260×43.6 mm |
| Weight | S6520X-16ST-SI: ≤3.9kg; S6520X-24ST-SI: ≤4.0kg; S6520X-10XT-SI: ≤3.4kg; S6520X-16XT-SI: ≤3.4kg |
| Service ports | S6520X-16ST-SI: 16×1/10G SFP+ ports (2 Combo 1G/10G Base-T ports); S6520X-24ST-SI: 24×1/10G SFP+ ports (2 Combo 1G/10G Base-T ports); S6520X-10XT-SI: 8×1G/2.5G/5G/10G Base-T Multi-giga ports + 2×1/10G SFP Plus; S6520X-16XT-SI: 14× 1G/2.5G/5G/10G Base-T Multi-giga ports+ 2×1/10G SFP Plus |
| Console ports | 1 |
| Management Ethernet ports | 1 |
| USB ports | 1 |
| Expansion slots | N/A |
| Power Supply slots | S6520X-16ST-SI: 2; S6520X-24ST-SI: 2; S6520X-10XT-SI: N/A; S6520X-16XT-SI: N/A |
| Idle power consumption | S6520X-16ST-SI: AC: 26W DC: 21W; S6520X-24ST-SI: AC: 26W DC: 25W; S6520X-10XT-SI: AC: 17.5W; S6520X-16XT-SI: AC: 22.1W |
| Max. power consumption | S6520X-16ST-SI: AC: 57W DC: 58W; S6520X-24ST-SI: AC: 70W DC: 72W; S6520X-10XT-SI: AC: 34.5W; S6520X-16XT-SI: AC: 48.3W |
| Input voltage range | AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz DC: -48V~-60V |
| Operating temperature | 0ºC to 45ºC (32°F to 113°F) -60m - 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
| Storage temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| MTBF(Year) | S6520X-16ST-SI: 60.3; S6520X-24ST-SI: 89.5; S6520X-10XT-SI: 58.1; S6520X-16XT-SI: 58.1 |
| MTTR(Hour) | 1 |
| Virtualization | Intelligent Resilient Framework 2 (IRF2) Distributed device management Distributed link aggregation Distributed resilient routing Stacking through standard Ethernet ports Local device stacking and remote device stacking LACP-, BFD-, and ARP-based multi-active detection (MAD) |
| Jumbo frame | Supported |
| MAC address table | Static MAC address Blackhole MAC address MAC learning limit |
| OpenFlow | OpenFlow 1.3 |
| VxLAN | VXLAN L2 switching VXLAN L3 routing VXLAN VTEP IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane OpenFlow+Netconf centralized control plane |
