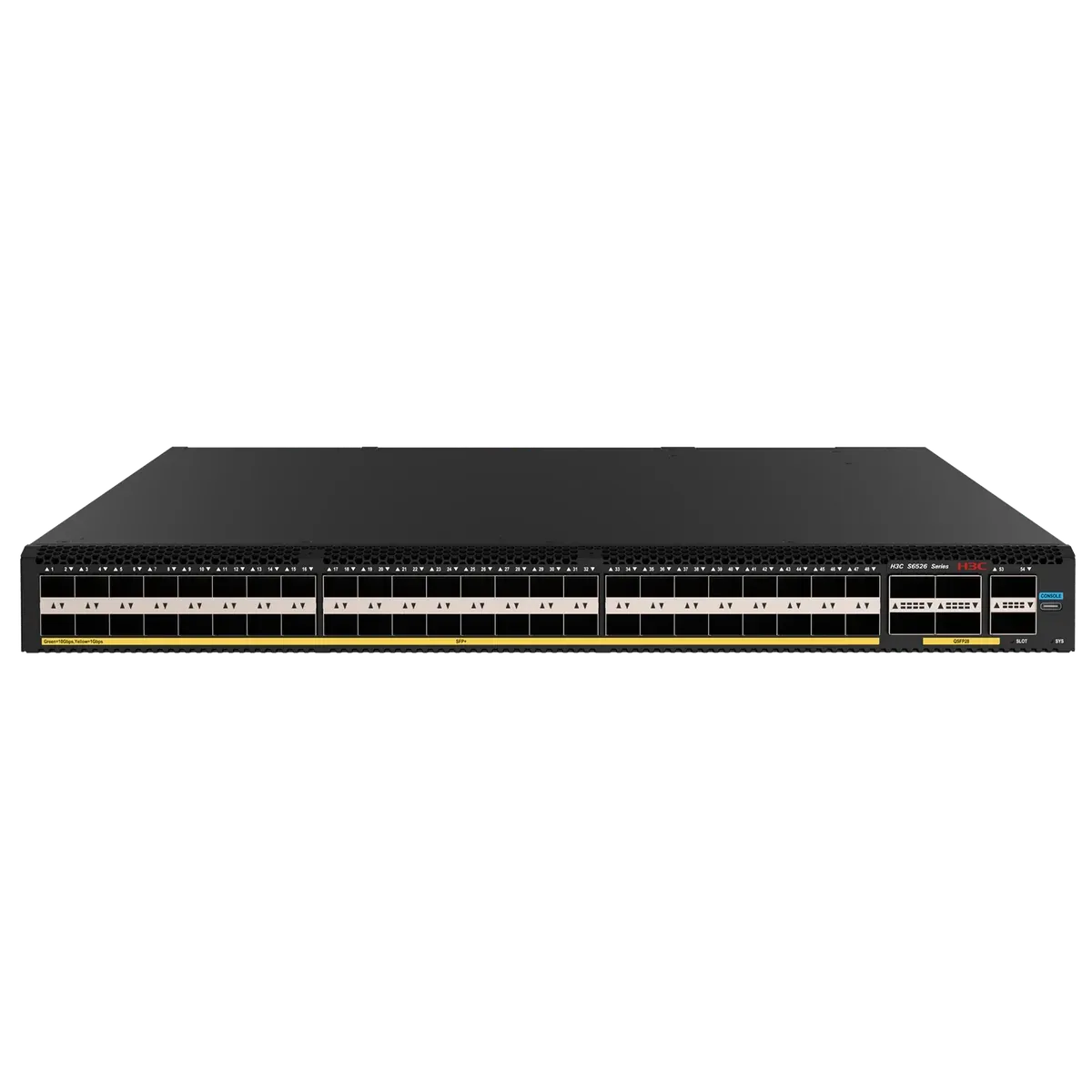

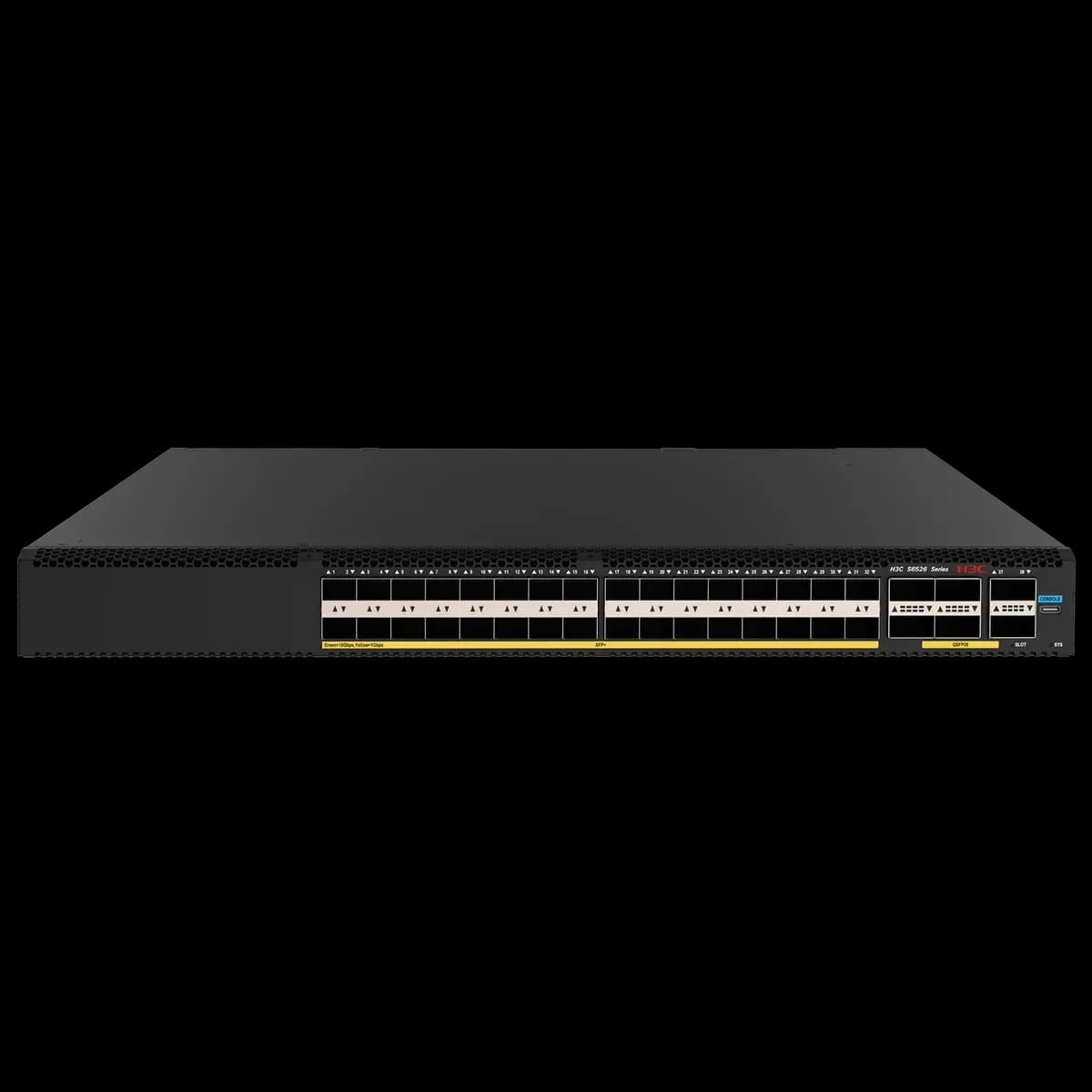

H3C S6526XE-HI Series Advanced Aggregation 10GE Switches

Model: S6526XE-HISeries: S6526

10GE aggregation switches with six 100G uplinks and an expansion slot for large campus cores.

32 or 48 x 1/10G SFP+ and 6 x 40/100G QSFP28
One expansion slot
2.56 Tbps switching, 32 MB buffer
Embedded AC and OAA modules
IRF2 stacking

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	S6526XE-32X6CC-HI, S6526XE-48X6CC-HI
Port switching capacity	S6526XE-32X6CC-HI: 2240Gbps; S6526XE-48X6CC-HI: 2560Gbps
Packet forwarding rate	1002Mpps
System switching capacity	2.56Tbps
CPU	Quad core, 2GHz
SDRAM	4GB
Flash	4GB
Packet buffer	32M
Latency	10GE:<3 (64byte/us) 100GE:<1 (64byte/us)
Dimensions (H × W × D)	44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in)
Weight	S6526XE-32X6CC-HI: ≤ 7.9 kg; S6526XE-48X6CC-HI: ≤ 8.1 kg
Console ports	1 RJ45 and 1 Type-C
Management Ethernet ports	1 RJ45 port (Out of Band)
USB ports	1
SFP+	S6526XE-32X6CC-HI: 32; S6526XE-48X6CC-HI: 48
QSFP28	6
Latency (64byte LIFO)	10GE:<3μs 100GE:<1μs
Expansion slots	1
Input voltage range	AC: Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz
Power supply slots	2, 1+1 hot swappable
Fan trays	4, N+1 hot swappable
Power consumption (static) Data collection standard: no load	S6526XE-32X6CC-HI: Single AC: 89W Dual AC: 90W Single DC: 86W Dual DC: 98W; S6526XE-48X6CC-HI: Single AC: 85W Dual AC: 89W Single DC: 83W Dual DC: 96W
Power consumption (with typical configuration) Data collection standard: fully c	S6526XE-32X6CC-HI: Single AC: 117W Dual AC: 125W Single DC: 123W Dual DC: 126W; S6526XE-48X6CC-HI: Single AC: 118W Dual AC: 129W Single DC: 124W Dual DC: 131W
Power consumption (fully configured) Data collection standard: fully configured	S6526XE-32X6CC-HI: Single AC: 237W Dual AC: 242W Single DC: 249W Dual DC: 256W; S6526XE-48X6CC-HI: Single AC: 251W Dual AC: 255W Single DC: 262W Dual DC: 265W
MTBF(Year)	S6526XE-32X6CC-HI: 116.18; S6526XE-48X6CC-HI: 110.03
MTTR(Hour)	1
Operating temperature	-5ºC to 45ºC (23ºF to 113ºF) From -60m to 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33ºC for every time 100 the altitude increases by 100m.
Storage temperature	-40ºC to 70ºC (-40ºF to 158ºF)
