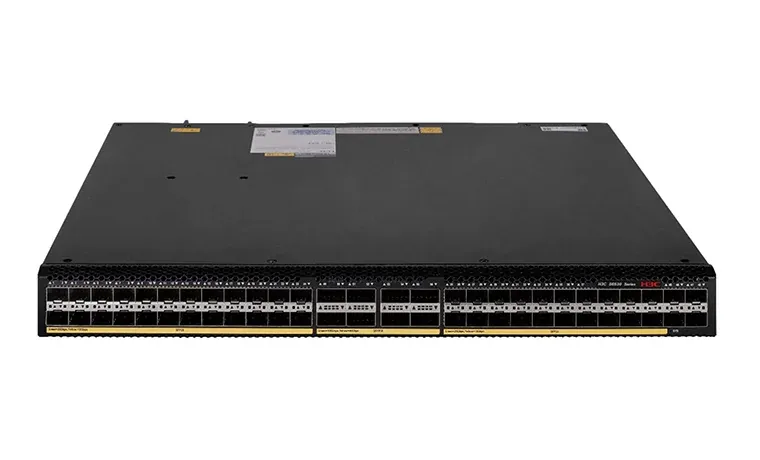

Fixed 25GE aggregation switches with eight 100G uplinks for high-bandwidth campus and server access.
Island-wide delivery to all 25 districts
| Models | S6530X-24Y8C, S6530X-48Y8C |
|---|---|
| Port switching capacity | S6530X-24Y8C: 2.8Tbps; S6530X-48Y8C: 4Tbps |
| Packet forwarding rate | S6530X-24Y8C: 1920Mpps; S6530X-48Y8C: 2800Mpps |
| Box switching capacity | 4.8Tbps |
| CPU | Quad core, 2GHz |
| SDRAM | 4GB |
| Flash | 4GB |
| Packet buffer | 36M |
| Latency | 25GE:<3 (64byte/us) 100GE:<1.2 (64byte/us) |
| Dimensions (H × W × D) | 44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in) |
| Weight | S6530X-24Y8C: ≤ 7.3 kg; S6530X-48Y8C: ≤ 7.6 kg |
| Console ports | 1 RJ45 |
| Management Ethernet ports | 1 RJ45 (Out of Band) |
| USB ports | 1 |
| SFP28 (GE/10G/25G) | S6530X-24Y8C: 24; S6530X-48Y8C: 48 |
| QSFP28 (40G/100G) | 8 |
| Power supply slots | 2 |
| Fan trays | 5 hot swappable fan trays, invertible airflow |
| Input voltage range | AC: Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max.: 90 VAC to 264 VAC @ 47 Hz to 63 Hz |
| MTBF(Year) | S6530X-24Y8C: 61.04; S6530X-48Y8C: 58.44 |
| MTTR(Hour) | 1 |
| Power consumption | MIN: Single Power Input: 76W; Dual Power Input: 83W. |
| MAX: Single Power Input: 188W; Dual Power Input: 193W. | MAX: Single Power Input: 223W; Dual Power Input: 227W. |
| Operating temperature | -5ºC to 45ºC (23ºF to 113ºF) -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33 ºC for every time 100 the altitude increases by 100m. |
| Storage temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| VLAN | VLAN ID range 0 to 4095(Total 4096, 0 and 4095 are reserved) Access/Trunk/Hybrid VLAN Port-based VLAN MAC-based VLAN IP subnet-based VLAN Protocol-based VLAN IEEE 802.1P(CoS priority) Super VLAN Private VLAN Voice VLAN QinQ (802.1Q-in-802.1Q) VLAN mapping Static/Dynamic/Blackhole/Multiport unicast MAC MAC automatic learning and aging Port-based/VLAN-based MAC learning limit MAC filter Port isolation Loop detection (VLAN and VXLAN network) MVRP (Multiple VLAN Registration Protocol) GVRP (Generic VLAN Registration Protocol) STP (Spanning tree protocol) RSTP (Rapid Spanning Tree Protocol) MSTP (M |
| Ethernet configuration | Static aggregation Dynamic aggregation 10GE/25G/40GE/100GE port aggregation LACP (Link Aggregation Control Protocol) S-MLAG M-LAG (Multichassis Link Aggregation) AutoMDIX Duplex Auto/Full/Half |
