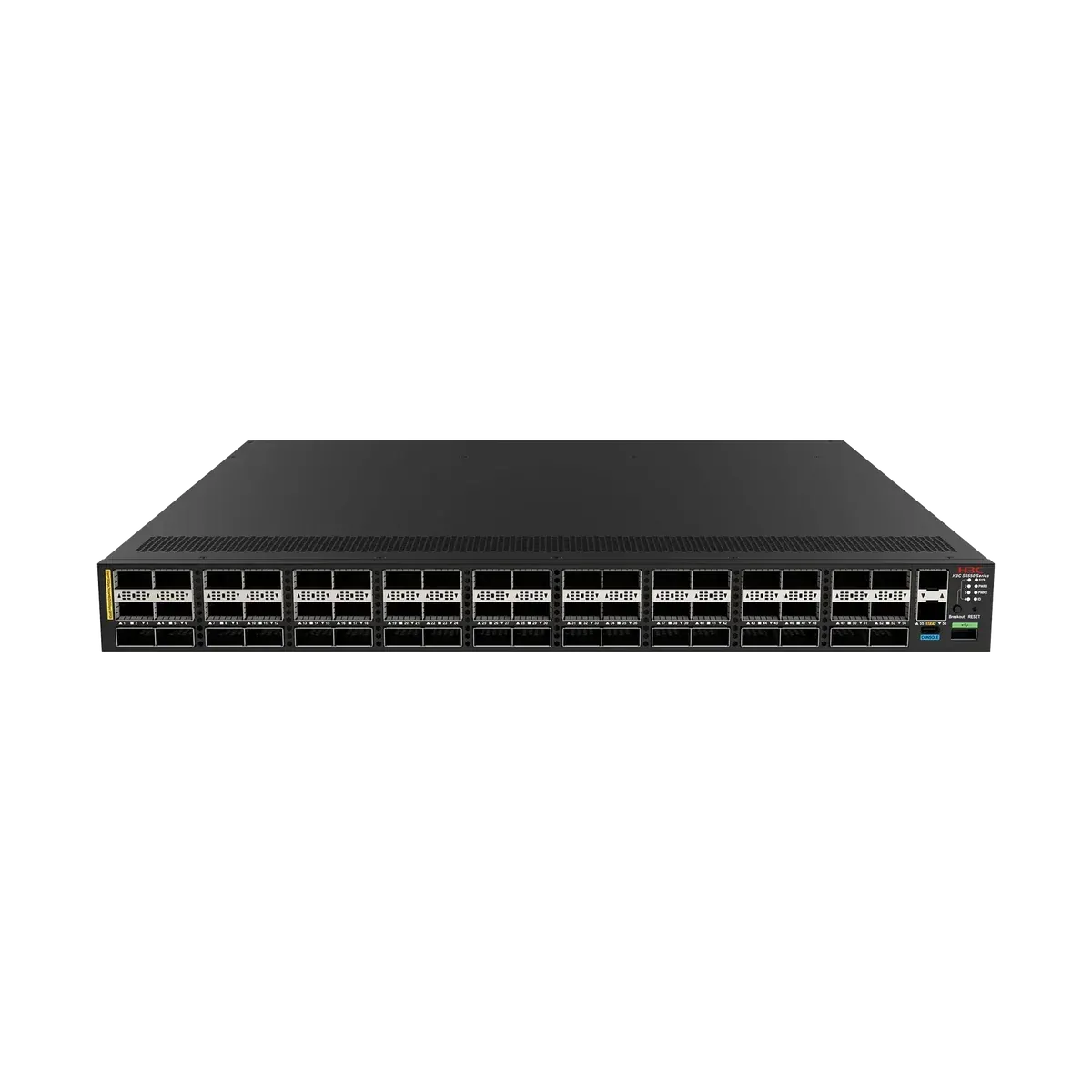

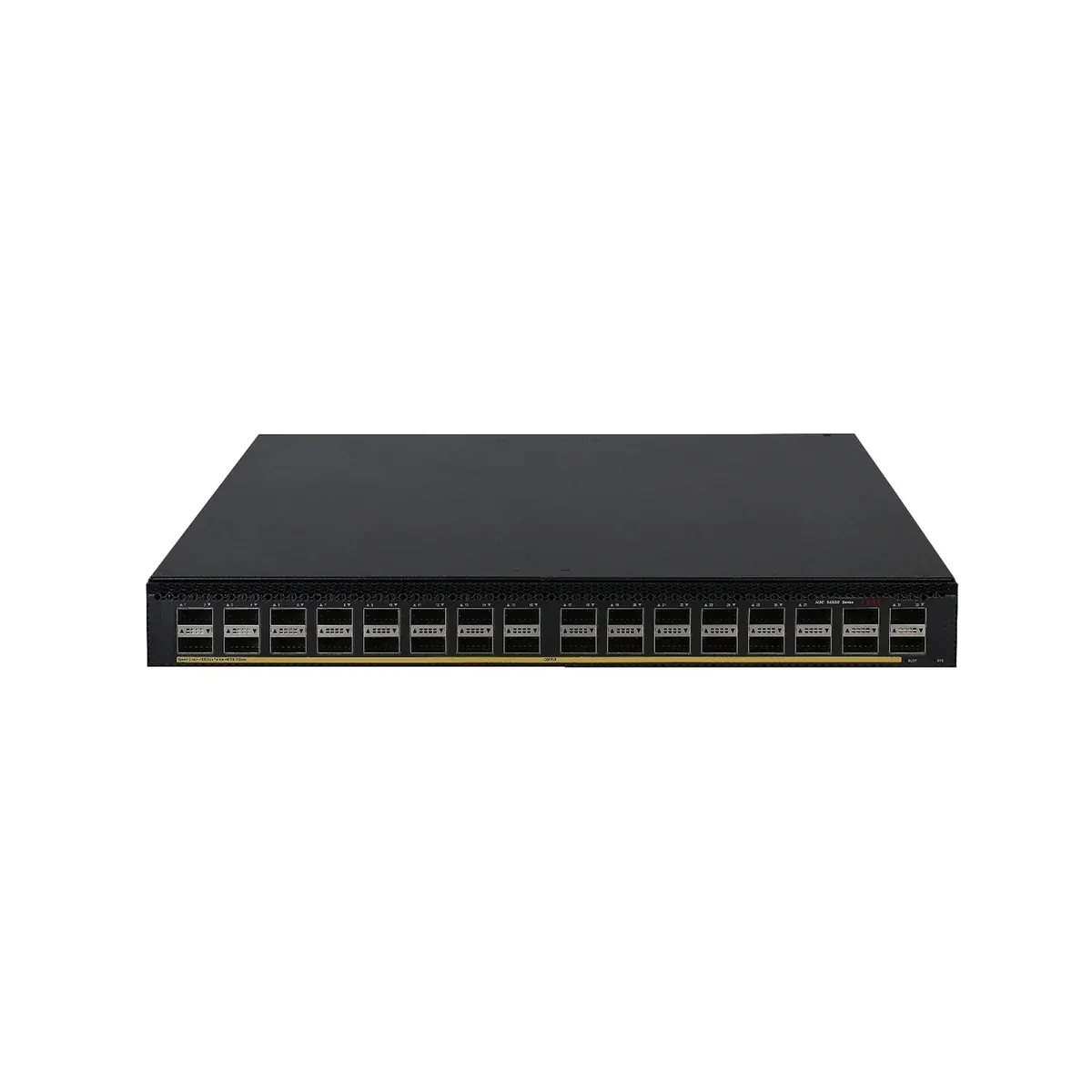

Programmable high-density 25G/40G/100G switches for data-centre and cloud networks, with up to 10.8 Tbps capacity.
Island-wide delivery to all 25 districts
| Models | S6550X-32H-HI, S6550X-32Q-HI, S6550X-56HF-HI, S6550X-54H-HI |
|---|---|
| SFP28 port | S6550X-32H-HI: -; S6550X-32Q-HI: -; S6550X-56HF-HI: 48; S6550X-54H-HI: - |
| QSFP28 port | S6550X-32H-HI: 32; S6550X-32Q-HI: 4; S6550X-56HF-HI: 8; S6550X-54H-HI: 54 |
| QSFP+ port | S6550X-32H-HI: -; S6550X-32Q-HI: 28; S6550X-56HF-HI: -; S6550X-54H-HI: - |
| Port switching capacity | S6550X-32H-HI: 6.4T; S6550X-32Q-HI: 3.04T; S6550X-56HF-HI: 4.0T; S6550X-54H-HI: 10.8T |
| Packet forwarding rate | S6550X-32H-HI: 2800Mpps; S6550X-32Q-HI: 2262Mpps; S6550X-56HF-HI: 2800Mpps; S6550X-54H-HI: 5600Mpps |
| Weight (full loaded) | ≤ 9kg |
| Dimensions (H × W × D) | 43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in) / 43.6 × 460 × 440 mm (1.72 × 18.1 × 17.32 in) |
| CPU cores | 4 |
| CPU frequency | 2.0GHz |
| Packet buffer | 24M |
| Flash/SDRAM | 4GB/8GB |
| Serial console port | 1 |
| Out-of-band management port | 1 × 10/100/1000Base-T |
| USB port | 1 |
| Expansion slot | 1 / - |
| AC-input voltage | 100V to 240V |
| DC-input voltage | 48V to 64V / - |
| Power consumption (static) | S6550X-32H-HI: Single AC: 81.54W Single DC: 82.56W Dual AC: 92.53W Dual DC: 90.28W; S6550X-32Q-HI: Single AC: 81.54W Single DC: 82.56W Dual AC: 92.53W Dual DC: 90.28W; S6550X-56HF-HI: Single AC: 67.72W Single DC: 68.39W Dual AC: 77.86W Dual DC: 75.09W; S6550X-54H-HI: Single AC: 164W Dual AC: 167W |
| Power consumption (at full load) | S6550X-32H-HI: Single AC: 390.5W Single DC: 410.1W Dual AC: 386.3W Dual DC: 404.2W; S6550X-32Q-HI: Single AC: 325.7W Single DC: 334.1W Dual AC: 323.3W Dual DC: 339.8W; S6550X-56HF-HI: Single AC: 315.4W Single DC: 324.5W Dual AC: 313.5W Dual DC: 328W; S6550X-54H-HI: Single AC: 597W Dual AC: 638W |
| Power module slot | 2 |
| Fan tray slot | 4 / 6 |
| Air flow direction | From front to back |
| Operating temperature | -5~45°C / 0~45°C |
| Operating humidity | 5%～95% |
| Forwarding mode | Store-forward modes |
| Virtualization | Intelligent Resilient Framework 2 (IRF2) (fast convergence within 50ms) Distributed device management Distributed link aggregation Distributed resilient routing Stacking through standard Ethernet ports Local device stacking and remote device stacking |
| Link aggregation | 40GE/100GE port aggregation Static aggregation, dynamic aggregation |
