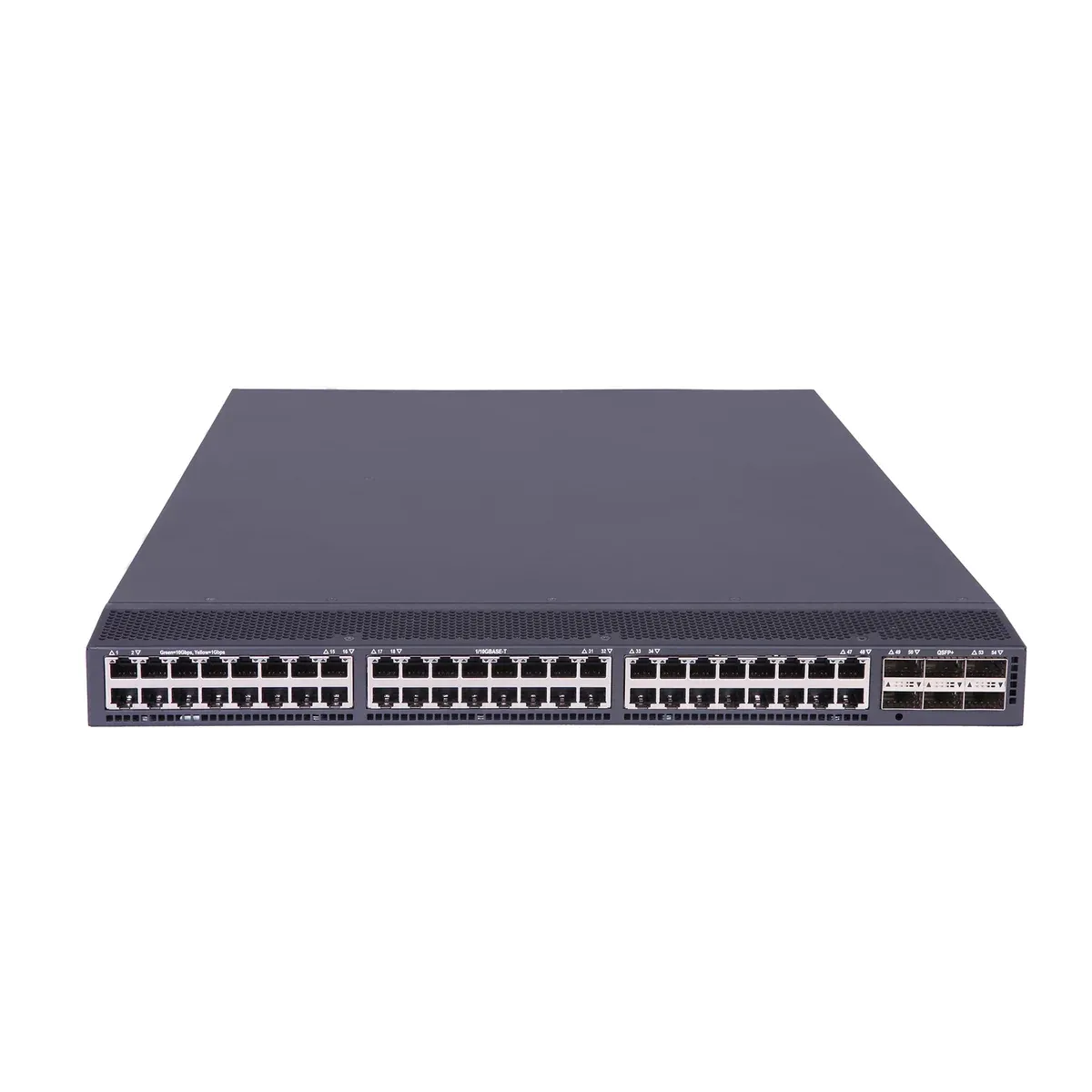

Compact cloud-ready 10G/40G/100G data-centre switches for ToR access and aggregation, with VXLAN, EVPN and RoCE.
Island-wide delivery to all 25 districts
| Models | S6800-54QT, S6800-32Q, S6800-2C, S6800-4C |
|---|---|
| Dimensions (H × W × D) | S6800-54QT: 44×440×460mm 1.73×17.32×18.11in; S6800-32Q: 43.6×440×660mm 1.72×17.32×18.11in; S6800-2C: 44.2×440×660mm 1.74×17.32×18.11in; S6800-4C: 88.1×440×660mm 3.4×17.32×18.11in |
| Weight | S6800-54QT: ≤13kg (28.66 lb); S6800-32Q: ≤13kg (28.66 lb); S6800-2C: ≤16Kg (35.27 lb); S6800-4C: ≤27Kg (59.52 lb) |
| Serial console port | 1 |
| Out-of-band management port | One GE copper port and one GE fiber port |
| Mini USB console port | 1 |
| USB port | 1 |
| QSFP+ port | S6800-54QT: 6; S6800-32Q: 32; S6800-2C: 2; S6800-4C: - |
| SFP port | - |
| 1/10GBASE-T port | S6800-54QT: 48; S6800-32Q: -; S6800-2C: -; S6800-4C: - |
| Expansion slot | S6800-54QT: -; S6800-32Q: -; S6800-2C: 2; S6800-4C: 4 |
| CPU | 1GHz@2Core |
| Flash/SDRAM | 1GB/4GB |
| Latency | <1μs |
| Switching capacity | S6800-54QT: 1.44Tbps; S6800-32Q: 2.56Tbps; S6800-2C: 1.44Tbps; S6800-4C: 2.56Tbps |
| Forwarding capacity | S6800-54QT: 1080Mpps; S6800-32Q: 1440Mpps; S6800-2C: 1080Mpps; S6800-4C: 1440Mpps |
| Buffer(byte) | 16M |
| Related voltage range | 100V to 240V AC, 50/60Hz Maximum voltage range: 90V to 290V AC, |
| DC-input voltage | Related voltage range: -38.4V to -72V DC |
| Power module slot | S6800-54QT: 2; S6800-32Q: 2; S6800-2C: 2; S6800-4C: 4 |
| Fan tray slot | Five hot-swappable fan / Two hot-swappable fan |
| Air flow direction | From front to rear or from rear to front |
| Static power consumption | S6800-54QT: Single AC：103W Dual AC：109W Single DC：107W Dual DC：113W; S6800-32Q: Single AC: 132W Dual AC: 145W Single DC: 128W Dual DC: 142W; S6800-2C: Single AC: 95W Dual AC: 110W Single DC: 91W Dual DC: 105W; S6800-4C: Dual AC: 135W Three AC: 150W Four AC: 165W Dual DC: 131W Three DC: 145W Four DC: 155W |
| Typical power consumption | S6800-54QT: Single AC：103W Dual AC：109W Single DC：107W Dual DC：113W; S6800-32Q: Single AC: 291W Dual AC: 301W Single DC: 291W Dual DC: 299W; S6800-2C: Single AC:439W Dual AC: 450W Single DC：443W Dual DC: 445W; S6800-4C: Dual AC: 827W Three AC: 837W Four AC: 856W Dual DC: 823W Three DC: 825W Four DC: 828W |
| Maximum heat consumption (BTU/hour) | S6800-54QT: Single AC：351W Dual AC：372W Single DC：365W Dual DC：385W; S6800-32Q: Single AC: 993W Dual AC: 1027W Single DC: 993W Dual DC: 1020W; S6800-2C: Single AC:1498W Dual AC:1535W Single DC：1511W Dual DC: 1518W; S6800-4C: Dual AC: 2822W Three AC: 2856W Four AC: 2920W Dual DC: 2808W Three DC: 2815W Four DC: 2825W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 5% to 95%, noncondensing |
| MTBF(year) | S6800-54QT: 46.93; S6800-32Q: 41.1; S6800-2C: 47.2; S6800-4C: 45.96 |
