Price on Request

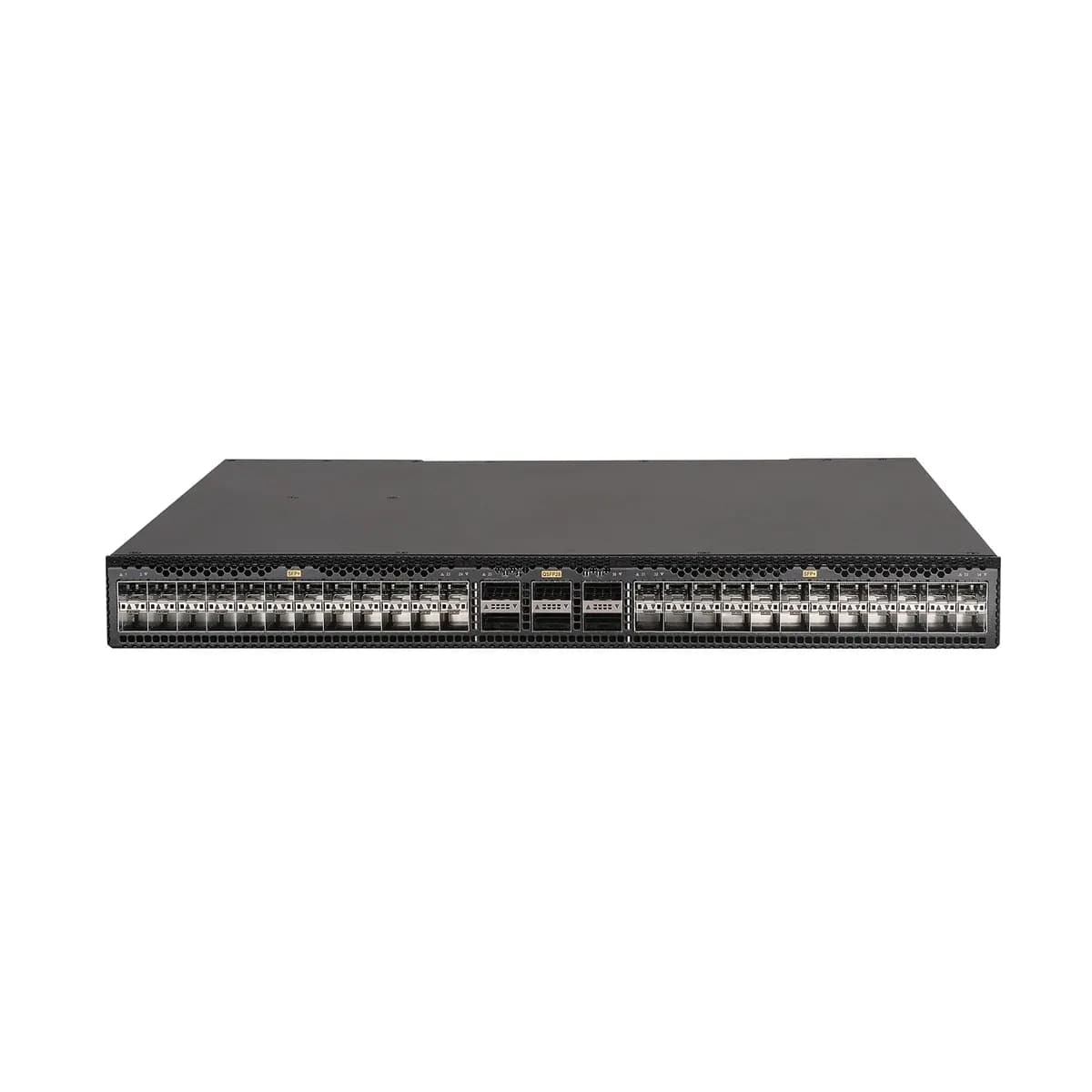

High-density 10GE ToR switches with six 40/100G uplinks, real-time buffer visibility and lossless RoCE.
Island-wide delivery to all 25 districts
| Models | S6805-54HF, S6805-54HT |
|---|---|
| PID | S6805-54HF: LS-6805-54HF-H2; S6805-54HT: LS-6805-54HT-H2 |
| Dimensions (H × W × D) | S6805-54HF: 44× 440 × 400 mm (1.74×17.32×15.74 in); S6805-54HT: 44 × 440 × 460 mm (1.74×17.32×18.11 in) |
| Weight | ≤ 10 kg (22.04 lb) |
| Serial console port | 1 |
| Out-of-band management port | One GE copper port and one GE fiber port |
| Mini USB console port | 1 |
| USB port | 1 |
| 100G QSFP28/40G QSFP+ port | 6 |
| 10G SFP+/ 1G SFP port | S6805-54HF: 48; S6805-54HT: N/A |
| 1G/10G Base-T port | S6805-54HF: N/A; S6805-54HT: 48 |
| CPU | S6805-54HF: LS-6805-54HF: C2000,2.4 GHz@4 Cores LS-6805-54HF-H2: C3000,2.2GHz@4Core; S6805-54HT: LS-6805-54HT:C2000, 2.4 GHz@4 Cores LS-6805-54HT-H2: C3000,2.2GHz@4Core |
| Flash/ SDRAM | 4G/8G |
| Latency | < 800 ns (64 byte) |
| Switching capacity | 2.16 Tbps |
| Forwarding capacity | 1001.7 Mpps |
| Buffer | 32M |
| AC-input voltage | 90v AC to 290v AC |
| DC-input voltage | –36v DC to –72v DC |
| Power module slot | 2 |

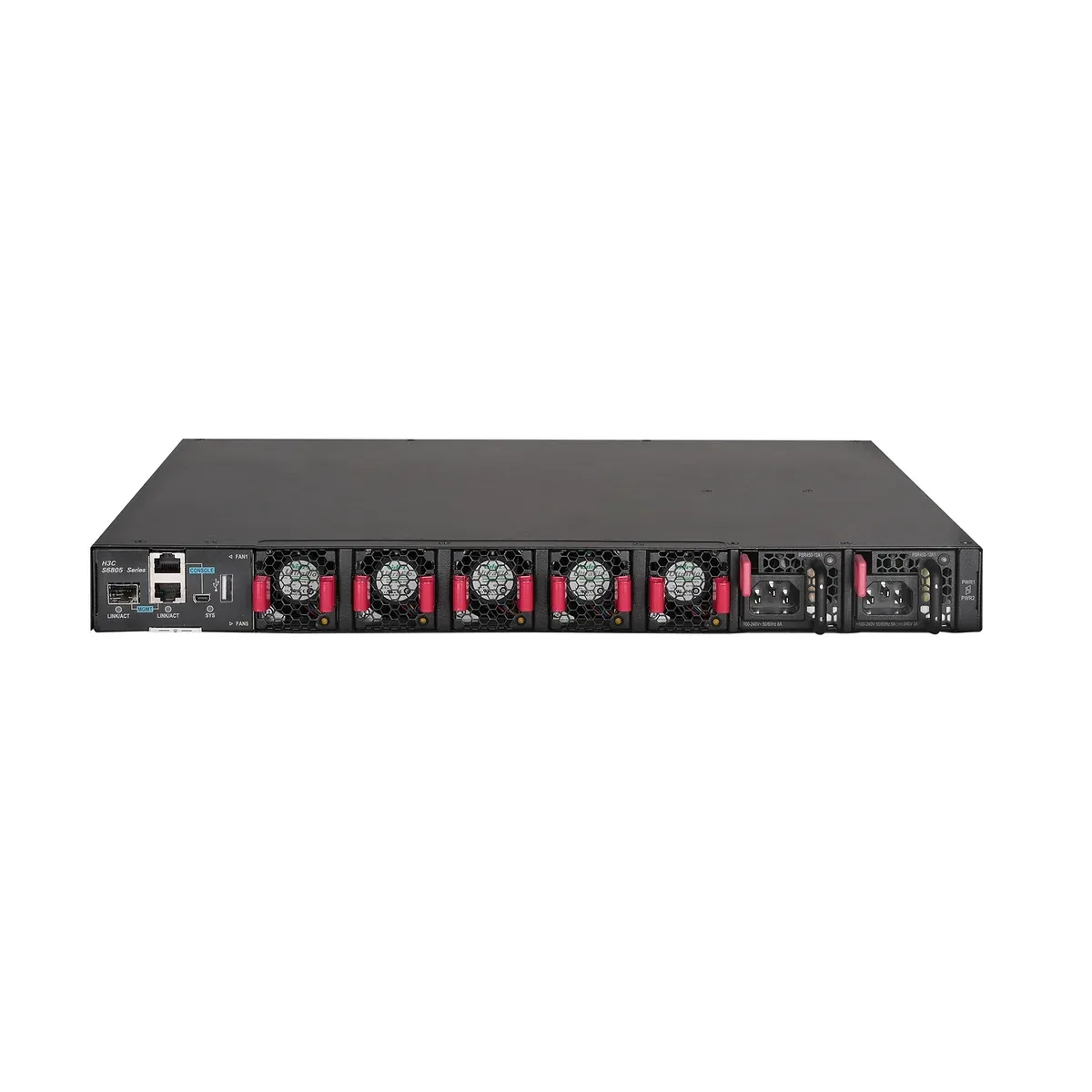

| Fan tray slot | 5 Hot-swappable fan, fan speed adjustable and wind invertible. (3+2 redundancy) |
| Air flow direction | From front to rear or from rear to front |
| Typical power consumption | S6805-54HF: PSR250-12A/PSR250-12A1: · Single AC input: 120 W · Dual AC inputs: 127 W PSR450-12A/PSR450-12A1: · Single AC input: 120 W · Dual AC inputs: 127 W PSR450-12D: · Single DC input: 130 W · Dual DC inputs: 135 W; S6805-54HT: PSR450-12A/PSR450-12A1: · Single AC input: 174 W · Dual AC inputs: 181 W PSR450-12D: · Single DC input: 177 W · Dual DC inputs: 188 W |
| Maximum power consumption | S6805-54HF: PSR250-12A/PSR250-12A1: · Single AC input: 208 W · Dual AC inputs: 213 W PSR450-12A/PSR450-12A1: · Single AC input: 208 W · Dual AC inputs: 213 W PSR450-12AHD: · Single DC input: 202 W · Dual DC inputs: 214 W PSR450-12D: · Single DC input: 207 W · Dual DC inputs: 217 W; S6805-54HT: PSR450-12A/PSR450-12A1: · Single AC input: 222 W · Dual AC inputs: 229 W PSR450-12AHD: · Single DC input: 225 W · Dual DC inputs: 233 W PSR450-12D: · Single DC input: 230 W · Dual DC inputs: 236 W |
| MTBF(years) | 35.4 |
| MTTR(hours) | 1 |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity (noncondensing) | 5% RH to 95% RH, noncondensing |
