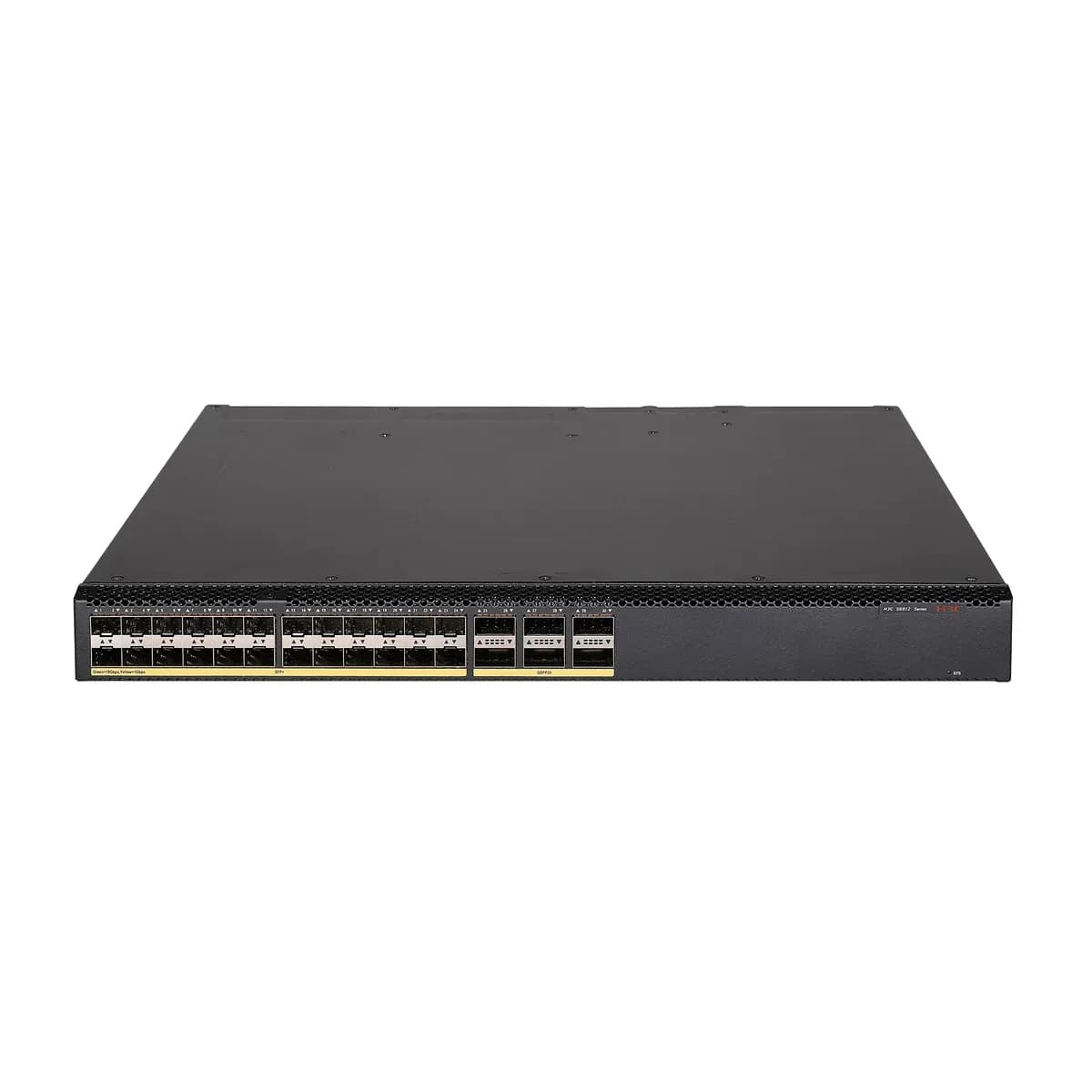

H3C S681X Series Data Center Switches

Model: S6812/S6813Series: S681X

Programmable 10GE ToR switches with six 100G uplinks, available in 24 or 48-port versions.

24 or 48 x 1/10G SFP+ and 6 x 40/100G QSFP28
Programmable forwarding chips for new features via software
IRF2, DRNI and RoCE
SDN-ready

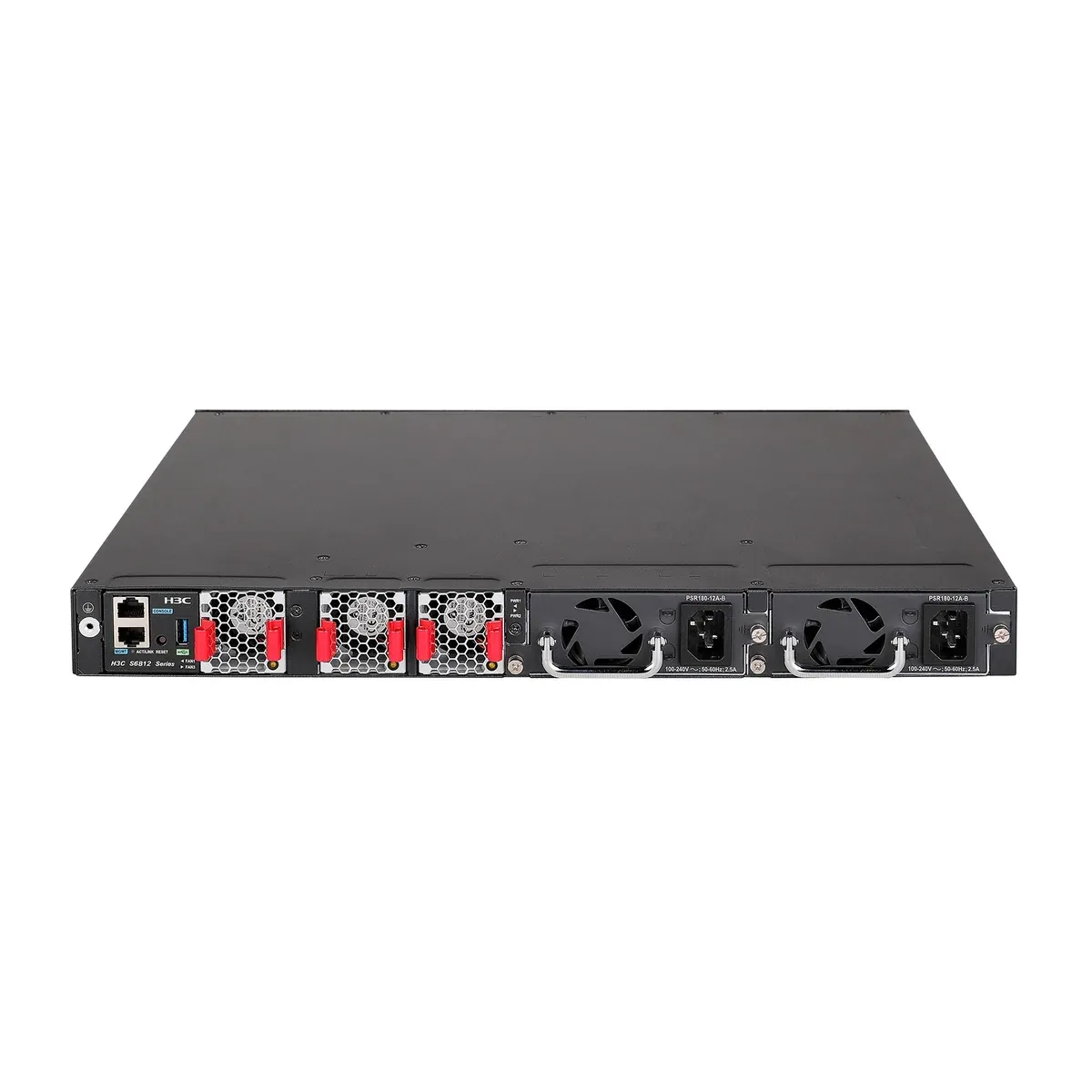

Modular PSUs and fans

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	S6812-24X6C, S6812-48X6C, S6813-24X6C, S6813-48X6C
Dimensions (H × W × D)	44 × 440 × 360 mm (1.72 × 17.32 × 14.17 in)
Weight	S6812-24X6C: ≤ 5.5 kg (12.13 lb); S6812-48X6C: ≤ 6 kg (13.23 lb); S6813-24X6C: ≤ 6 kg (13.23 lb); S6813-48X6C: ≤ 6.5 kg (14.34 lb)
Serial console port	1
Out-of-band management port	1
SFP+ /SFP port	S6812-24X6C: 24; S6812-48X6C: 48; S6813-24X6C: 24; S6813-48X6C: 48
QSFP28/QSFP+ port	6
CPU	2000MHz@4Core
Flash/SDRAM	1GB/4GB
Latency	<1μs
Switching capacity	S6812-24X6C: 1680Gbps; S6812-48X6C: 2160Gbps; S6813-24X6C: 1680Gbps; S6813-48X6C: 2160Gbps
Forwarding capacity	S6812-24X6C: 600Mpps; S6812-48X6C: 600Mpps; S6813-24X6C: 705Mpps; S6813-48X6C: 1050Mpps
Buffer	S6812-24X6C: 10M; S6812-48X6C: 10M; S6813-24X6C: 12M; S6813-48X6C: 12M
AC-input voltage	90v AC to 264v AC
DC-input voltage	-36v DC to -72v DC
Power module slot	2
Fan tray slot	3 Hot-swappable fans, fan speed adjustable and wind invertible
Air flow direction	S6812-24X6C: Front to rear or rear to front; S6812-48X6C: Air flow direction; S6813-24X6C: Front to rear or rear to front; S6813-48X6C: Air flow direction
Minimum power consumption	S6812-24X6C: Single AC：29W Dual AC：35W; S6812-48X6C: Single AC：29W Dual AC：36W; S6813-24X6C: Single AC：38W Dual AC：46W; S6813-48X6C: Single AC：36W Dual AC：44W
Maximum power consumption	S6812-24X6C: Single AC：131W Dual AC：134W; S6812-48X6C: Single AC：162W Dual AC：163W; S6813-24X6C: Single AC：143W Dual AC：145W; S6813-48X6C: Single AC：176W Dual AC：177W
Maximum heat consumption (BTU/hour)	S6812-24X6C: Single AC：447 Dual AC：457; S6812-48X6C: Single AC：556 Dual AC：553; S6813-24X6C: Single AC：488 Dual AC：495; S6813-48X6C: Single AC：263 Dual AC：601
MTBF(years)	S6812-24X6C: 63.4; S6812-48X6C: 60.8; S6813-24X6C: 63.4; S6813-48X6C: 60.8
MTTR(hour)	1
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating humidity (noncondensing)	5% to 95%
Device virtualization	IRF2.0
Network virtualization	BGP-EVPN
VXLAN	L2 VxLAN gateway
