H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

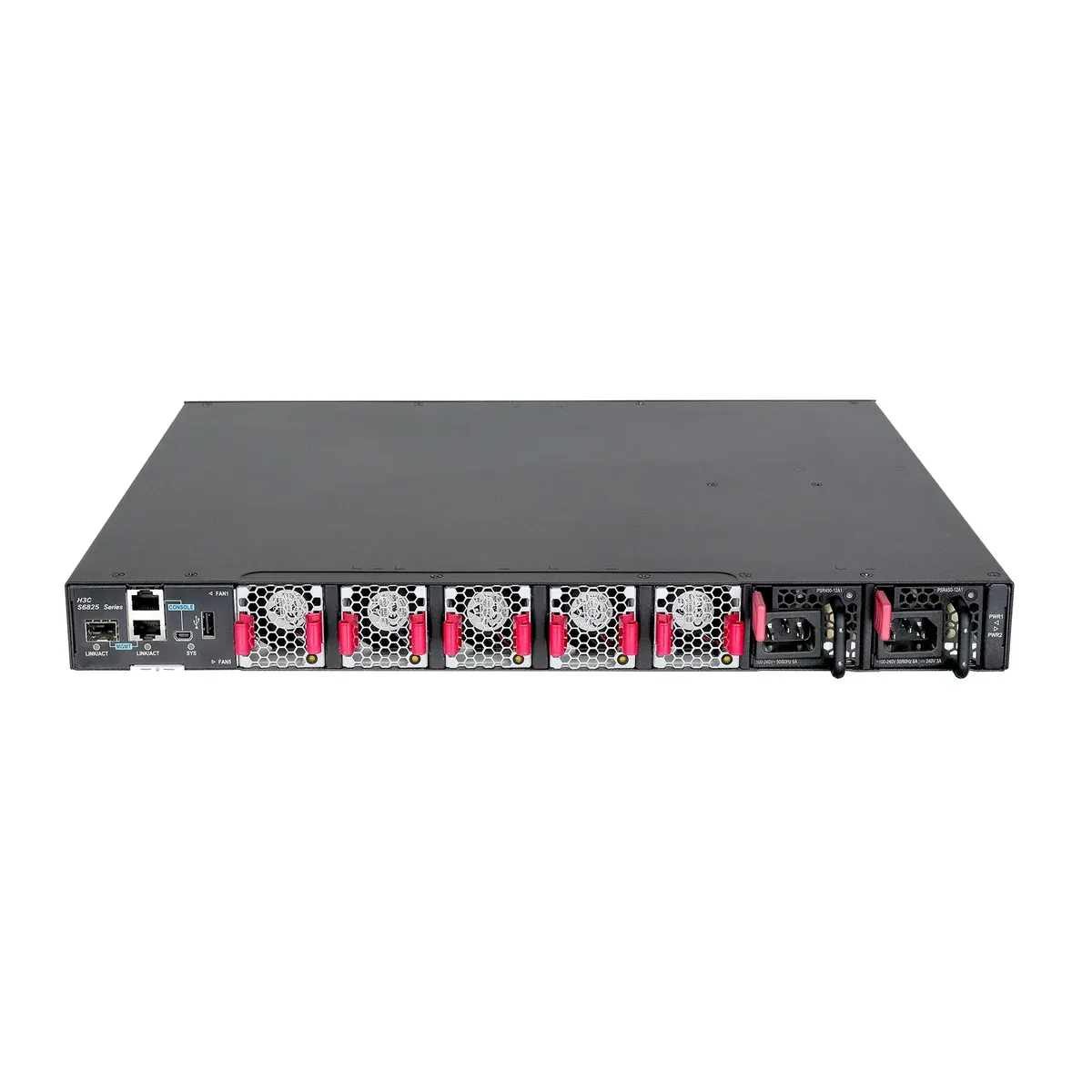

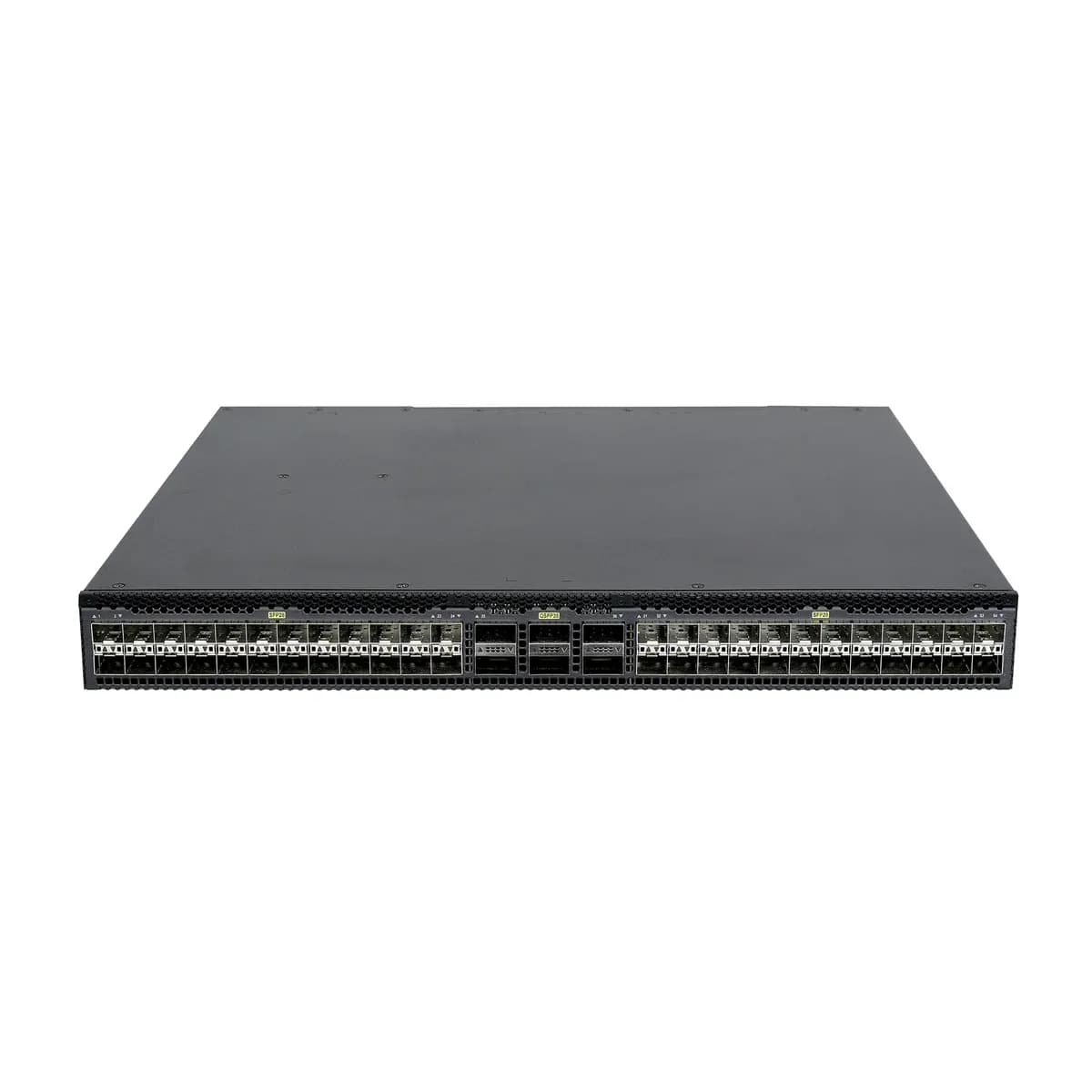

High-density 25GE server-access switches with six 100G uplinks, PTP and lossless RoCE.
Island-wide delivery to all 25 districts
| Dimensions (H × W × D) | 44 × 440 × 400 mm |
|---|---|
| Weight | ≤ 10 kg (22.05 lb) |
| Serial console port | 1 |
| Out-of-band management port | One GE copper port and one GE fiber port |
| Mini USB console port | 1 |
| USB port | 1 |
| 100G QSFP28/40G QSFP+ port | 6 |
| 25G SFP28/10G SFP+/1G SFP port | 48 |
| CPU | C3000, 2.2GHz@4Core |
| Flash/SDRAM | LS-6825-54HF ： 4GB/4G LS-6825-54HF-H1：4GB/8G |
| Latency | <1μs |
| Switching capacity | 3.6 Tbps |
| Forwarding capacity | 1001.7 Mpps |
| Buffer(Byte) | 32M |
| AC-input voltage | 90v AC to 290v AC |
| DC-input voltage | –36v DC to –72v DC |
| Power module slot | 2 |
| Fan tray slot | 5 Hot-swappable fans |
| Air flow direction | Front to rear or rear to front |
| Static power consumption | Single AC: 78 W Dual AC: 87 W Single DC: 79 W Dual DC: 88 W |
| Typical power consumption | Single AC: 223 W Dual AC: 228 W Single DC: 224 W Dual DC: 227 W |
| Maximum heat consumption (BTU/hour) | Single AC: 761 Dual AC: 778 Single DC: 764 Dual DC: 775 |
| MTBF(years) | 35.4 |
| MTTR(hour) | 1 |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity | 5% to 95%, noncondensing |
| Device virtualization | IRF2.0 |
| Network virtualization | BGP-EVPN |
| Part numbers | PSR450-12AHD, PSR450-12D, PSR450-12A1, SFP-GE-SX-MM850-A, SFP-GE-LX-SM1310-A, SFP-GE-LH40-SM1310, SFP-GE-LH40-SM1550, SFP-GE-LH80-SM1550, SFP-FE-LX-SM1310-A, SFP-FE-SX-MM1310-A, SFP-FE-LH40-SM1310, SFP-10GE-T |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
