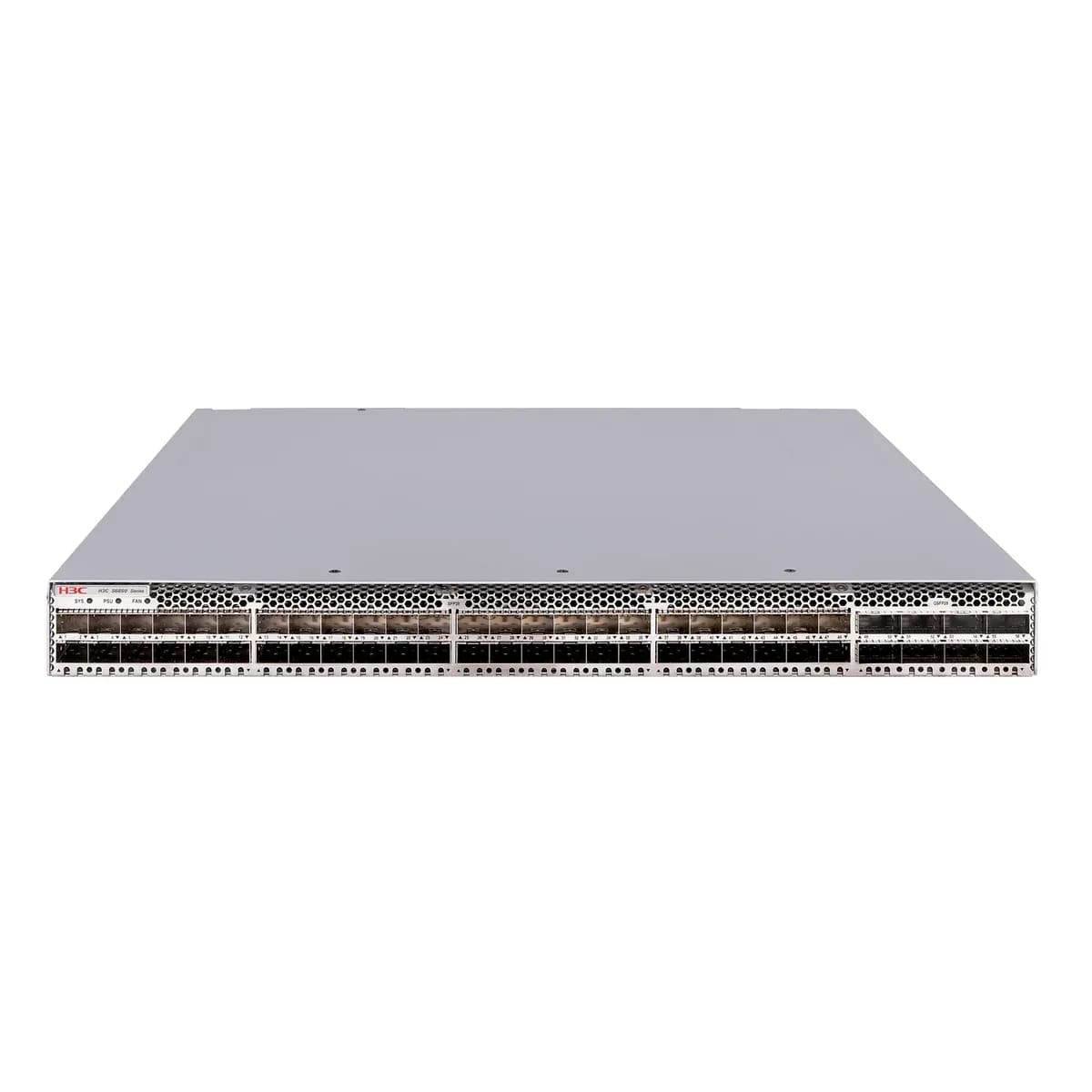

25G/100G data-centre switches for high-density server access and aggregation, with up to 4 Tbps wire-speed forwarding.
Island-wide delivery to all 25 districts
| Models | S6850-56HF, S6850-2C |
|---|---|
| PID | S6850-56HF: LS-6850-56HF-H3; S6850-2C: LS-6850-2C/LS-6850-2C-H1 |
| Dimensions (H × W × D) | S6850-56HF: Without package: 44 × 440 × 400 mm (1.73 × 17.32 × 15.75 in) With package: 150 × 658 × 556 mm (5.91 × 25.91 × 21.89 in); S6850-2C: 44.2 × 440 × 660 mm (1.74 × 17.32 × 18.11 in) |
| Weight | S6850-56HF: ≤ 10 kg (22.05 lb); S6850-2C: ≤ 16 kg (35.27 lb) |
| Serial console port | RJ45 |
| Out-of-band management port | S6850-56HF: 1 ×10/100/1000BASE-T; S6850-2C: One GE copper port and one GE fiber port |
| Mini USB console port | S6850-56HF: -; S6850-2C: 1 |
| USB port | 1 |
| 100G QSFP28/ 40G QSFP+ port | S6850-56HF: 8; S6850-2C: 2 |
| 25G SFP28/10G SFP+/1G SFP port | S6850-56HF: 48; S6850-2C: - |
| SFP port | - |
| Expansion slot | S6850-56HF: -; S6850-2C: 2 |
| CPU | S6850-56HF: C3000,2.2GHz@4Core; S6850-2C: LS-6850-2C: C2000, 2.4 GHz@4 Cores LS-6850-2C-H1: C3000,2.2GHz@4Core |
| Flash/SDRAM | 4GB/8GB |
| Latency | Port-to-Port minimum: about 550ns |
| Switching capacity | S6850-56HF: 4 Tbps; S6850-2C: 3.6Tbps |
| Forwarding capacity | 2024 Mpps |
| Buffer(byte) | 32M |
| AC-input voltage | 90v AC to 264v AC |
| DC-input voltage | S6850-56HF: 190v DC to 310v DC; S6850-2C: –40v DC to –72v DC |
| Power module slot | 2 |
| Fan tray slot | S6850-56HF: 4 Hot-swappable fan, fan speed adjustable and wind invertible; S6850-2C: 5 Hot-swappable fan, fan speed adjustable and wind invertible |
| Air flow direction | From front to rear or from rear to front |
| Typical power consumption (Fully configured with copper cables, at 50% load) | S6850-56HF: Single AC input: 143 W Dual AC inputs: 150 W; S6850-2C: With two LSWM18CQ modules: 282 W With two LSWM18CQMSEC modules: 326 W With two LSWM116Q modules: 260 W With two LSWM18QC modules: 230 W With two LSWM124XG2Q modules: 286 W With two LSWM124XGT2Q modules: 348 W With two LSWM124XG2QFC modules: 286 W With two LSWM124XG2QL modules: 242 W With two LSWM124TG2H modules: 282 W With two LSWM116FC modules: 260 W |
| Maximum power consumption (Fully configured with transceiver modules, at 100% lo | S6850-56HF: Single AC input: 424 W Dual AC inputs: 429 W; S6850-2C: With two LSWM18CQ modules: 421 W With two LSWM18CQMSEC modules: 451 W With two LSWM116Q modules: 385 W With two LSWM18QC modules: 325 W With two LSWM124XG2Q modules: 385 W With two LSWM124XGT2Q modules: 511 W With two LSWM124XG2QFC modules: 385 W With two LSWM124XG2QL modules: 337 W With two LSWM124TG2H modules: 421 W With two LSWM116FC modules: 385 W |
| Maximum thermal consumption | S6850-56HF: 1464 BTU/hr; S6850-2C: With two LSWM18CQ modules: 1436 BTU/hr With two LSWM18CQMSEC modules: 1539 BTU/hr With two LSWM116Q modules: 1314 BTU/hr With two LSWM18QC modules: 1109 BTU/hr With two LSWM124XG2Q modules: 1314 BTU/hr With two LSWM124XGT2Q modules: 1744 BTU/hr With two LSWM124XG2QFC modules: 1314 BTU/hr With two LSWM124XG2QL modules: 1150 BTU/hr With two LSWM124TG2H modules: 1436 With two LSWM116FC modules: 1314 BTU/hr |
| Operating temperature | 0-45℃(32°F to 113°F) |
| Operating humidity | 5% to 95%, noncondensing |
