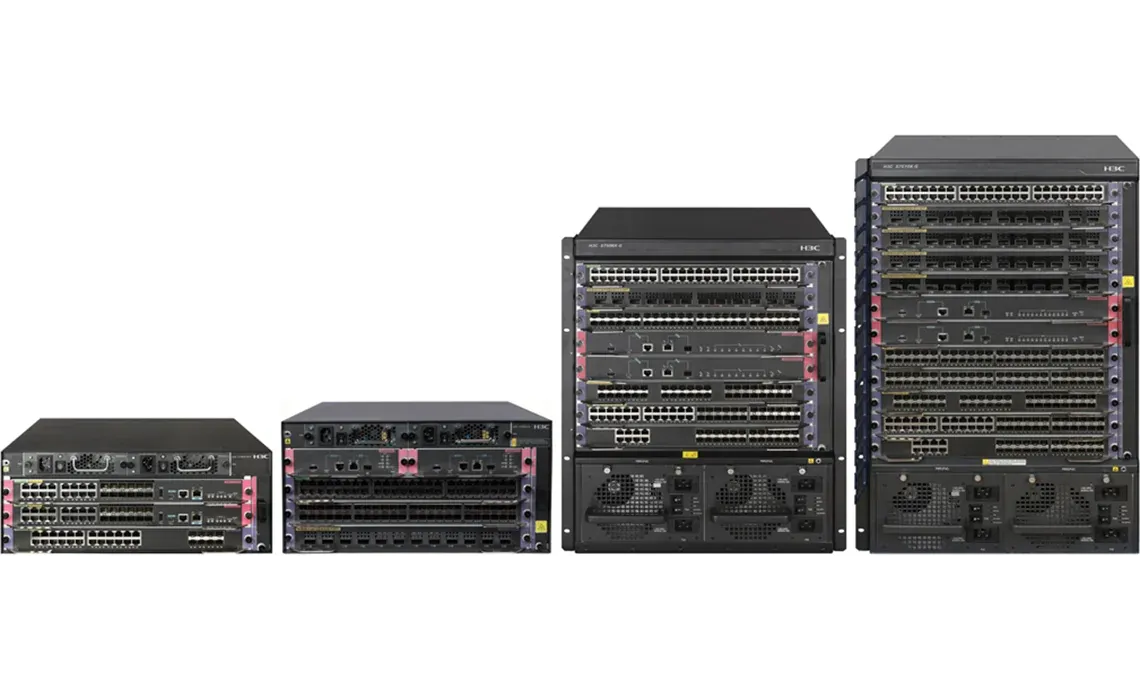

A multiservice core switch that converges wired, wireless, security and PON services in one chassis with sub-microsecond latency.
Island-wide delivery to all 25 districts
| Models | S7503X-M-G, S7503X-G, S7506X-G S7506X-G-PoE S7506X-G-MF, S7510X-G S7510X-G-PoE |
|---|---|
| Switching Capacity | S7503X-M-G: 4.75Tbps 1; S7503X-G: 6.72Tbps 1; S7506X-G S7506X-G-PoE S7506X-G-MF: 13.44Tbps 2; S7510X-G S7510X-G-PoE: 22.40Tbps 2 |
| Forwarding Capacity | S7503X-M-G: 2120Mpps; S7503X-G: 3000Mpps; S7506X-G S7506X-G-PoE S7506X-G-MF: 6000Mpps; S7510X-G S7510X-G-PoE: 10000Mpps |
| MPU Slots | S7503X-M-G: 1~2 3; S7503X-G: 2; S7506X-G S7506X-G-PoE S7506X-G-MF: 2; S7510X-G S7510X-G-PoE: 2 |
| LPU Slots | S7503X-M-G: 1~2 3; S7503X-G: 3; S7506X-G S7506X-G-PoE S7506X-G-MF: 6; S7510X-G S7510X-G-PoE: 10 |
| Fan tray | S7503X-M-G: 1 4; S7503X-G: 1 5; S7506X-G S7506X-G-PoE S7506X-G-MF: 1/3 6,7; S7510X-G S7510X-G-PoE: 1 8 |
| PSU Slots | 2 |
| MPU | S7503X-M-G: LSCM2CGP24TSSC0 LSCM2CGT24TSSC0 LSCM2CTGS12GPSC0 LSCM2CTGS12GTSC0 LSCM2CTGS16T24P20SC0-G3; S7503X-G: LSCM2SUP03B0 LSCM3SUP03A0; S7506X-G S7506X-G-PoE S7506X-G-MF: LSCM2MPUS06AS0 LSCM3MPUS06A0 LSCM2MPUS06AS0-G3 LSCM3MPUS06C0-G3 LSCM2SRP6C4Y06A0 LSCM3SRP6C4Y06A0 LSCM3SRP2C4Y06B0-G3; S7510X-G S7510X-G-PoE: LSCM3MPUS10B0 LSCM4MPUS10B0-G3 LSCM3MPUS10C0 |
| MPU Processor | S7503X-M-G: 2 cores/1.2GHz; S7503X-G: LSCM2SUP03B0: 4 cores/1.2GHz LSCM3SUP03A0: 4 cores/2.2GHz; S7506X-G S7506X-G-PoE S7506X-G-MF: LSCM2MPUS06AS0: 2 cores/1.2 GHz LSCM3MPUS06A0: 4 cores/2.2GHz LSCM2MPUS06AS0-G3 2 cores/1.2GHz LSCM3MPUS06C0-G3 4 cores/2GHz LSCM2SRP6C4Y06A0: 4 cores/1.8GHz LSCM3SRP6C4Y06A0: 4 cores/2.2GHz LSCM3SRP2C4Y06B0-G3 4 cores/2GHz; S7510X-G S7510X-G-PoE: LSCM3MPUS10B0: 4 cores/2.2GHz LSCM4MPUS10B0-G3 4 cores/2GHz LSCM3MPUS10C0: 4 cores/2.2GHz |
| MPU Flash/SDRAM | S7503X-M-G: 4GB/2GB; S7503X-G: LSCM2SUP03B0: 4GB/4GB LSCM3SUP03A0: 2GB/4GB; S7506X-G S7506X-G-PoE S7506X-G-MF: LSCM2MPUS06AS0: 4GB/2GB LSCM3MPUS06A0: 2GB/4GB LSCM2MPUS06AS0-G3 32GB/4GB LSCM3MPUS06C0-G3 32GB/4GB LSCM2SRP6C4Y06A0: 8GB/8GB LSCM3SRP6C4Y06A0: 2GB/8GB LSCM3SRP2C4Y06B0-G3 32GB/8GB; S7510X-G S7510X-G-PoE: LSCM3MPUS10B0: 2GB/4GB LSCM4MPUS10B0-G3 32GB/4GB LSCM3MPUS10C0: 2GB/4GB |
| MPU Console Ports | 1x RJ-45 1x mini USB console |
| MPU MGMT Ports | S7503X-M-G: 1x 10/100/1000M RJ45; S7503X-G: 1x 10/100/1000M RJ45 1x 1000M SFP; S7506X-G S7506X-G-PoE S7506X-G-MF: 1x 10/100/1000M RJ45 1x 1000M SFP; S7510X-G S7510X-G-PoE: 1x 10/100/1000M RJ45 1x 1000M SFP |
| Operating Environment | Temperature: 0°C to 45°C (32°F to 113°F) Humidity: 5% to 95% (non-condensing) |
| Input Voltage | DC: –48V to –60V AC: 100V to 240V |
| Dimension (H x W x D) | S7503X-M-G: 175mm×436mm×420mm (6.89 × 17.17 × 16.54 in); (4U); S7503X-G: 216mm×436mm×420mm (8.50 × 17.17 × 16.54 in); (5U); S7506X-G S7506X-G-PoE S7506X-G-MF: 575mm×436mm×420mm (22.64 × 17.17 × 16.54 in); (13U); S7510X-G S7510X-G-PoE: 708mm×436mm×420mm (27.87 × 17.17 × 16.54 in); (16U) |
| Fully Loaded Weight (kg) | S7503X-M-G: <28KG <61.73LB; S7503X-G: <35KG <77.16LB; S7506X-G S7506X-G-PoE S7506X-G-MF: S7506X-G/MF: <75KG/<165.34LB S7506X-G-PoE: <80KG/<176.37LB; S7510X-G S7510X-G-PoE: S7510X-G: <95KG/<209.44LB S7510X-G-PoE: <100KG/<220.46LB |
| Availability | 99.999% |
| MTBF (yrs) | S7503X-M-G: 61.8; S7503X-G: 59.1; S7506X-G S7506X-G-PoE S7506X-G-MF: 38.2; S7510X-G S7510X-G-PoE: 111.6 |
| MTTR (hrs) | 1 |
| Ethernet | IEEE 802.1p (CoS priority) IEEE 802.1Q (VLAN) IEEE 802.1D (STP)/802.1w (RSTP)/802.1s (MSTP)/PVST/PVST+ STP Root Guard BPDU guard, BPDU filter Static MAC configuration MAC learning limit IEEE 802.1ad (QinQ), selective QinQ, VLAN mapping IEEE 802.3x (full-duplex flow control) IEEE 802.3ad (link aggregation), cross-card link aggregation Port isolation RRPP Mirroring, SPAN, RSPAN, ERSPAN with 128 mirror groups (Max) Cross-card port mirroring/flow mirroring Broadcast/multicast/unknown unicast storm suppression on an interface Port-based VLAN, Protocol-based VLAN, IP subnet-based VLAN, MAC-based VLA |
| Routing | ARP proxy ARP snooping DHCP client, DHCP server, DHCP relay, DHCP snooping, DHCP option82 DHCPv6 client, DHCPv6 server, DHCPv6 relay, DHCPv6 snooping, DHCPv6 option82 Static routing RIPv1/v2 OSPF IS-IS BGPv4 OSPF/IS-IS/BGP GR (Graceful Restart) IPv4/IPv6 ECMP IPv4/IPv6 Policy-based routing IPv4/IPv6 Routing policy ICMPv6 ICMPv6 redirection ACLv6 OSPFv3 RIPng BGP4+ IS-ISv6 Manual tunneling GRE ISATAP 6to4 tunneling Dual stack (IPv4 and IPv6) |
| Multicast | IGMPv1/v2/v3 IGMPv1/v2/v3 snooping IGMP filter IGMP fast leave Multicast VLAN PIM-SM/PIM-DM/PIM-SSM PIM snooping, IPv6 PIM-snooping MSDP Anycast RP MLD V1/V2, MLD V1/V2 Snooping PIM-SMv6, PIM-DMv6, PIM-SSMv6 Multicast policy and Multicast QoS |
| ACL/QoS | Basic and advanced ACL VLAN-based ACL Global ACL Ingress/Egress ACL Diff-Serv QoS Ingress/Egress CAR Traffic shaping 802.1P/DSCP priority marking Queue scheduling algorithms: SP, WRR, SP+WRR, WFQ Congestion avoidance techniques, including tail drop and WRED Ingress/Egress counting COPP |
| SDN/OpenFlow | Support SDN solution (AD-Campus) OpenFlow 1.3 Multi-controller (EQUAL mode, active/passive mode) Multi-flow table pipeline Group table Two-level meter |
| VXLAN | VXLAN* EVPN* VXLAN L2 switching VXLAN L3 routing VXLAN VTEP L2 VxLAN gateway, L3 VxLAN gateway Distributed VxLAN gateway, Centralized VxLAN gateway IPv4/IPv6 VxLAN tunnel VXLAN OAM ping/tracert IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane EVPN ESI* OpenFlow+Netconf centralized control plane |
| MPLS/VPLS | L3 MPLS VPN L2 VPN: VLL (Martini, Kompella) MCE MPLS OAM VPLS, VLL P/PE function LDP |
| Multiservice convergence | Integrated AC, Unified Wireless Access Controller* AP Auto Registration Wireless User WPA2 + PSK Authentication Wireless User Portal Authentication |
| Security | Hierarchical user management and password protection Port security Portal authentication MAC authentication IEEE 802.1x and IEEE 802.1x SERVER AAA/Radius TACACS+ HWTACACS (HW Terminal Access Controller Access Control System) (Same authentication processes and implementations with TACACS+) SSHv1.5/SSHv2 Basic and advanced Access Control Lists for packet filtering OSPF, RIPv2, BGPv4 plain text and MD5 authentication IP address, VLAN ID, MAC address multiple binding combination uRPF Active/standby data backup CPU DoS Protection ARP Attack Protection, ND attack defense Macsec* HTTPS SSL PKI Secure |
