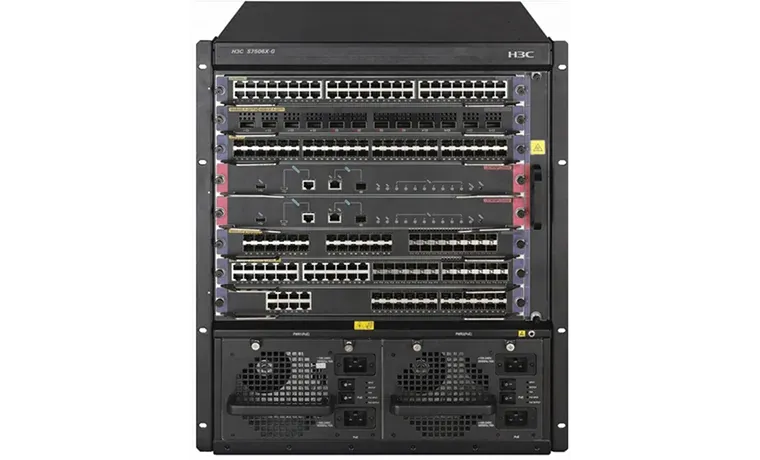

A chassis OLT and distributed routing switch supporting GPON and XGS-PON on the same platform, with up to 240 PON ports.
Island-wide delivery to all 25 districts
| Models | S7503X-G, S7506X-G, S7510X-G |
|---|---|
| Switching Capacity | S7503X-G: 6.72Tbps 1; S7506X-G: 13.44Tbps 2; S7510X-G: 22.40Tbps 2 |
| Forwarding Capacity | S7503X-G: 3000Mpps; S7506X-G: 6000Mpps; S7510X-G: 10000Mpps |
| MPU Slots | 2 |
| LPU Slots | S7503X-G: 3; S7506X-G: 6; S7510X-G: 10 |
| Fan tray | S7503X-G: 1 3; S7506X-G: 1 4; S7510X-G: 1 5 |
| PSU Slots | 2 |
| GPON port count | S7503X-G: 72; S7506X-G: 144; S7510X-G: 240 |
| XGSPON port count | S7503X-G: 72; S7506X-G: 144; S7510X-G: 240 |
| MPU | S7503X-G: LSCM2SUP03B0 LSCM3SUP03A0; S7506X-G: LSCM3MPUS06A0 LSCM2SRP6C4Y06A0 LSCM3SRP6C4Y06A0; S7510X-G: LSCM3MPUS10B0 |
| MPU Processor | S7503X-G: LSCM2SUP03B0: 4 cores/1.2GHz LSCM3SUP03A0: 4 cores/2.2GHz; S7506X-G: LSCM3MPUS06A0: 4 cores/2.2GHz LSCM2SRP6C4Y06A0: 4 cores/1.8GHz LSCM3SRP6C4Y06A0: 4 cores/2.2GHz; S7510X-G: LSCM3MPUS10B0: 4 cores/2.2GHz |
| MPU Flash/SDRAM | S7503X-G: LSCM2SUP03B0: 4GB/4GB LSCM3SUP03A0: 2GB/4GB; S7506X-G: LSCM3MPUS06A0: 2GB/4GB LSCM2SRP6C4Y06A0: 8GB/8GB LSCM3SRP6C4Y06A0: 2GB/8GB; S7510X-G: LSCM3MPUS10B0: 2GB/4GB |
| MPU Console Ports | 1x RJ-45 1x mini USB console |
| MPU MGMT Ports | 1x 10/100/1000M RJ45 1x 1000M SFP |
| Operating Environment | Temperature: 0°C to 45°C (32°F to 113°F) Humidity: 5% to 95% (non-condensing) |
| Input Voltage | DC: –48V to –60V AC: 100V to 240V |
| Dimension (H x W x D) | S7503X-G: 216mm×436mm×420mm (8.50 × 17.17 × 16.54 in); (5U); S7506X-G: 575mm×436mm×420mm (22.64 × 17.17 × 16.54 in); (13U); S7510X-G: 708mm×436mm×420mm (27.87 × 17.17 × 16.54 in); (16U) |
| Fully Loaded Weight (kg) | S7503X-G: <35KG <77.16LB; S7506X-G: <75KG <165.34LB; S7510X-G: <95KG <209.44LB |
| Availability | 99.999% |
| MTBF (yrs) | S7503X-G: 59.1; S7506X-G: 38.2; S7510X-G: 111.6 |
| MTTR (hrs) | 1 |
| PON | Number of ONUs per PON port: GPON: 64; XGSPON: 256 Supports FEC GPON: AES-128 encryption function GPON: SN authentication Supports dynamic bandwidth allocation (DBA) algorithm with a granularity of 64 Kbps Supports a maximum valid transmission distance of 20 km Supports batch and real-time software version upgrades for ONUs Supports optical power detection for PON port transmission and receive (Rx) optical power Rogue ONU detection (long-transmission ONU detection) Supports CTC standard alarm management Optical link protection changeover Supports communication between different ONUs under the |
| Ethernet | IEEE 802.1p (CoS priority) IEEE 802.1Q (VLAN) IEEE 802.1D (STP)/802.1w (RSTP)/802.1s (MSTP)/PVST/PVST+ STP Root Guard BPDU guard, BPDU filter Static MAC configuration MAC learning limit IEEE 802.1ad (QinQ), selective QinQ, VLAN mapping IEEE 802.3x (full-duplex flow control) IEEE 802.3ad (link aggregation), cross-card link aggregation Port isolation RRPP Mirroring, SPAN, RSPAN, ERSPAN with 128 mirror groups (Max) Cross-card port mirroring/flow mirroring Broadcast/multicast/unknown unicast storm suppression on an interface Port-based VLAN, Protocol-based VLAN, IP subnet-based VLAN, MAC-based VLA |
| Routing | ARP proxy ARP snooping DHCP client, DHCP server, DHCP relay, DHCP snooping, DHCP option82 DHCPv6 client, DHCPv6 server, DHCPv6 relay, DHCPv6 snooping, DHCPv6 option82 Static routing RIPv1/v2 OSPF IS-IS BGPv4 OSPF/IS-IS/BGP GR (Graceful Restart) IPv4/IPv6 ECMP IPv4/IPv6 Policy-based routing IPv4/IPv6 Routing policy ICMPv6 ICMPv6 redirection ACLv6 OSPFv3 RIPng BGP4+ IS-ISv6 Manual tunneling GRE ISATAP 6to4 tunneling Dual stack (IPv4 and IPv6) |
| Multicast | IGMPv1/v2/v3 IGMPv1/v2/v3 snooping IGMP filter IGMP fast leave Multicast VLAN PIM-SM/PIM-DM/PIM-SSM PIM snooping, IPv6 PIM-snooping MSDP Anycast RP MLD V1/V2, MLD V1/V2 Snooping PIM-SMv6, PIM-DMv6, PIM-SSMv6 Multicast policy and Multicast QoS |
| ACL/QoS | Basic and advanced ACL VLAN-based ACL Global ACL Ingress/Egress ACL Diff-Serv QoS Ingress/Egress CAR Traffic shaping 802.1P/DSCP priority marking Queue scheduling algorithms: SP, WRR, SP+WRR, WFQ Congestion avoidance techniques, including tail drop and WRED Ingress/Egress counting COPP |
| SDN/OpenFlow | Support SDN solution (AD-Campus) OpenFlow 1.3 Multi-controller (EQUAL mode, active/passive mode) Multi-flow table pipeline Group table Two-level meter |
| VXLAN | VXLAN* EVPN* VXLAN L2 switching VXLAN L3 routing VXLAN VTEP L2 VxLAN gateway, L3 VxLAN gateway Distributed VxLAN gateway, Centrilized VxLAN gateway IPv4/IPv6 VxLAN tunnel VXLAN OAM ping/tracert IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane EVPN ESI* OpenFlow+Netconf centralized control plane |
