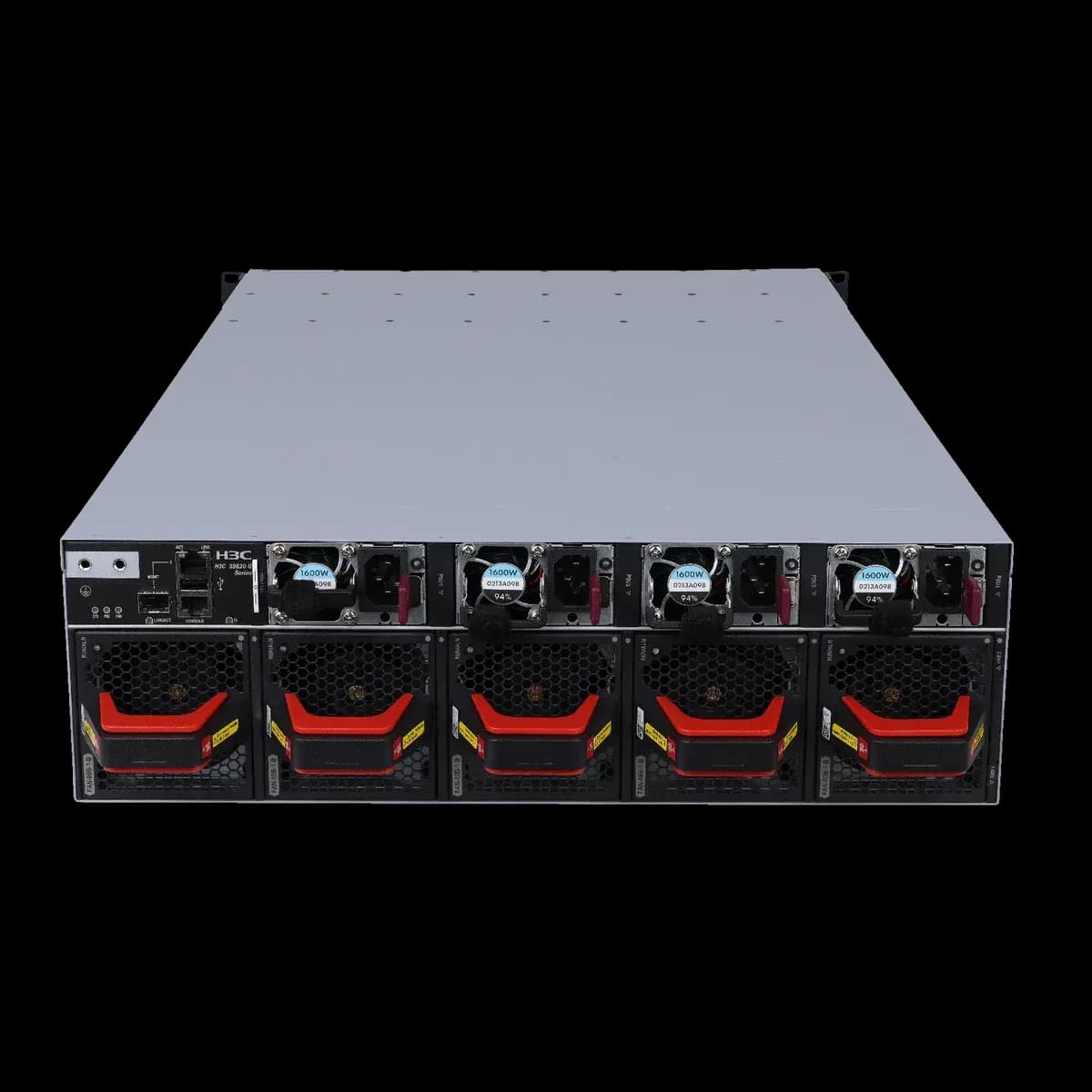

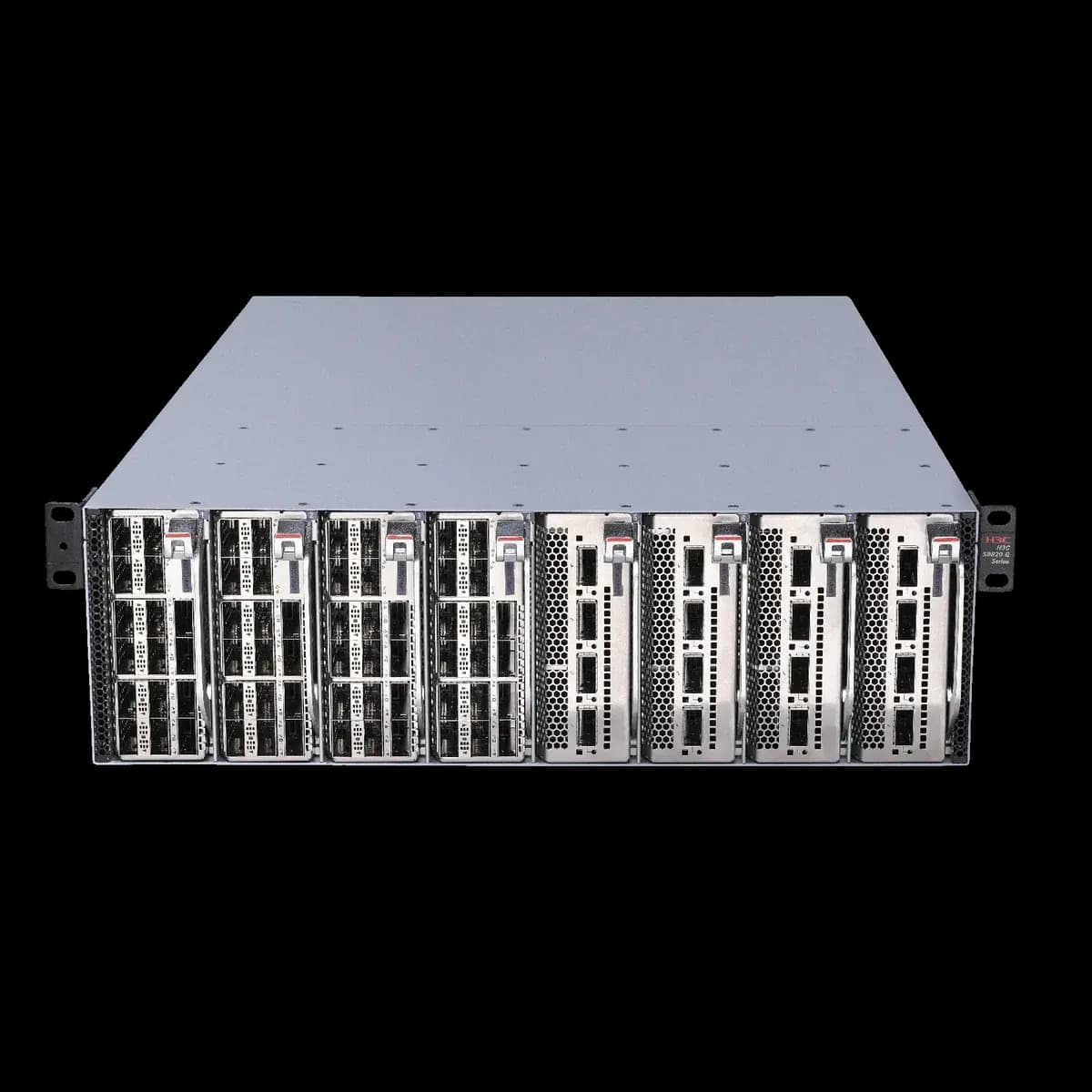

Modular 2U data-centre switches with eight sub-slots supporting 800G, 400G, 200G, 100G and 50G interfaces.
Island-wide delivery to all 25 districts
| Dimensions (H × W × D) /mm | 130.5×440×760 |
|---|---|
| Weight | ≤45kg |
| Console port | 1 |
| Out-of-band management port | 10M/100M/1000M Base-T port：1; SFP port：1 |
| Mini USB port | - |
| USB port | 1 |
| Expansion slot | 8 slots |
| CPU | 2.2GHz |
| Flash/SDRAM | NAND FLASH:SSD 128G RAM: 16G |
| Latency | 1μs |
| Buffer | 64MB |
| Switching capacity | 25.6T（bidirection） |
| Forwarding capacity | 5.6Bpps |
| AC-input voltage | 100V-240V AC；50/60Hz |
| DC-input voltage | 240V DC |
| Power module slot | 4 |
| Fan tray slot | 5 |
| Air flow direction | Port Panel and Fan Panel Side Exhaust Airflow |
| Static power consumption | Dual power:272W/ Four power:289W |
| Typical power consumption(full cables, 50% load) | LSWM1CGQ16M1：Dual power:880W/ Four power:891W LSWM1CDHQ4M1：Dual power:809W/ Four power:815W |
| Typical power consumption(full transceivers, 100% load) | LSWM1CGQ16M1：Dual power: 1894W/ Four power: 1902W LSWM1CDHQ4M1：Dual power: 1377W/ Four power: 1383W |
| MTBF(years) | 34.47 |
| MTTR(hour) | 0.5 |
| Operating temperature | 0ºC～40ºC |
| Storage temperature | -40ºC～70ºC |
| Operating humidity | 5%～95% |
| Device virtualization | M-LAG |
| Link aggregation | Static Aggregation Dynamic Aggregation Layer 3 Aggregation |
| Part numbers | FAN-80F-1-A |
