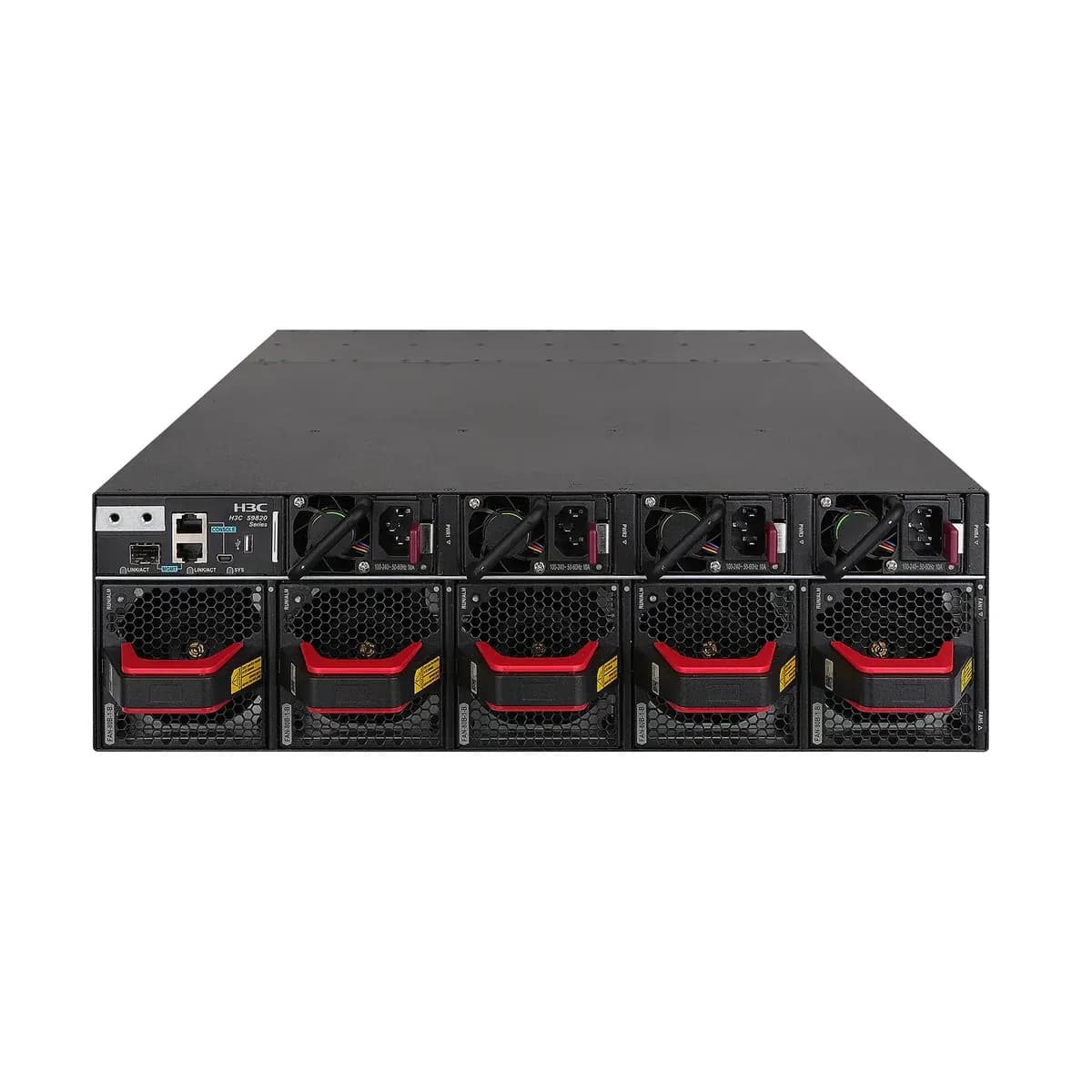

H3C S9820 Series Data Center Switches

Model: S9820Series: S9820

High-density 100G/400G data-centre switches for spine and aggregation, with EVPN-VXLAN, FCoE and RoCE.

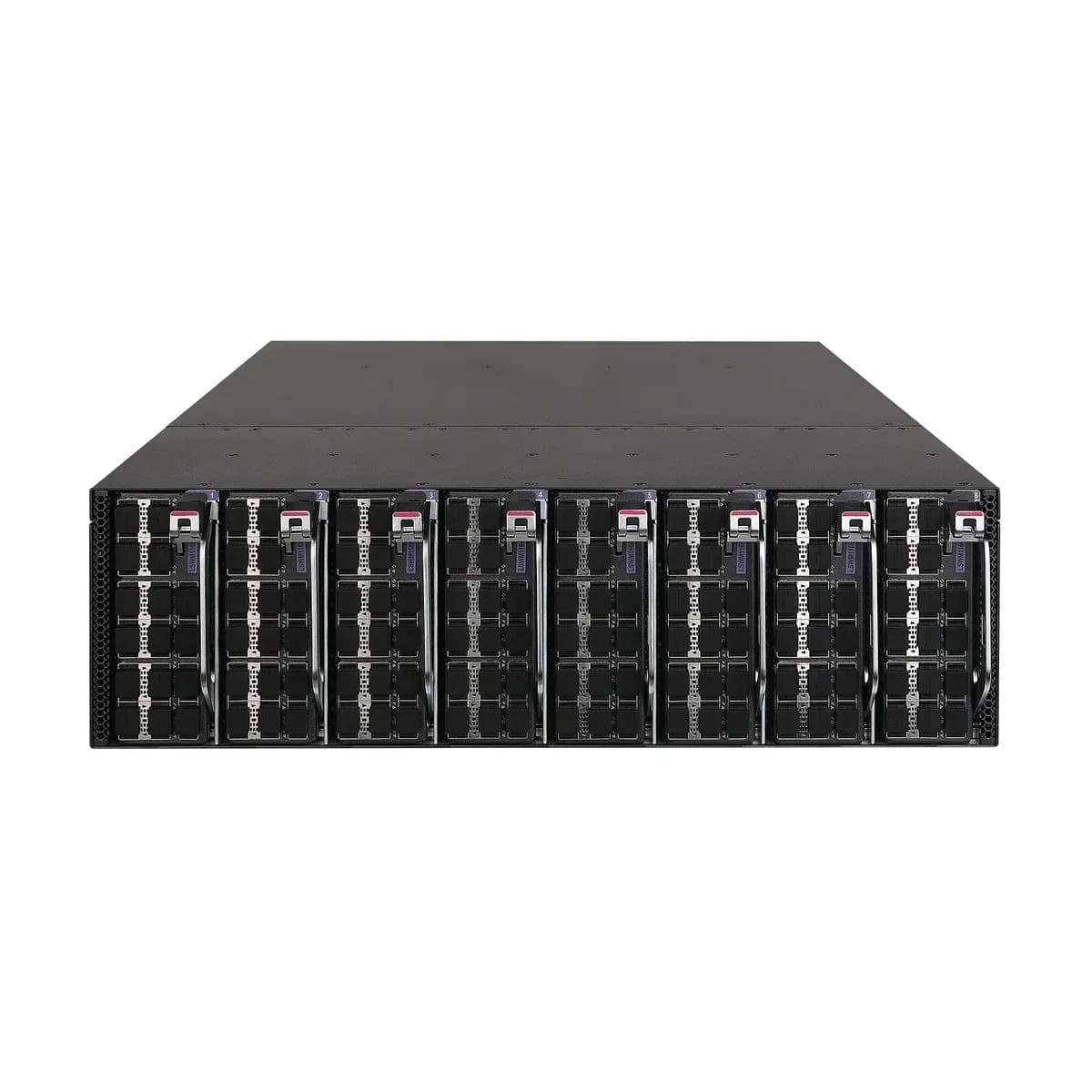

64 x 100G (S9820-64H) or modular S9820-8C up to 32 x 400G
MP-BGP EVPN as the VXLAN control plane
FCoE for converged storage and data traffic
DRNI, RoCE and PTP
Programmable chips; redundant PSUs and fans

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

Models	S9820-64H, S9820-8C
Product code	S9820-64H: LS-9820-64H /LS-9820-64H-H1; S9820-8C: LS-9820-8C
Dimensions (H × W × D)	S9820-64H: 88.1 × 440 × 540 mm (3.47 × 17.32 × 21.26 in); S9820-8C: 130.5 × 440 × 760 mm (5.14 × 17.32 × 29.92 in)
Weight	S9820-64H: ≤ 27 kg (59.52 lb) (including three fan trays and four power supplies, excluding transceiver modules and cables); S9820-8C: ≤ 45 kg (99.21 lb)
Console port	1
Out-of-band management port	One GE copper port and one GE fiber port
Mini USB port	1
USB port	1
QSFP28/QSFP+ port	S9820-64H: 64; S9820-8C: N/A
Expansion slot	S9820-64H: N/A; S9820-8C: 8(16 100G ports or 4 400G ports per slot)
CPU	2.2GHz @4Cores
Flash/SDRAM	4GB/8GB
Latency	<850ns
Buffer	S9820-64H: 42M; S9820-8C: 64M
Switching capacity	S9820-64H: 12.8 Tbps; S9820-8C: 25.6Tbps
Forwarding capacity	S9820-64H: 4400 Mpps; S9820-8C: 7655.5Mpps
AC-input voltage	S9820-64H: 90 VAC to 264 VAC; S9820-8C: 90-290 VAC
DC-input voltage	S9820-64H: –40 VDC to –72 VDC; S9820-8C: N/A
Power module slot	4
Fan tray slot	S9820-64H: 3; S9820-8C: 5
Air flow direction	S9820-64H: From front to rear or from rear to front; S9820-8C: Front-to-rear (from the port side to the power supply side)
Static power consumption	S9820-64H: Dual AC: 336W; S9820-8C: Dual AC:305W
Typical power consumption	S9820-64H: Dual AC: 519W; S9820-8C: Dual AC:921W
MTBF(years)	S9820-64H: 23.31; S9820-8C: 38.8
MTTR(hour)	1
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating humidity	5% RH to 95% RH, noncondensing
Device virtualization	M-LAG(DRNI) S-MLAG
