H3C S9825-G Data Center Switches

Name: H3C S9825-G Data Center Switches
Brand: H3C
SKU: H3C-S9825-G

Model: S9825-GSeries: S9825

Next-generation 800G/400G data-centre switches in modular (8C) or fixed 64 x 400G form factors.

Price on Request

Island-wide delivery to all 25 districts

Models	S9825-8C-G, S9825-64DH-G
Dimensions (H × W × D) /mm	S9825-8C-G: 130.5×440×760; S9825-64DH-G: 88.1×440×760
Weight	S9825-8C-G: ≤45kg; S9825-64DH-G: ≤21.4kg
Console port	1
Out-of-band management port	S9825-8C-G: 10M/100M/1000M Base-T port：1; SFP port：3; S9825-64DH-G: 10M/100M/1000M Base-T port：1
Mini USB port	-
USB port	1
SFP28 port	S9825-8C-G: -; S9825-64DH-G: 2

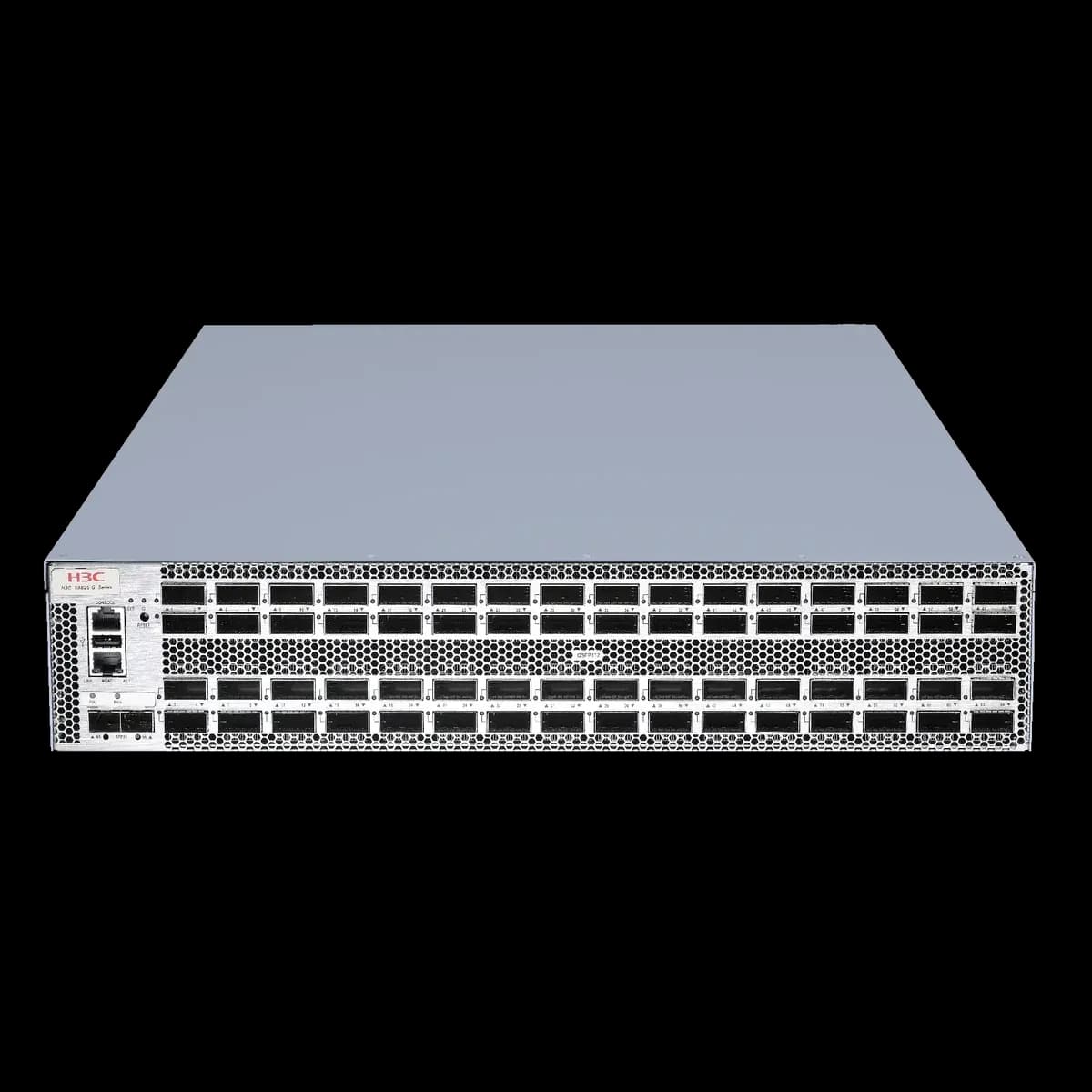

400G Q112 port	S9825-8C-G: -; S9825-64DH-G: 64

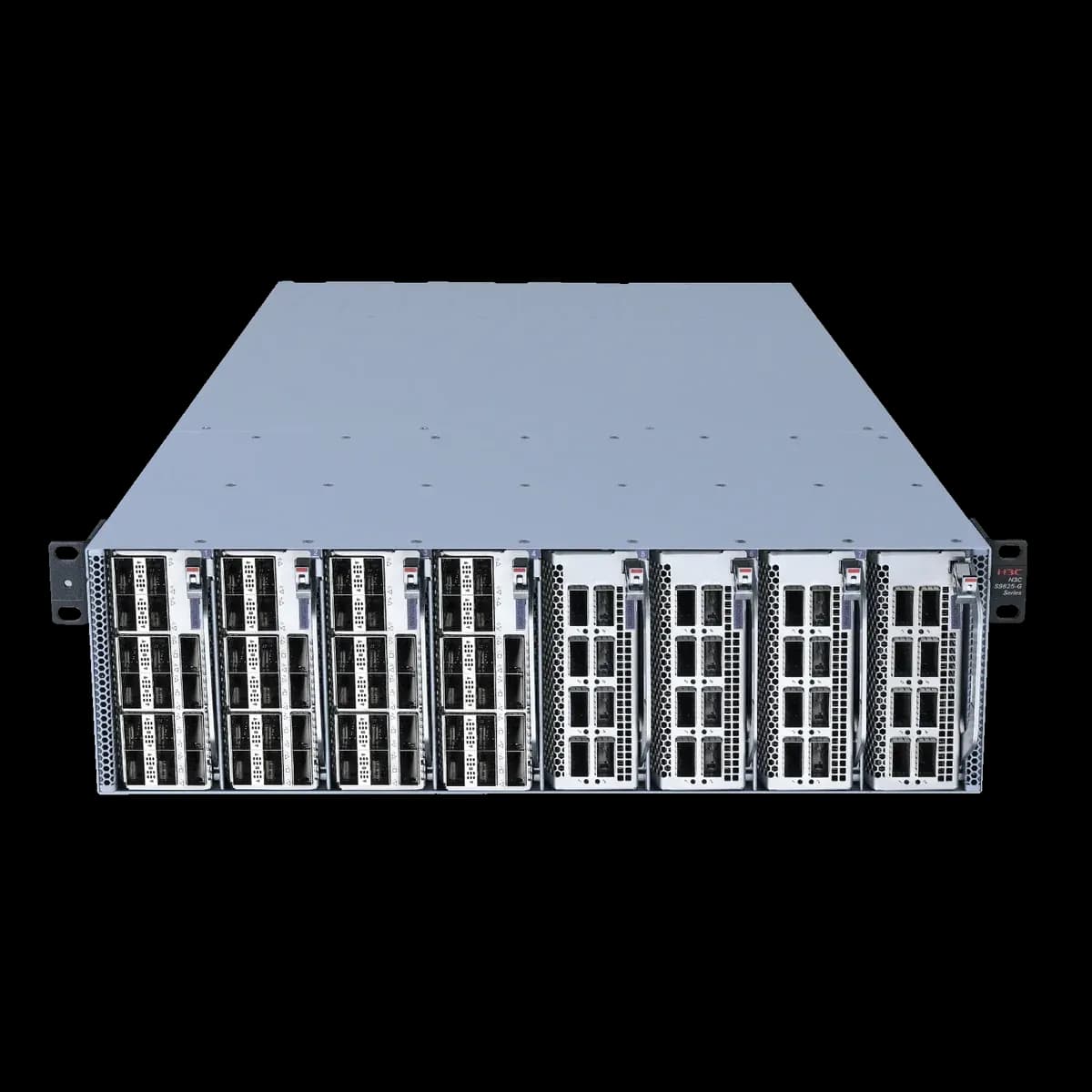

Expansion slot	S9825-8C-G: 8 slots; S9825-64DH-G: -
CPU	2.2GHz
Flash/SDRAM	NAND FLASH:SSD 128G RAM: 16G
Latency	1μs
Buffer	64MB
Switching capacity	51.2T（bidirection）
Forwarding capacity	11.2Bpps
AC-input voltage	100V-240V AC；50/60Hz
DC-input voltage	240V DC
Power module slot	S9825-8C-G: 4; S9825-64DH-G: 2

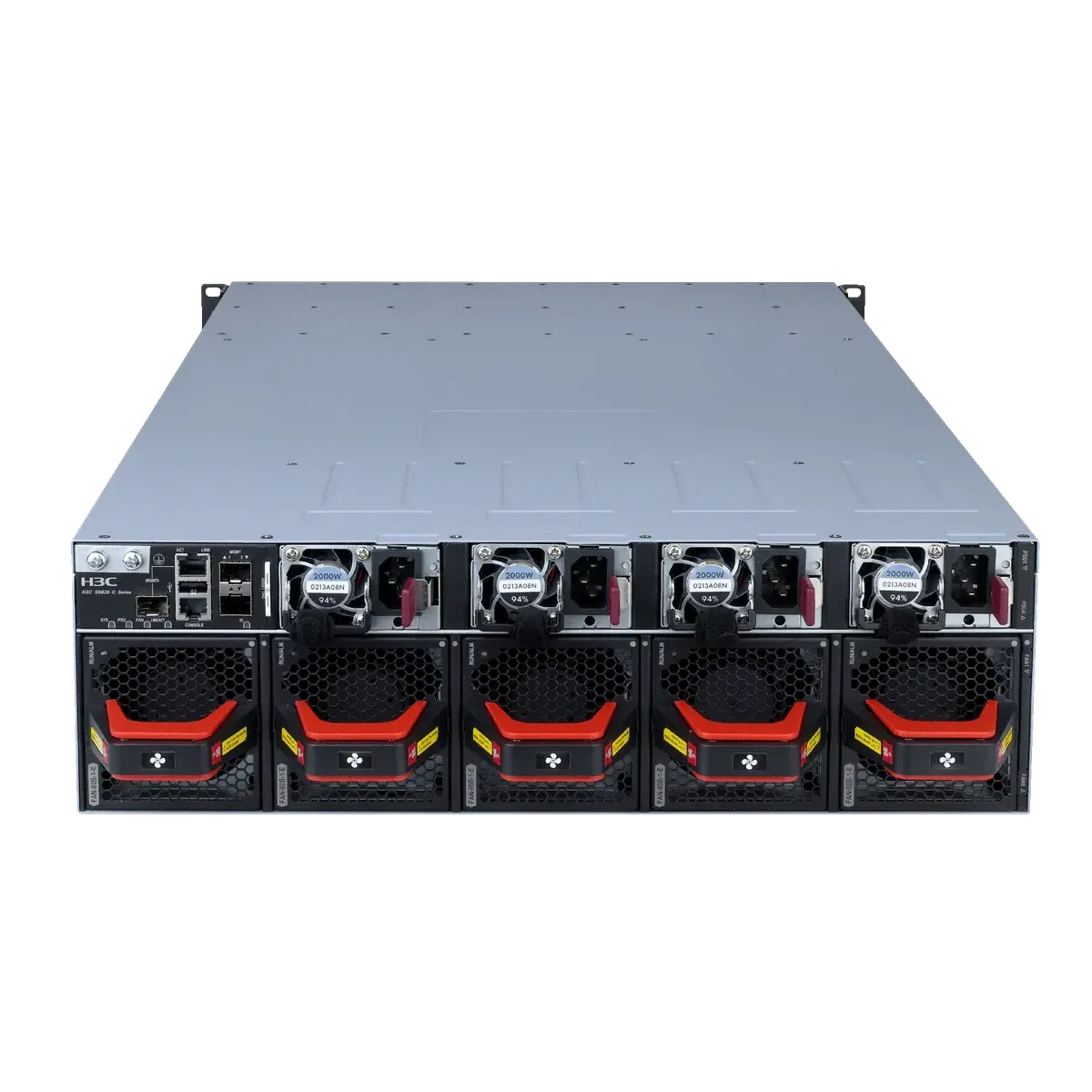

Fan tray slot	S9825-8C-G: 5; S9825-64DH-G: 4
Air flow direction	Fan Panel Side Exhaust Airflow
Static power consumption	S9825-8C-G: Dual power:444W/ Four power:488W; S9825-64DH-G: Single power:429W/ Dual power:458W
Typical power consumption(full cables, 50% load)	S9825-8C-G: Please refer to hardware document in website; S9825-64DH-G: Single power:596W/ Dual power:618W
Typical power consumption(full transceivers, 100% load)	Single power:2194W/ Dual power:2253W
MTBF(years)	S9825-8C-G: 43.8; S9825-64DH-G: 40.87
MTTR(hour)	0.5
Operating temperature	0ºC～40ºC
Storage temperature	-40ºC～70ºC
