H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

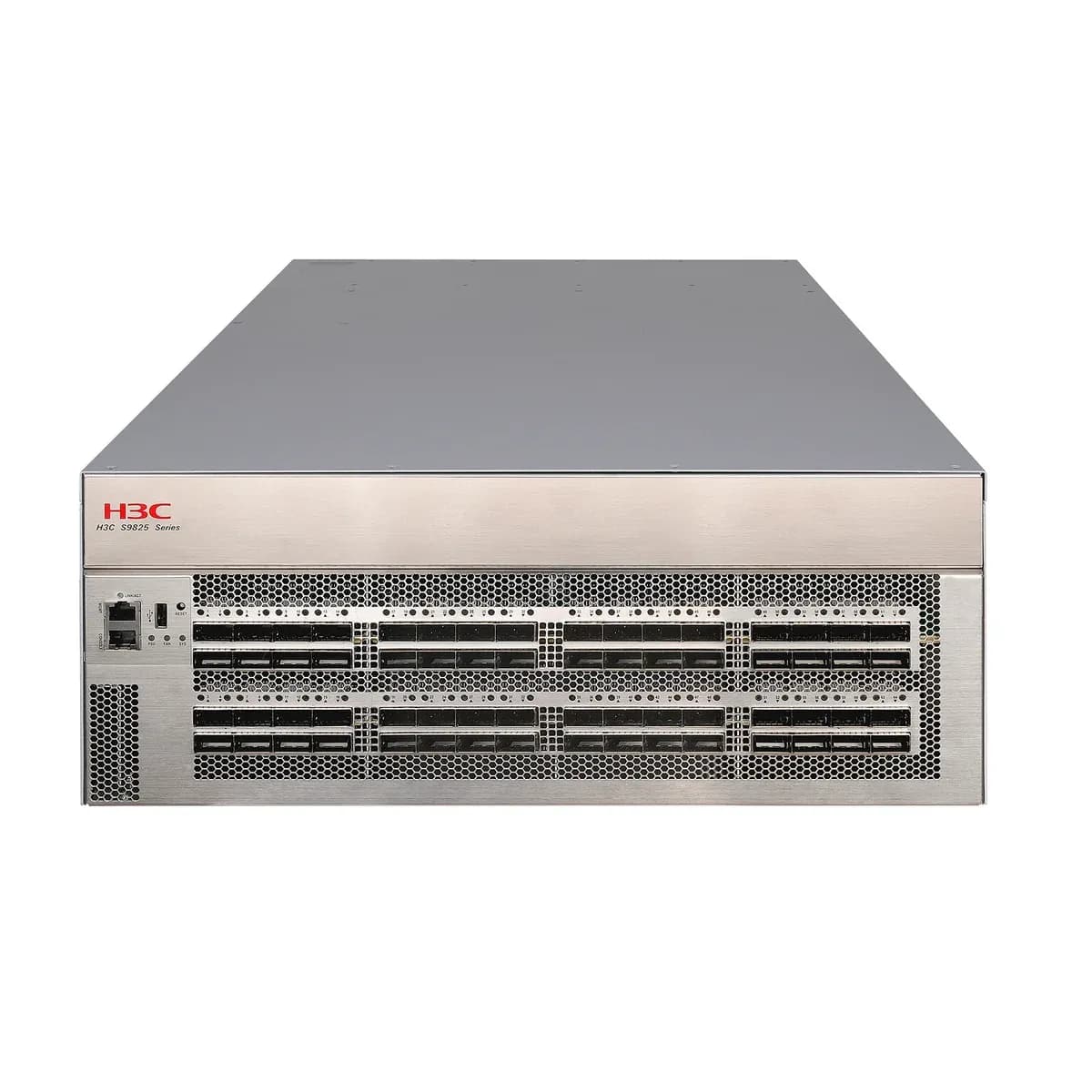

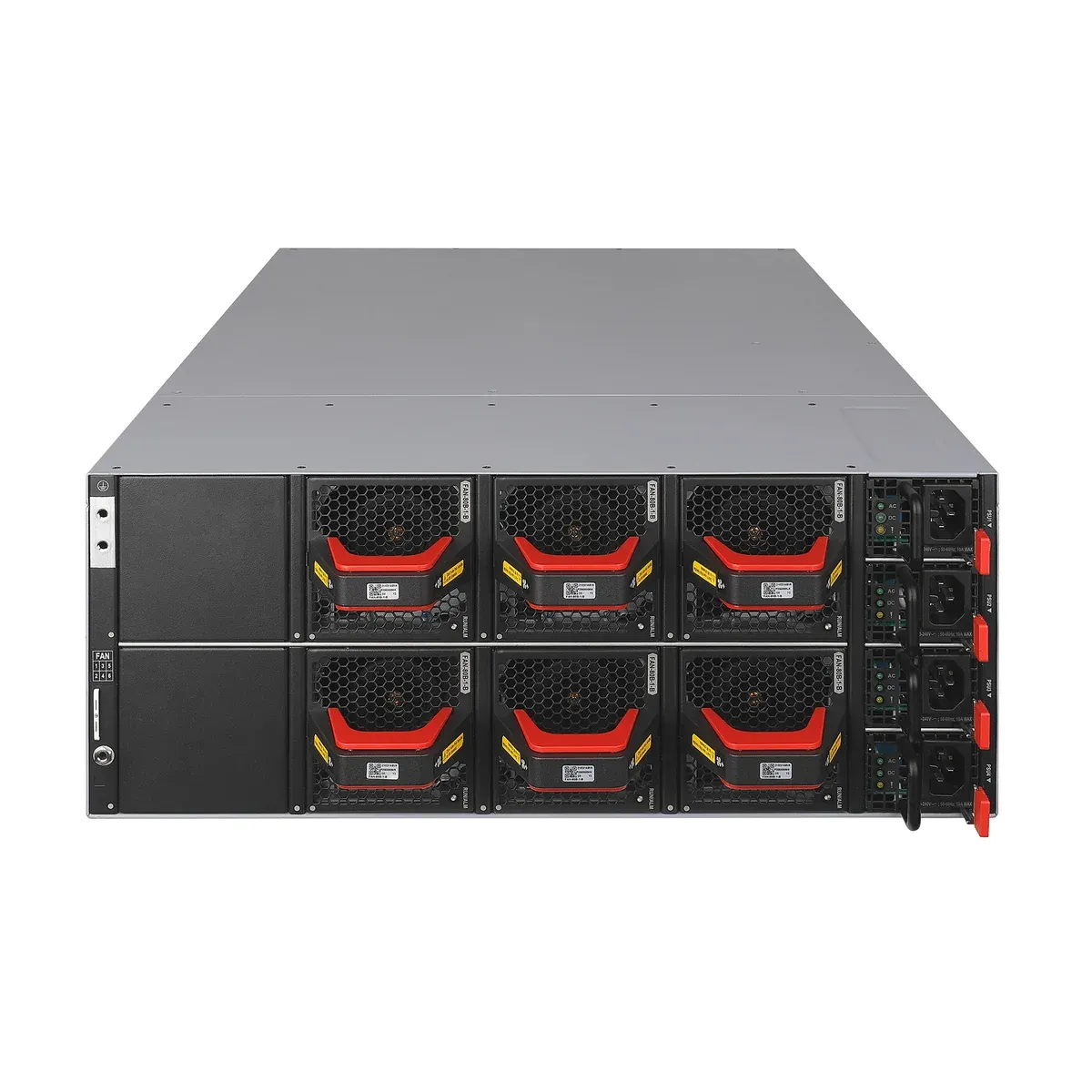

400G/200G data-centre core and aggregation switches with up to 51.2 Tbps forwarding and lossless RoCEv2.
Island-wide delivery to all 25 districts
| Models | S9825-64D, S9825-128B |
|---|---|
| Dimensions (H × W × D) | S9825-64D: 175 × 440 × 760 mm (6.89 × 17.32 × 29.92 in); S9825-128B: 175 mm×440 mm×800mm(6.89 × 17.32 × 31.50 in) |
| Weight(Full loaded) | S9825-64D: LS-9825-64D: ≤ 37 kg (81.57 lb) LS-9825-64D-H1: ≤ 38.4 kg (84.66 lb); S9825-128B: ≤47kg |
| Serial console port | 1 |
| Out-of-band management port | 1 |
| USB port | 1 |
| 400GE QSFP-DD port | S9825-64D: 64; S9825-128B: - |
| 200GE QSFP56 port | S9825-64D: -; S9825-128B: 128 |
| CPU | S9825-64D: 2.9GHz@4core; S9825-128B: 2.6GHz@8core |
| Flash/SDRAM | 240G/16G |
| Latency | <1μs |
| Switching capacity | 51.2Tbps |
| Forwarding capacity | 10398.8Mpps |
| Buffer(byte) | 56M |
| Power module slot | 4 |
| Fan tray slot | S9825-64D: LS-9825-64D: 6 LS-9825-64D-H1: 8; S9825-128B: 6 |
| Air flow direction | From front to rear |
| Minimum power consumption | S9825-64D: LS-9825-64D: · Dual AC inputs: 243 W · Four AC inputs: 251 W LS-9825-64D-H1: · Dual AC inputs: 247 W · Four AC inputs: 256 W; S9825-128B: 262.23W |
| Typical power consumption | S9825-64D: LS-9825-64D: · Dual AC inputs: 613 W · Four AC inputs: 630 W LS-9825-64D-H1: · Dual AC inputs: 650 W · Four AC inputs: 680 W; S9825-128B: 540.07W |
| Maximum power consumption | S9825-64D: LS-9825-64D: · Dual AC inputs: 1852 W · Four AC inputs: 1855 W LS-9825-64D-H1: · Dual AC inputs: 2500 W · Four AC inputs: 2500 W; S9825-128B: 1708W |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% to 95%, noncondensing |
| MTBF(year) | S9825-64D: 50.1; S9825-128B: 25.8 |
| MTTR(hour) | <0.5 |
| Device virtualization | M-LAG(DRNI) S-MLAG |
| Network virtualization | BGP-EVPN |
| SDN | H3C SeerEngine-DC for SeerFabric |
| Lossless network | PFC and ECN DCBX RDMA and ROCE PFC deadlock watchdog ROCE stream analysis |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
