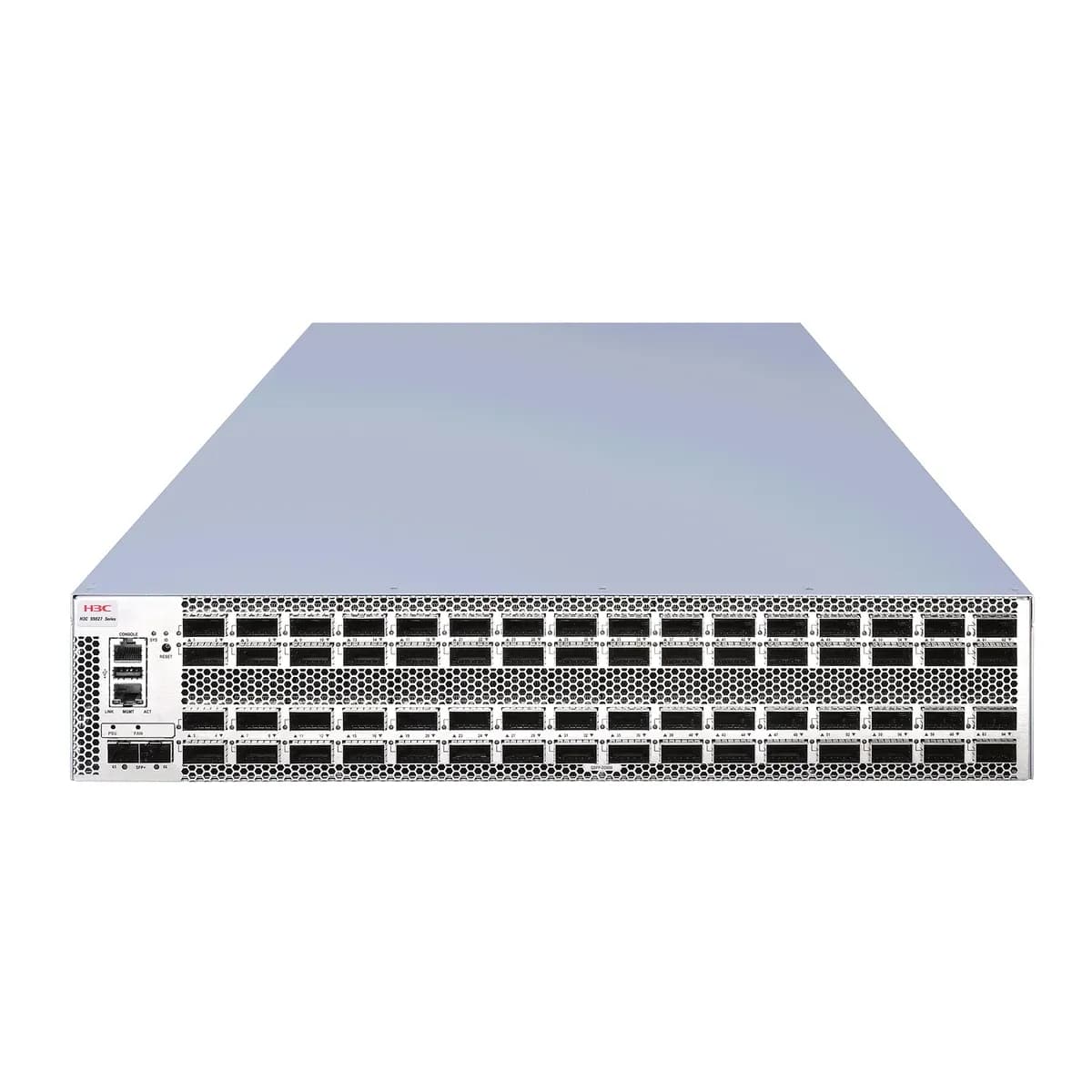

H3C S9827 Series Data Center Switches

Name: H3C S9827 Series Data Center Switches
Brand: H3C
SKU: H3C-S9827

Model: S9827Series: S9827

102.4 Tbps switches with 64 x 800G or 128 x 400G ports for AI and high-end data-centre fabrics.

Price on Request

Island-wide delivery to all 25 districts

Models	S9827-64E, S9827-64EP, S9827-128DH
Dimensions (W × D × H)	S9827-64E: 440×760×88.1 mm; S9827-64EP: 442×760×175 mm; S9827-128DH: 442×760×175 mm
Weight (Full loaded)	S9827-64E: 24.5kg; S9827-64EP: 40.5kg; S9827-128DH: ≤45kg
Serial console port	1
Out-of-band management port	1
USB2.0	1
QSFP-DD800	S9827-64E: 64; S9827-64EP: /; S9827-128DH: /
OSFP 800	S9827-64E: /; S9827-64EP: 64; S9827-128DH: /
400GE QSFP112	S9827-64E: /; S9827-64EP: /; S9827-128DH: 128
Supervisor Engine Module	S9827-64E: /; S9827-64EP: 1; S9827-128DH: 1
CPU	2.6GHz @4Cores
Flash/SDRAM	64GB/16GB
Latency	960ns
Switching capacity	102.4Tbps
Forwarding performance	21.1Bpps
Buffer	165.2M
Power module slot	S9827-64E: 2; S9827-64EP: 4; S9827-128DH: 4
Fan tray slot	S9827-64E: 4; S9827-64EP: 8; S9827-128DH: 8
Air flow direction	From front to rear
Input voltage (AC)	100V~240V
Input voltage (HVDC)	180V~320V
Static Power Consumption	S9827-64E: 2 AC:247W; S9827-64EP: 4 AC: 237W; S9827-128DH: 4 AC: 275W
Typical Power Consumption	S9827-64E: 2 AC:724W; S9827-64EP: 4 AC: 743W; S9827-128DH: 4 AC: 850W
Transceivers	VR/SR/DR/FR
Operating temperature	0°C to 40°C
Storage temperature	-40ºC～70ºC
Operating humidity	5% to 95%, noncondensing
Layer 2	VLAN based on port, protocol, and MAC.
