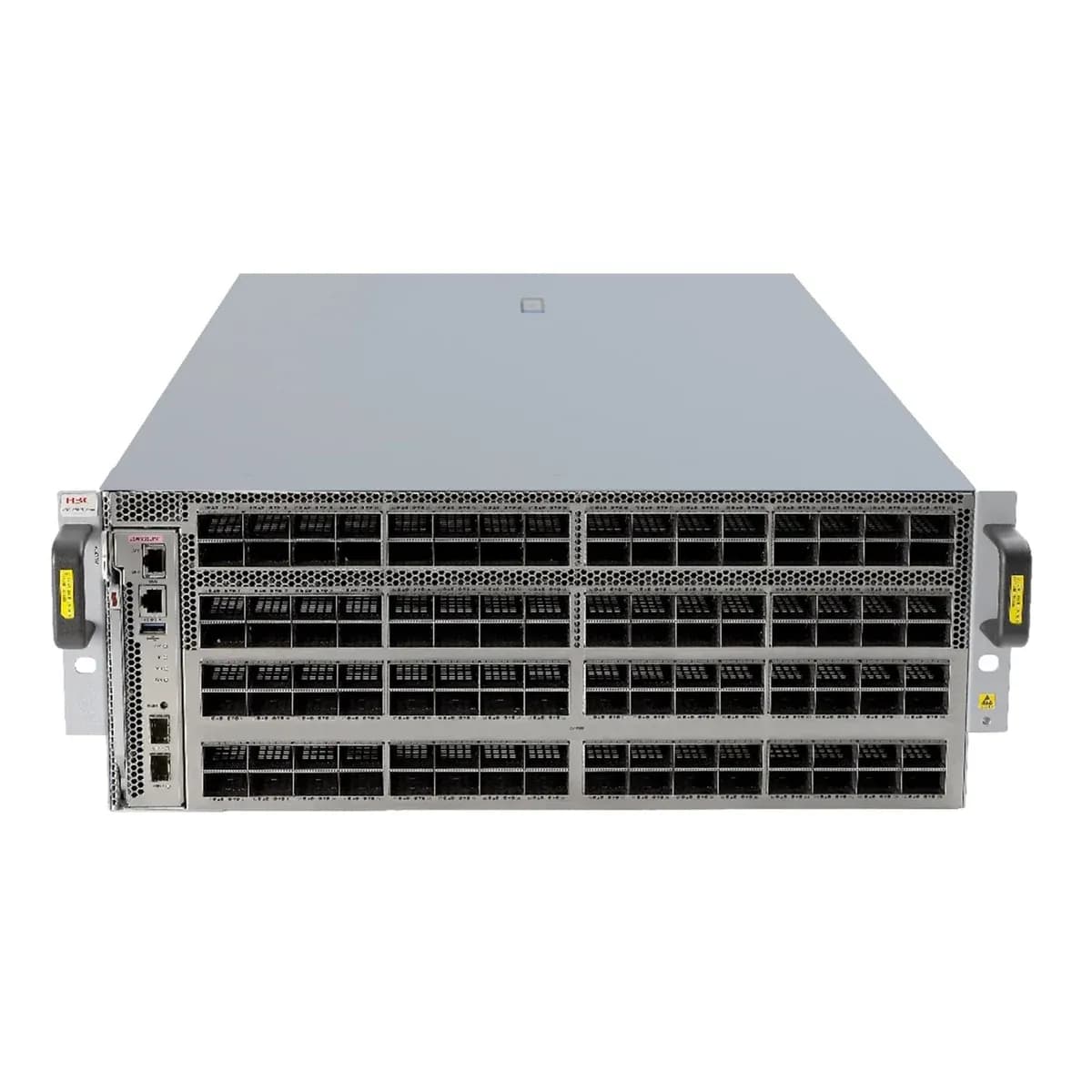

An ultra-high-density 128 x 800G switch for AI clusters, supporting up to 8K 800G NICs in one spine-leaf fabric.
Island-wide delivery to all 25 districts
| Dimensions (H × D × H,) | 1092mm*655mm*391mm ( with package) 175mm*447mm*760mm ( without package) |
|---|---|
| Weight (Full loaded) | 41.25Kg (fully configured, including MPU+ fan+power supply, excluding slide rail and accessories) 48.53Kg (fully configured + packaging materials) |
| Serial console port | 1 |
| Out-of-band management port | RJ45*1 |
| USB | 1 |
| OSFP 800 | 128(Supports port speed reduction to 400G, Supports port splitting: 2*100G, 2*200G, 2*400G, 4*200G, and 8*100G) |
| 10G SFP+ | 2 |
| CPU | 4 cores, 2.6GHZ |
| SDRAM | 16GB |
| Flash | 64GB |
| Switching capacity | 204.8 Tbps |
| Forwarding performance | 37.56 Bpps |
| Power module slot | 4 (2+2 redundancy) |
| Fan tray slot | 8 (7+1 redundancy) |
| Air flow direction | From front to rear |
| Typical Power Consumption | 1861W |
| Static power Consumption | 758W |
| Max power Consumption | 6141W |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -40ºC～70ºC |
| Operating humidity | 5% to 95%, noncondensing |
| Layer 2 | VLAN based on port, protocol, and MAC. |
| Availability | M-LAG |
| Lossless network | RDMA and ROCEv2 PFC and ECN ,AI ECN, PFC deadlock watchdog DCB/DCBX/ETS iNOFv4/ iNOFv6, IPCC, Supports intelligent network card docking with mainstream CX7/CX8 series. |
| Load balance algorithm | path navigation load balancing----Traffic Matrix load balancing and Adjust UDP source port number LBN/LBN enhanced，Spraylink |
| Programmability | Openflow1.3 Netconf, Ansible Python/TCL/Restful API to realize DevOps automated operation and maintenance |
| Traffic analysis | Sflow Netstream ROCEv2 stream analysis |
| IPv4 routing | static routes and default routes. RIP(Routing Information Protocol) v1/2 OSPF (Open Shortest Path First) v1/v2 ISIS(Intermediate System to Intermediate system) BGP (Border Gateway Protocol) Routing policy VRRP PBR |
