Price on Request

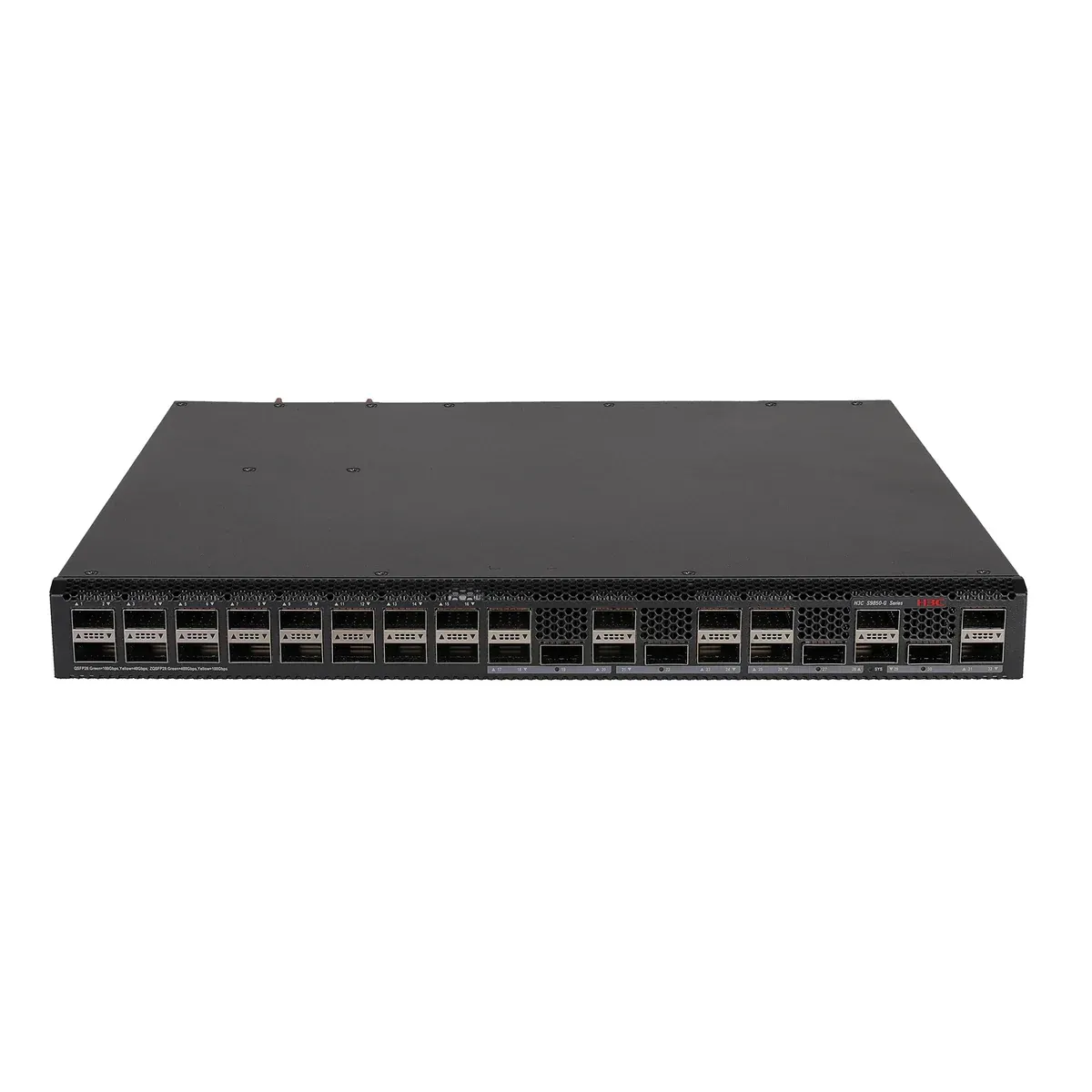

32 x 100G data-centre switches with breakout to 128 x 25G/10G and up to 6.4 Tbps forwarding.
Island-wide delivery to all 25 districts
| Models | S9850-4C, S9850-32H, S9850-32H-G |
|---|---|
| Chassis | S9850-4C: LS-9850-4C /LS-9850-4C-H1; S9850-32H: LS-9850-32H-H1; S9850-32H-G: LS-9850-32H-G |
| Dimensions (H × W × D) | S9850-4C: 88.1 × 440 × 660 mm (3.47 × 17.32 × 25.98 in); S9850-32H: 43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in); S9850-32H-G: 43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in) |
| Weight(Full loaded) | S9850-4C: ≤ 27 kg (59.53 lb); S9850-32H: ≤ 15 kg (33.07 lb); S9850-32H-G: ≤8kg(17.64 lb) |
| Serial console port | 1 |
| Out-of-band management port | S9850-4C: One GE copper port and one GE fiber port; S9850-32H: One GE copper port and one GE fiber port; S9850-32H-G: One GE fiber port |
| Mini USB console port | S9850-4C: 1; S9850-32H: 1; S9850-32H-G: - |
| USB port | 1 |
| QSFP-DD port | 4(max) |
| QSFP28/QSFP+ | S9850-4C: /; S9850-32H: 32; S9850-32H-G: 32(max) |
| SFP port | S9850-4C: 2; S9850-32H: 2; S9850-32H-G: - |
| Expansion slot | S9850-4C: 4; S9850-32H: -; S9850-32H-G: - |
| CPU | S9850-4C: LS-9850-4C-H1: 4 cores, 2.2 GHz; S9850-32H: LS-9850-32H-A：4 cores, 2.4 GHz LS-9850-32H-H1：4 cores, 2.2 GHz; S9850-32H-G: FT 2000, 2 cores, 2.2 GHz |
| Flash/SDRAM | S9850-4C: 8GB/8GB; S9850-32H: LS-9850-32H-A：4GB/8GB LS-9850-32H-H1：8GB/8GB; S9850-32H-G: 2GB/4GB |
| Latency | S9850-4C: < 1μs (64-byte ); S9850-32H: < 1μs (64-byte ); S9850-32H-G: 25GE< 3 μs(64 byte) 100GE< 1.2 μs(64 byte) |
| Switching capacity | 6.4 Tbps |
| Forwarding capacity | S9850-4C: 2024 Mpps; S9850-32H: 2024 Mpps; S9850-32H-G: 1020Mpps |
| Buffer | S9850-4C: 32M; S9850-32H: 32M; S9850-32H-G: 36M |
| AC-input voltage | S9850-4C: 90v to 264v; S9850-32H: 90v to 264v; S9850-32H-G: 90V~290V |
| DC-input voltage | S9850-4C: –40v to –72v; S9850-32H: –40v to –72v; S9850-32H-G: -36V~-72V |

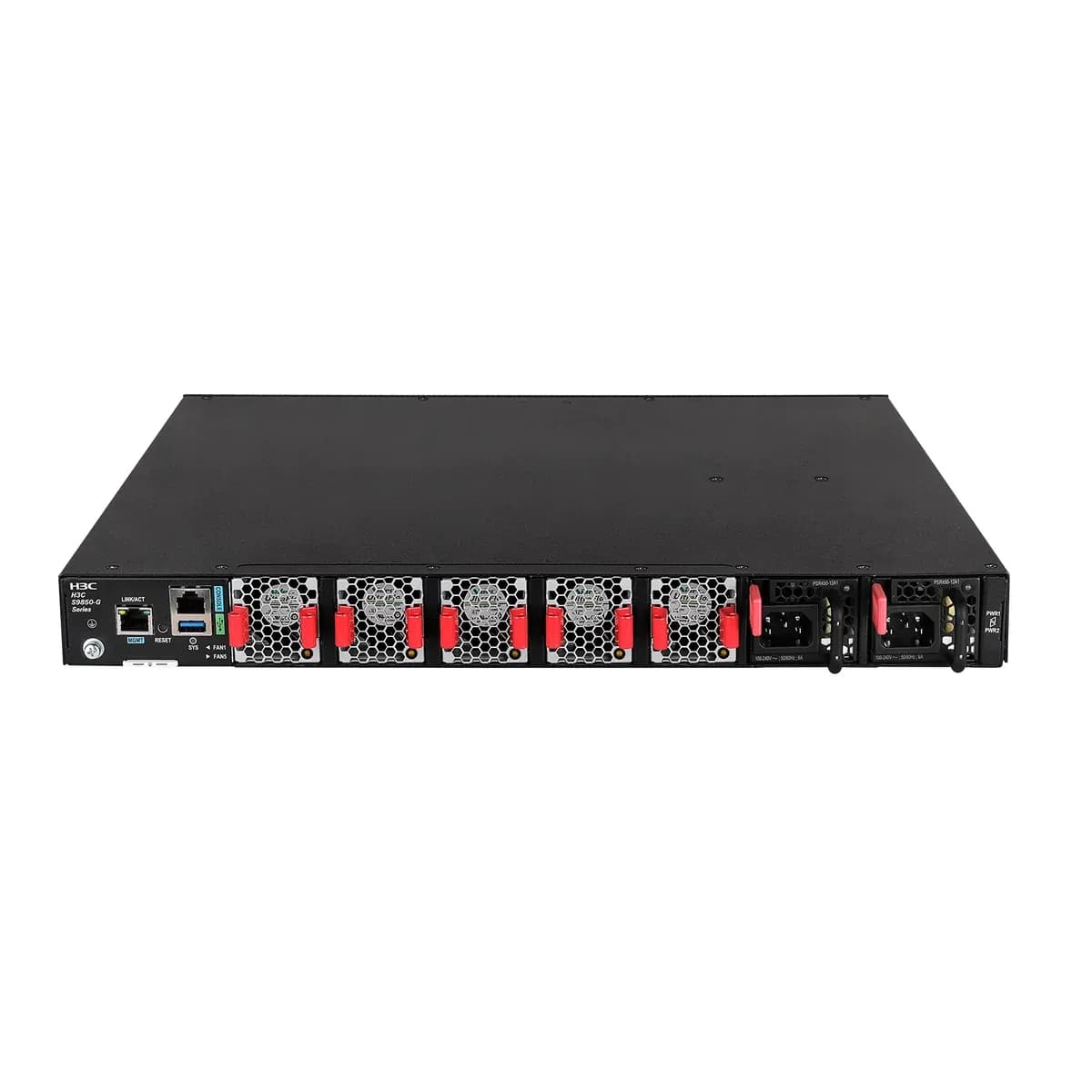

| Power module slot | S9850-4C: 4; S9850-32H: 2; S9850-32H-G: 2 |
| Fan tray slot | S9850-4C: 2; S9850-32H: 5; S9850-32H-G: 5 |
| Air flow direction | From front to rear or from rear to front |
| Typical power consumption | S9850-4C: With four LSWM18CQ modules: 355 W With four LSWM18CQMSEC modules: 443 W With four LSWM116Q modules: 311 W With four LSWM18QC modules: 251 W With four LSWM124XG2Q modules: 363 W With four LSWM124XGT2Q modules: 487 W With four LSWM124XG2QFC modules: 363 W With four LSWM124XG2QL modules: 275 W With four LSWM124TG2H modules: 355 W With four LSWM116FC modules: 311 W; S9850-32H: Single AC: 198 W Dual AC: 210 W Single DC: 197 W Dual DC: 208 W; S9850-32H-G: Single AC: 222 W Dual AC: 227 W Single DC: 232W Dual DC: 234W |
| Maximum power consumption | S9850-4C: With four LSWM18CQ modules: 688 W With four LSWM18CQMSEC modules: 748 W With four LSWM116Q modules: 616 W With four LSWM18QC modules: 496 W With four LSWM124XG2Q modules: 616 W With four LSWM124XGT2Q modules: 868 W With four LSWM124XG2QFC modules: 616 W With four LSWM124XG2QL modules: 520 W With four LSWM124TG2H modules: 688 W With four LSWM116FC modules: 616 W; S9850-32H: Single AC input: 376 W Dual AC inputs: 385 W Single DC input: 373 W Dual DC inputs: 377 W; S9850-32H-G: Single AC input: 400 W Dual AC inputs: 390 W Single DC input: 426 W Dual DC inputs: 414 W |
| Typical thermal consumption | S9850-4C: With four LSWM18CQ modules: 1211 BTU/hr With four LSWM18CQMSEC modules: 1512 BTU/hr With four LSWM116Q modules: 1061 BTU/hr With four LSWM18QC modules: 856 BTU/hr With four LSWM124XG2Q modules: 1239 BTU/hr With four LSWM124XGT2Q modules: 1662 BTU/hr With four LSWM124XG2QFC modules: 1239 BTU/hr With four LSWM124XG2QL modules: 938 BTU/hr With four LSWM124TG2H modules: 1211 BTU/hr With four LSWM116FC modules: 1061 BTU/hr; S9850-32H: Single AC input: 676 BTU/hr Dual AC inputs: 717 BTU/hr Single DC input: 672 BTU/hr Dual DC inputs: 710 BTU/hr; S9850-32H-G: Single AC: 757 BTU/hr Dual AC: 7 |
| MTBF(years) | S9850-4C: 45.8; S9850-32H: 27.2; S9850-32H-G: 64.02 |
| MTTR(hour) | 1 |
