H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

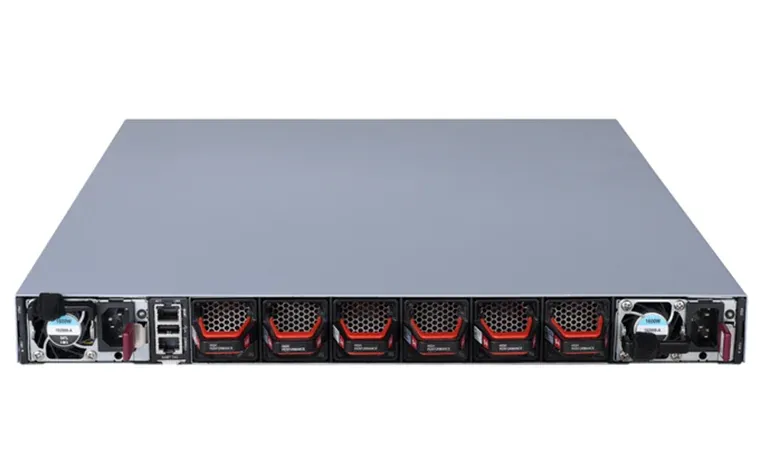

An 800G/400G AI data-centre switch on Comware V9 with a single-chip design, 32 Tbps capacity and full lossless RoCE.
Island-wide delivery to all 25 districts
| Dimensions (W × D × H) | 442×550×44 mm |
|---|---|
| Weight (Full loaded) | 12.3kg |
| Switching capacity | 32 Tbps |
| Forwarding capacity | 5.4 Bpps |
| Latency | 1.2 us ~1.4 us |
| Serial console port | 1 |
| Out-of-band management port | 1*1000M copper port |
| USB port | 1*USB2.0 port |
| 800GE OSFP800 | 8 |
| 400GE QSFP112 | 24 |
| 10GE SFP+ | 2 |
| AC-input voltage | 200-240V |
| HVDC-input voltage | 240V |
| Power module | 2*1600W power supply (1+1 redundancy) |
| Fan tray | 6* Hot-swappable fan, front to rear(5+1 redundancy) |
| CPU | 2.6GHZ@4 CORE |
| Flash | 64G |
| RAM | 16G |
| MTBF (year) | 55.87 |
| MTTR (year) | 0.5 |
| Power consumption(static) | 176W |
| Power consumption(typical) | 401W |
| Power consumption(max) | 1120W |
| Thermal consumption(static) | 601 BTU/hr |
| Thermal consumption(typical) | 1368 BTU/hr |
| Thermal consumption(max) | 37943 BTU/hr |
| Operating temperature | 0ºC～40ºC |
| Operating humidity | 5～95%RH |
| Part numbers | LS-S9857-24DH8EP, FAN-40B-1-G, PSR1600-12A-S-B |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
