H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

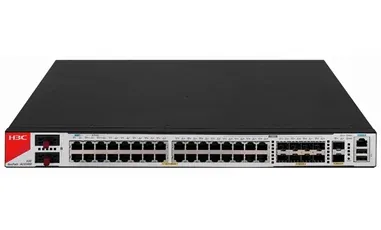

An application control gateway that combines app control, behaviour auditing and bandwidth optimisation at key network points.
Island-wide delivery to all 25 districts
| Product model | ACG1000-AI-30 / ACG1000-AI-50 |
|---|---|
| Fixed service interfaces | The device features 18 Gigabit copper interfaces, 2 ten-gigabit fiber interfaces, 4 bypass interfaces, 8 combo interfaces, and 2 management interfaces. / The device features 16 Giga copper interfaces, 6 Giga fiber interfaces, 2 ten-Giga fiber interfaces, 4 combo interfaces, and 1 management interface. |
| Console port | 1 |
| Memory | 4 GB |
| Storage | Two M.2 slots for hard disks / One 2.5-inch hard disk slot |
| Mean time between failures (MTBF) | ≥ 100000 hours |
| Default configuration weight | 3.7 Kg / 5.4 Kg |
| Dimensions (Length × Height × Depth/mm) | 440*43.6*360mm / 440*435mm |
| Temperature | Operating: 0 to 45°C Non-operating: -40 to 70°C / Operating: Without hard disks: 0°C to 45°C With hard disks: 5°C to 40°C. Non-operating: –40°C to 70°C |
| Humidity | Operating: 5% to 95%, non-condensing Non-operating: 5% to 95%, non-condensing / Operating: Without hard disks: 5%RH to 95%RH With hard disks: 10%RH to 90%RH Non-operating: 5%RH to 95%RH |
| Power supply | Dual power supplies / Optional dual power supplies |
| Maximum input current | 1A / 2A |
| Maximum power supply (W) | 70 W / 150 W |
| Hardware bypass | Yes / No |
| Level-1 SPEC | Level-2 SPEC / Level-3 SPEC / Level-4 SPEC |
| Network features | Deployment mode / Bypass / Monitors mirrored traffic on a single interface of a switch. |
| Serial | Supports transparent, routed, hybrid (transparent + routed), multi-group bridging, and multi-port bridging configurations. |
| Hybrid | Supports a mix of bypass and serial deployment strategies. |
| Port mirroring | Mirroring interface / Physical interfaces support functioning as both mirroring interfaces and mirrored interfaces. |
| Mirroring features | Supports mirroring the traffic from multiple physical interfaces to a single interface. Supports mirroring based on all traffic of an interface, as well as upstream or downstream traffic specifically. |
| DHCP | DHCP service type / DHCP server DHCP relay proxy |
| IPv4 routes | Routing table / Displays device routing information. |
| Advanced route attributes | Supports asymmetric routing. Command line support for enforced source ingress and egress. |
| Static routing | Supports multi-link load balancing based on routing weights. |
| Policy-based routing | Policy routing based on 5-tuple, application, and time. |
| ISP routing | Built-in ISP information for telecommunications, Unicom, Mobile, and education networks; ISP information can be customized. |
| RIP | Supports RIPv1 and RIPv2. |
| OSPF | Supports default route advertisement and route redistribution. |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
