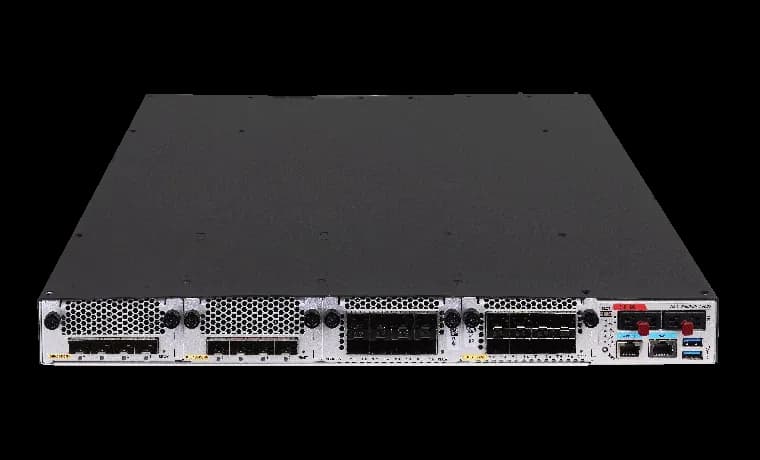

1U application delivery gateways for finance, energy, government and enterprise data centres.
Island-wide delivery to all 25 districts
| Models | L5000-AD190-G, L5000-AD520-G, L5000-AD540-G |
|---|---|
| Dimensions (W × D × H) | 440mm×560mm×44mm |
| USB | 2 |
| Weight | 7.5 Kg |
| Power supply | L5000-AD190-G: Dual hot-swappable，AC or DC; L5000-AD520-G: Dual hot-swappable, AC or DC; L5000-AD540-G: Dual hot-swappable, AC or DC |
| Power consumption | 110.86 W |
| Heat consumption(BTU/h) | 32.48 |
| Ports | 1 × Console Port 1 × GE RJ45 MGMT Ports |
| Expansion slots | 4 |
| Interface modules | 8 × GE Copper Interface Module 8 × GE SFP Interface Module 4 × 10GE SFP+ Interface Module 4 × 100G (backward compatible with 40G) + 16 × 10G +16 × GE Interface Module |
| Storage | 480G SSD/2TB SSD |
| CPU | 8 Cores |
| Flash | 8GB |
| Memory | L5000-AD190-G: 16GB; L5000-AD520-G: 32GB; L5000-AD540-G: 64GB |
| Temperature | Operating: 0°C～45°C Storage: Temperature：-40°C～70°C |
| Environmental | EU RoHS Compliance |
| EMC | FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB 9254 GB 17625.1 YD/T 993 |
| Safety | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1 AS/NZS 60950-1 FDA 21 CFR Subchapter J GB 4943.1 |
| Server Load Balancing Scheduling Algorithms | Round robin Weighted round robin Least connections Weighted least connections Random Weighted random HASH source IP hash HASH destination IP hash HASH source IP port hash HASH UDP payload hash Local priority HTTP content |
| Link Load Balancing Scheduling Algorithms | Round robin algorithm Weighted round robin algorithm Least connection algorithm Weighted least connection algorithm Random algorithm Weighted random algorithm Source IP address hash algorithm Destination IP address hash algorithm Source IP address and port hash algorithm Dynamic proximity algorithm Weighted bandwidth algorithm Maximum bandwidth algorithm Local priority algorithm |
| Global Server Load Balancing Scheduling Algorithms | Weighted round robin algorithm Random algorithm Static proximity algorithm |
| Sticky Methods for Server Load Balancing | Source IP-based Source port-based Destination IP-based Destination port-based Source IP and source port-based Destination IP and destination port-based Source IP, source port, destination IP, and destination port-based HTTP header-/HTTP cookie-/HTTP URL-/HTTP content-/SSLID-based SIP-based RADIUS-based Diameter |
| Health Monitoring | Ping (ICMP), TCP, HTTP, FTP, SSL, RADIUS, DNS |
| Alarm and Report | Supports sending alarm notifications via syslog, SNMP, and email, and also supports the function of exporting alarm reports. |
| Support for Virtual Service/Real Service/Real Service Group | Supports virtual service, real service, and real service group |
| HTTP Policy | Match rules: HTTP header HTTP cookie HTTP URL HTTP content HTTP method HTTP class Generic-class Actions: Inserting an HTTP header Rewriting an HTTP header Deleting an HTTP header Rewriting the SSL URL location Rewriting the URL in the Location header of HTTP responses from the server Specifying an SSL client policy Specifying a real service group |
| Generic Policy | Match rules: Source IP Generic-class Actions: Specifying an SSL client policy Setting a ToS field value for IP packets Specifying a real service group |
| HTTP Parameter Profile | Case sensitivity Maximum length of HTTP headers that can be parsed Maximum length of HTTP contents that can be parsed Reuse of the connection between LB device and server Insert, delete, or modify operation for the header of each HTTP request Load balancing for each HTTP request Delimiter that separates secondary cookies in URLs Start delimiter for secondary cookies in URLs. Action to take when a URL or cookie exceeds the maximum length |
