Multi-core, fully distributed high-end routers for carrier, government, finance and enterprise cores, with industry-leading encryption performance.
Island-wide delivery to all 25 districts

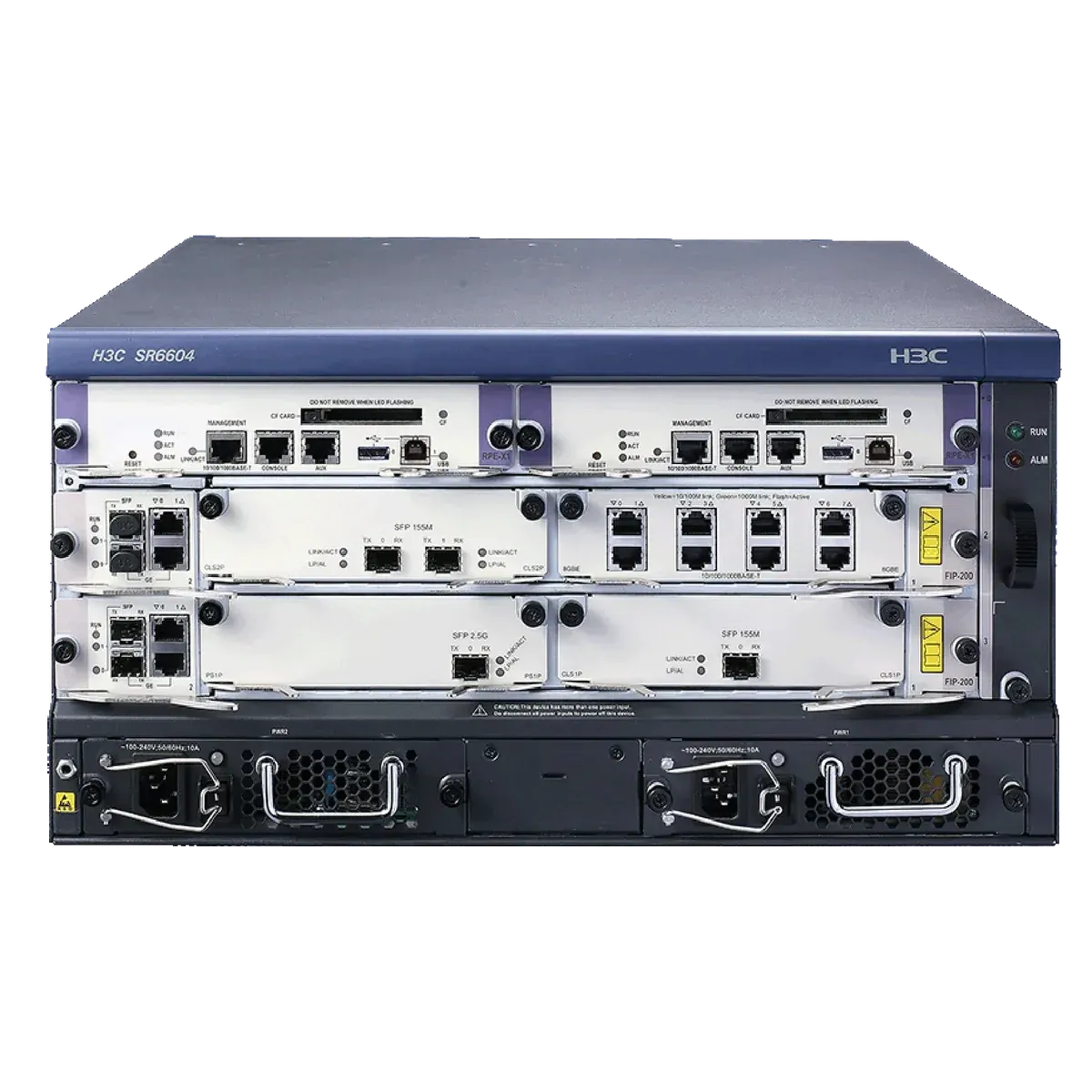

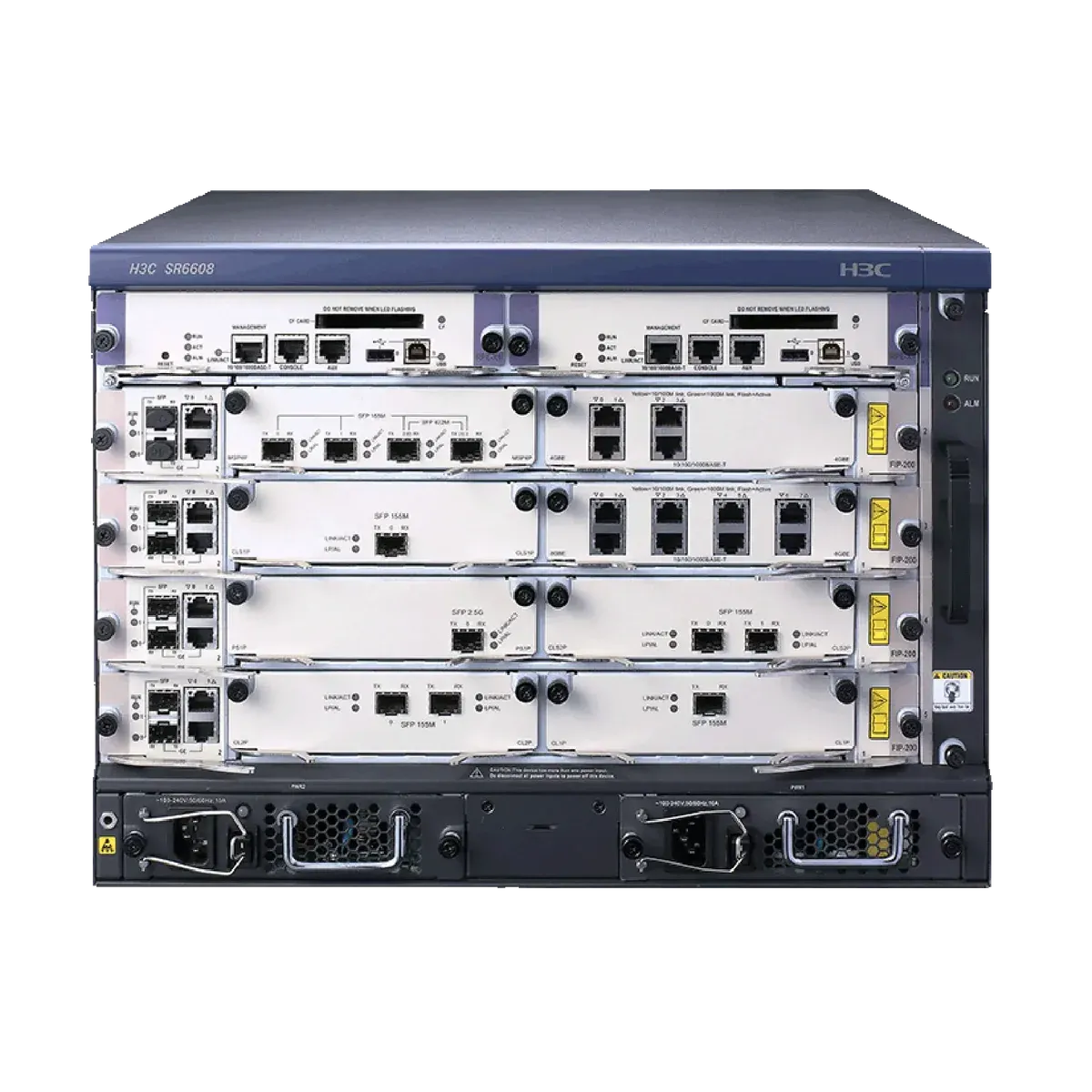

| Models | SR6604, SR6608 |
|---|---|
| Chassis | Integrated chassis, which can be installed in a 19-inch rack. Distributed service architecture. |
| MPU slots | 2 (1+1 redundancy) |
| Maximum FIP modules | SR6604: 2; SR6608: 4 |
| IP forwarding performance (IMIX) | FIP-260: 34Gbps FIP-380: 40Gbps FIP-660: 80Gbps SAP-XP4GE32: 40Gbps |
| Forwarding performance with ACL+NAT+QoS (IMIX) | FIP-260: 15Gbps FIP-380: 20Gbps FIP-660: 60Gbps SAP-XP4GE32: 20Gbps |
| IPsec forwarding performance (1400byte) | FIP-260:10Gbps FIP-380: 14Gbps FIP-660: 35Gbps SAP-XP4GE32: 12Gbps |
| IPsec tunnel | RPE-X5E: 50,000 RPE-X5: 50,000 RPE-X3: 10,000 |
| AD-WAN typical encryption performance (IMIX) | FIP-380: 2Gbps FIP-660: 8Gbps |
| Power module | 1+1 redundancy 650W/1200W |
| Rated AC power | 100 to 240 VAC @ 50 Hz/60 Hz |
| Rated DC power | –48 to –60 VDC |
| Operating temperature | 0°C to 45°C |
| Operating altitude | < 5000m |
| Operating humidity | 5 to 95%, non-condensing |
| Size | SR6604: 436mm×480mm×220mm(5U); SR6608: 436mm×480mm×308mm(7U) |
| MTBF | SR6604: 31.19 years; SR6608: 26.8 years |
| MTTR | 1 hour |
| EMC standards compliance | FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI-CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1 |
| Safety standards compliance | FDA 21 CFR Subchapter J UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 |
| Environment standards compliance | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14 |
| Shock and vibration standards compliance | IEC 60068-2-64 IEC 60068-2-31 |
| Layer 2 protocol | ARP: Dynamic ARP, static ARP, proxy ARP, gratuitous ARP, ARP Snooping, ARP Detection. Ethernet and sub interface VLAN PPPoE server QinQ termination VLAN/Super VLAN/VLAN Mapping Port mirroring LLDP, DLDP. STP/RSTP/MSTP LACP Broadcast suppressing PPP, MP, HDLC PPPoE Server, PPPoE Client L2TP |
| IP service | TCP, UDP, IP option, and IP unnumber Policy routing Layer 3 Ethernet interface binding |
| IP routing | Static routing RIPv1, RIPv2, OSPFv2, BGP, IS-IS, EIGRP Recursive route ECMP UCMP BGP GTSM ISIS MTR |
| IPv4 multicast | IGMPv1/v2/v3 PIM-DM, PIM-SM, PIM-SSM MSDP MBGP Static multicast routing Multicast host tracking |
| IP application | DHCP server, DHCP relay, and DHCP client DNS client NTP server and client Telnet server and client TFTP server and client FTP server and client UDP helper |
| IPv6 | Basic functions: IPv6 ND, IPv6 PMTU, dual stack forwarding, IPv6 ACL, and DHCPv6 server/proxy IPv6 tunnel technologies, IPv6 manual tunnels, IPv6-over-IPv4, GRE tunnels, automatic IPv4-compatible IPv6 tunnels, 6to4 tunnels, ISATAP tunnels, and 6PE 6VPE (IPv6 MPLS L3VPN) NATPT Static routing Dynamic routing protocols: RIPng, OSPFv3, IS-ISv6, and BGP4+ IPv6 multicast protocols: MLDv1/v2, PIM6-DM, PIM6-SM, and PIM6-SSM |
