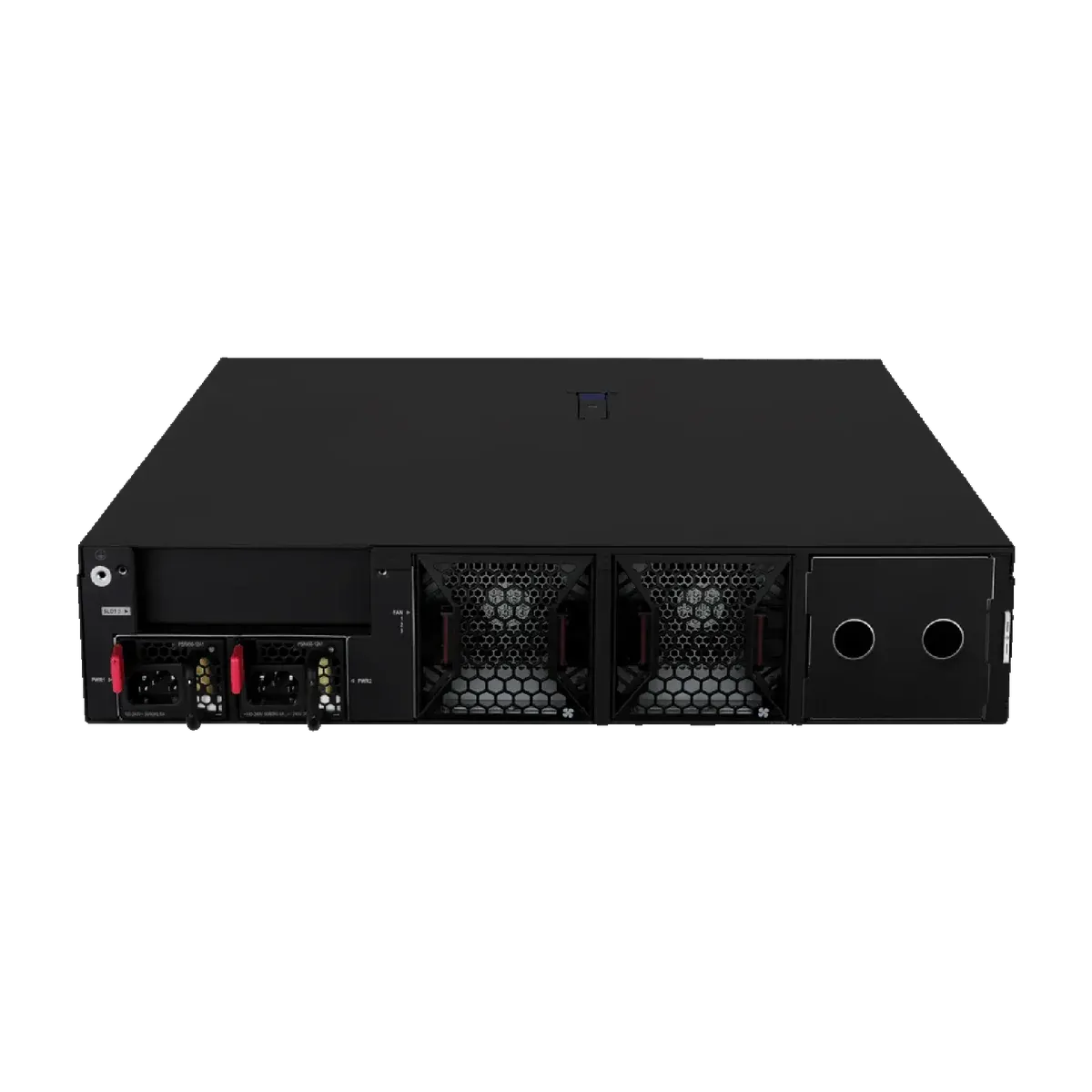

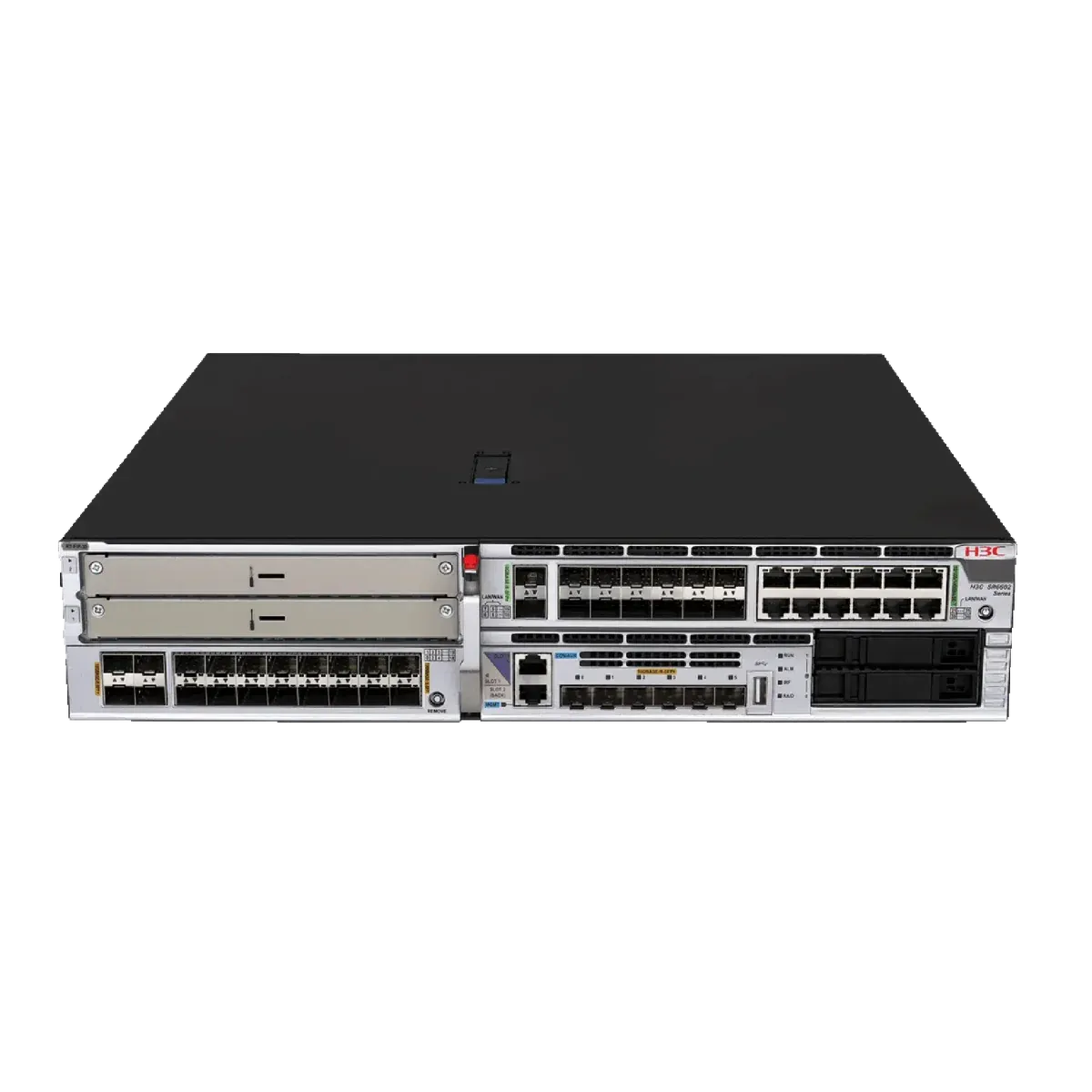

H3C SR6602-I AI ICT Converged Gateway

Name: H3C SR6602-I AI ICT Converged Gateway
Brand: H3C
SKU: H3C-SR6602-I

Model: SR6602-ISeries: SR6602

A router that combines high-performance WAN routing with on-board Xeon compute, storage and GPU expansion for edge services at the branch.

Price on Request

Island-wide delivery to all 25 districts

Models	SR6602-I, SR6602-IE
IP forwarding performance (IMIX)	SR6602-I: 35Gbps; SR6602-IE: 75Gbps
Forwarding performance with ACL+NAT+QoS (IMIX)	SR6602-I: 35Gbps; SR6602-IE: 50Gbps
IPsec forwarding performance (1400byte)	SR6602-I: 20Gbps; SR6602-IE: 35Gbps
AD-WAN typical encryption performance (IMIX)	SR6602-I: 6Gbps; SR6602-IE: 10Gbps
CPU	SR6602-I: 8 cores, 2.5 GHz; SR6602-IE: 12 cores, 2.3 GHz
Built-in WAN port	6 × 10GE SFP+ ports
Built-in LAN port (supports LAN/WAN switching)	14 × 10GE SFP+ ports and 12 × GE RJ-45 ports
FIP slot	1 × FIP slot (supports the FIP-30)
PCIe slot	1
Memory slot	4CH DDR4 RDIMM slots
Memory size (default/maximum)	SR6602-I: 8 G/128 G; SR6602-IE: 32 G/128 G
Built-in storage	SR6602-I: 4 GB; SR6602-IE: 64 GB
External SATA drive slot	2 × 2.5-inch slots
Internal M.2 SSD slot	1
USB 3.0 port	1
Console port	1
Open-source application management platforms supported	KVM, Docker
Maximum power consumption (aggregation mode/converged mode)	SR6602-I: 224 W/558 W; SR6602-IE: 239 W/567 W
Power supply redundancy	Supported
Removable fan trays	2
Power input voltage	AC: 100 V to 240 V DC: –48 V to –60 V HVDC: 240 V to 380 V
Height	2 RU
Dimensions (H × W × D)	88 × 440 × 480 mm (3.46 × 17.32 × 18.90 in)
Operating temperature	Without drives or GPUs: 0ºC to 45ºC With drives or GPUs: 0ºC to 40ºC
Operating altitude	< 5000m
Operating humidity	5 to 95%, non-condensing
Storage temperature	–40ºC to 70ºC
