H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

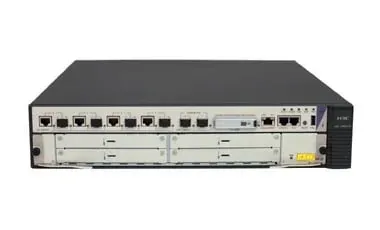

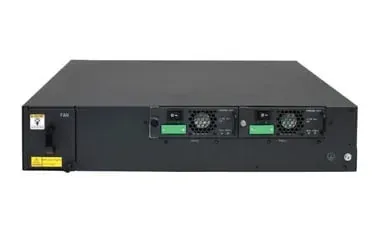

A 2U high-end router for large branches and regional aggregation, with flexible interface modules and broad legacy WAN support.
Island-wide delivery to all 25 districts
| Models | SR6602-X1, SR6602-X2 |
|---|---|
| Forwarding performance | 240Mpps |
| Fixed Interface | SR6602-X1: 4 GE optical/electrical Combo; SR6602-X2: 4 GE optical/electrical Combo +2×10GE SFP+ |
| Slot | 1, support FIP-10/20 |
| Service module slots | FIP-10 supports four MIM slot, FIP-20 supports two HIM/MIM slot |
| Memory | SR6602-X1: Default 2GB, up to 4GB; SR6602-X2: Default 4GB, up to 4GB |
| Flash | 8M |
| USB | 1 |
| AUX | 1 |
| Concole port | 1 |
| In-Band management port | 1 |
| Interfaces | 10GE 10/100/1000BASE-T RJ45 10/100BASE-TX RJ45 100/1000BASE-X SFP E3/CE3 T3/CT3 E1/CE1 T1/CT1 SAE (Synchronous mode) OC3-CPOS OC3-POS OC12-POS OC48-POS OC3-ATM RPR |
| Dimensions (W × D × H) | 440×480×88mm |
| Weight | 12.1kg |
| Rated input voltage | AC Rated voltage range: 100 ~ 240V 50/60Hz DC Rated voltage range: -48 ~-60V |
| Maximum power | 300W |
| Operating temperature | : 0~45℃ |
| Operating humidity | 5~95% (non-condensing) |
| Operating altitude | -60m ~ 4km |
| Layer 2 protocol | Dynamic and static ARP Proxy ARP Multicast ARP Gratuitous ARP Ethernet, sub-interfaces VLAN IEEE802.3ad LACP Layer 2 aggregation QinQ termination PPPoE Server PPP MP (Hardware MP in CL2P/CL1P, and software MP in other modules) FR protocol MFR protocol FR switching HDLC protocol POS trunk (POS link aggregation) Layer 3 Ethernet interface LLDP ATM: IPoA, PPPoA server, IPoEoA, PPPoEoA server |
| IP services | TCP, UDP, IP Option, IP unnumbered Policy Based Routing Layer 3 Ethernet interfaces binding POS interface binding |
| IP routing | Static Routing Dynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-IS Route iteration Routing Policy ECMP (Equal Cost Multipath) UCMP (Unequal Cost Multipath) BGP GTSM ISIS MTR (Multitopology Routing) |
| IPv4 multicast | IGMPv1/v2/v3 PIM-DM, PIM-SM, PIM-SSM MSDP MBGP Multicast Static Routes Multicast host tracking function |
| IP application | DHCP Server/Relay/Client DNS Client NTP Server/Client Telnet Server/Client TFTP Client FTP Server/Client UDP Helper |
| IPv6 | Basic features: IPv6 ND, IPv6 PMTU, dual-stack forwarding, IPv6 ACL, DHCPv6 Server/Proxy IPv6 tunnel: manually configured IPv6 tunnel, IPv6-over-IPv4, GRE tunnel, automatic IPv6 over IPv4 tunnel, 6to4 tunnel, ISATAP tunnel, 6PE 6VPE (IPv6 MPLS L3VPN) NATPT Static Routing Dynamic routing protocols: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 multicast protocol: MLDv1/v2, PIM6-DM, PIM6-SM, PIM6-SSM |
| QoS | Traffic classification: based on port, MAC address, IP address, IP priority, DSCP priority, TCP / UDP port number, protocol type and more Traffic policing: CAR rate limit, granularity configurable Rate limiting based on source/destination address (supporting subnet-based rate limiting) GTS traffic shaping Priority Mark / Remark Queue scheduling mechanisms: FIFO, PQ, CQ, WFQ, RTPQ, CBWFQ Congestion avoidance algorithm: Tail-Drop, WRED LR rate limiting MPLS QoS IPv6 QoS Hierarchical QoS (H-QoS) QPPB (QoS Policy Propagation on BGP) |
| Security | ACL ACL acceleration Time-based access control Packet filtering firewall Stateful firewall ASPF TCP attack prevention on local host Control Plane rate limiting Virtual defragment reassembly URPF Web Filtering Hierarchical user management and password protection AAA RADIUS TACACS Portal authentication (supporting collaboration with EAD, portal authentication bypass) PKI certificates SSH 1.5/2.0 RSA IPSec, IPSec multi-instance, IKE BGP/BGP4 + support GTSM Password Control Attack detection and protection |
| IP features | NAT, NAT multi-instance, VPN NAT, NAT session log Connection limit GRE tunnel (supporting point to multi-point applications) L2TP tunnel NetStream (supporting v5/v8/v9 packet frames; supporting IPv4, IPv6 and MPLS packets) DVPN (Dynamic VPN) EVI (Ethernet Virtualization Interconnect) |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
