H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

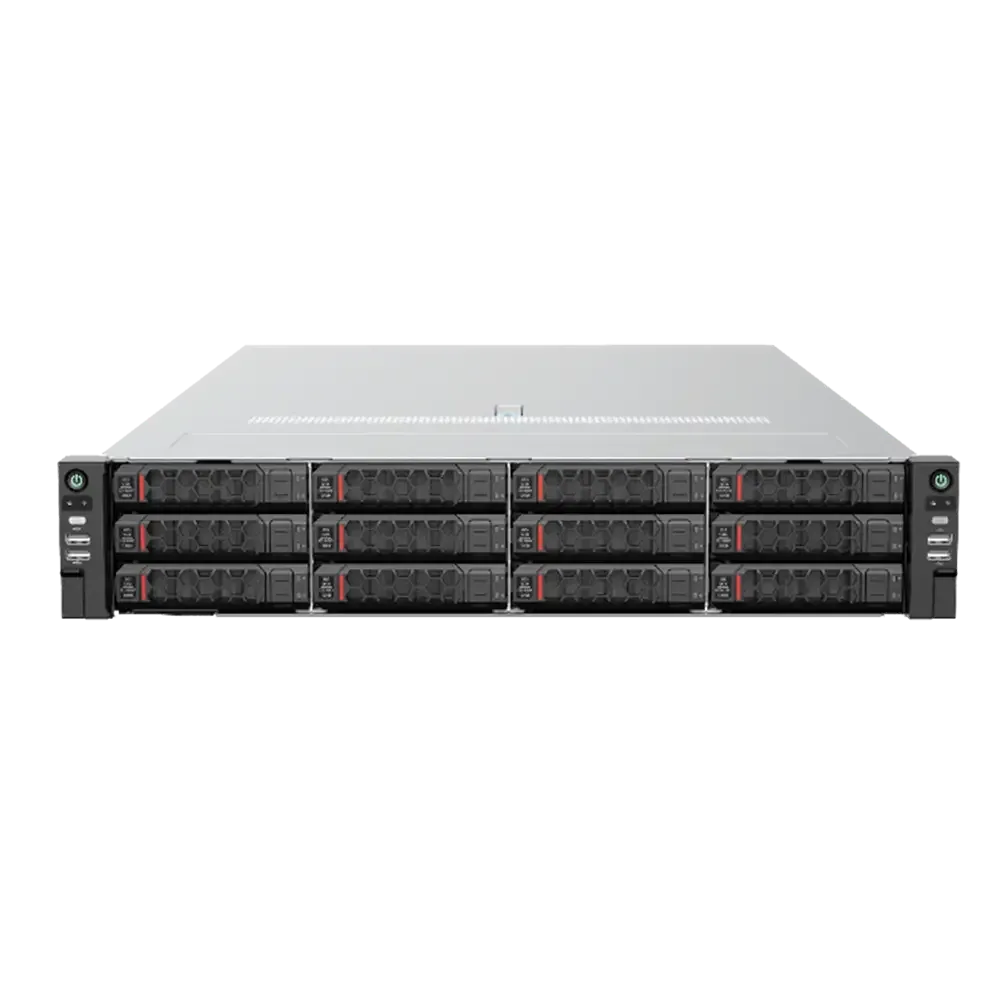

A compact multi-node HCI appliance on 4th Gen Intel Xeon Scalable processors, aimed at branch offices and smaller clusters that need full UIS features.
Island-wide delivery to all 25 districts
| Processor (single node) | The system supports two Intel® Xeon® 4th Gen Scalable Processors, each with up to 32 cores and a maximum power of 270W. |
|---|---|
| Chipset (single node) | Intel® C741 |
| Memory (per node) | The system supports up to 16 DDR5 memory slots (designed to be compatible with 32 slots) with a maximum speed of 4800 MT/s. It also supports RDIMM and delivers a maximum capacity of 1TB for dual-processor configurations. |
| Storage controller (single node) | Optional HBA cards and storage controllers that support dedicated slots or standard PCIe slots. |
| FBWC (single node) | Optional up to 4GB cache and supercapacitor protection. |
| Storage (single node) | Supports up to 10 drives (6 x 3.5-inch drives and 4 x E1.S drives). Supports SATA HDD/SSD drives and up to 4 E1.S slots. |
| Network (single node) | The appliance has one built-in 1Gbps dedicated management network port. The system supports two OCP3.0 network adapter slots. You can optionally expand it with 4 × 1GE copper ports, 2 × 10GE copper/fiber ports, or 2 × 25GE fiber ports. Optional standard PCIe slot-based network adapters, supporting 1/10/25 GE network adapters and smart network adapters. |
| Expansion slots (single node) | The appliance supports 2 standard PCIe slots and 2 onboard OCP 3.0 slots. The standard slots support PCIe 5.0. |
| I/O Ports (single node) | The appliance supports 1 rear VGA port, 5 USB ports (2 front, 2 rear, and 1 built-in), and 1 dedicated rear Type-C management port. |
| GPU support (single node) | Supports one single-width GPU. |
| Management (single node) | BMC agentless management tool (with dedicated management port) Optional U-Center data center management platform |
| Power and heat dissipation (single node) | Optional platinum-grade 800W/1200W/1300W 1+1 redundant power supplies. Supports hot-swappable redundant fan modules. |
| Certification | Supports certifications such as CCC. |
| Operating temperature | 5°C to 40°C (The supported operating temperature varies by configuration. For more information, see the product technical documentation.) |
| Dimensions (H × W × D) | 2U standard chassis: 87.5mm × 447.4mm × 833mm (H × W × D (excluding the security bezel) 87.5mm × 447.4mm × 874mm (H × W × D) (including the security bezel) |
| Technical service | 3 years, 5×9, next business day response (NBD) |
| Node interaction | HA of two nodes. |
| Maintainability | The lower node supports hot swapping for maintenance without affecting the operation of the other node. |
