H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

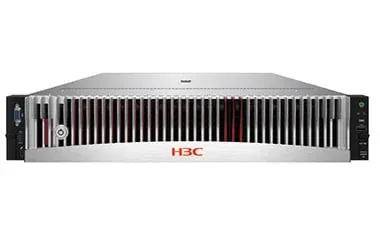

A 2U HCI node on 3rd Gen Intel Xeon Scalable processors, pairing large memory and storage capacity with H3C UIS software.
Island-wide delivery to all 25 districts
| Compute | The system supports up to two 3rd Gen Intel® Xeon® Scalable processors or Montage Jintide® processors, with a maximum of 40 cores per processor and a peak power of 270W. |
|---|---|
| Memory | A maximum of 32 DDR4 memory modules with a maximum speed of 3200MT/s, supporting RDIMM and LRDIMM. 16 Intel® Optane™ Persistent Memory PMem 200 Series modules. The maximum supported memory capacity reaches up to 12TB. |
| Storage controller unit | The system comes with an onboard array controller that supports SATA RAID 0, RAID 1, RAID 10, and RAID 5. Optional HBA and array controllers that support standard PCIe slots. |
| Storage | The system supports up to 12 front LFF drives, 4 internal expansion LFF drives, and 4 rear expansion LFF drives plus 4 SFF drives. The system supports up to 25 front SFFs, 8 internal expansion SFFs, and 4 rear expansion LFFs plus 4 SFFs. The system supports SAS/SATA HDD/SSD drives and front/built-in NVMe drives. It accommodates up to 28 NVMe drives and supports PCIe NVMe storage accelerator modules. Supports SATA and PCIe M.2 options, and dual Micro SD card kits. |
| Network | The appliance has one built-in 1Gbps dedicated management network port. The system supports up to two OCP3.0 network adapters. You can optionally expand it with 4×1GE copper ports, 2×10GE copper/fiber ports, or 2×25GE fiber ports. Optional standard PCIe slot-based network adapters, supporting 1/10/25/40/100/200 GE network adapters and IB cards. |
| Expansion slots | Up to 14 standard PCIe 4.0 slots. |
| I/O Ports | The appliance comes with 1 front VGA port, 1 rear VGA port, and 1 serial port. It also provides 6 USB 3.0 ports (2 front, 2 rear, and 2 built-in) and 1 dedicated front management interface. |
| GPU support | Supports 4 double-width GPUs or 14 single-width GPUs. |
| Power and heat dissipation | Optional platinum-grade 550W/800W/850W/1200W/1300W/1600W/2000W 1+1 redundant power supplies, and optional titanium-grade power supplies. Optional 800W -48V/336V DC power supplies, supporting 1+1 redundancy. Supports hot-swappable redundant fan modules |
| System security | Supports secure chassis, TCM/TPM security modules, and two-factor authentication. |
| Hardware specifications Chassis depth | 2U chassis 87.5mm × 445.4mm × 748mm (H × W × D (excluding the security bezel) 87.5mm × 445.4mm × 776mm (H × W × D (with the security bezel) |
| Operating temperature | 5°C to 45°C (The supported operating temperature varies by configuration. For more information, see the product technical documentation.) |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
