H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

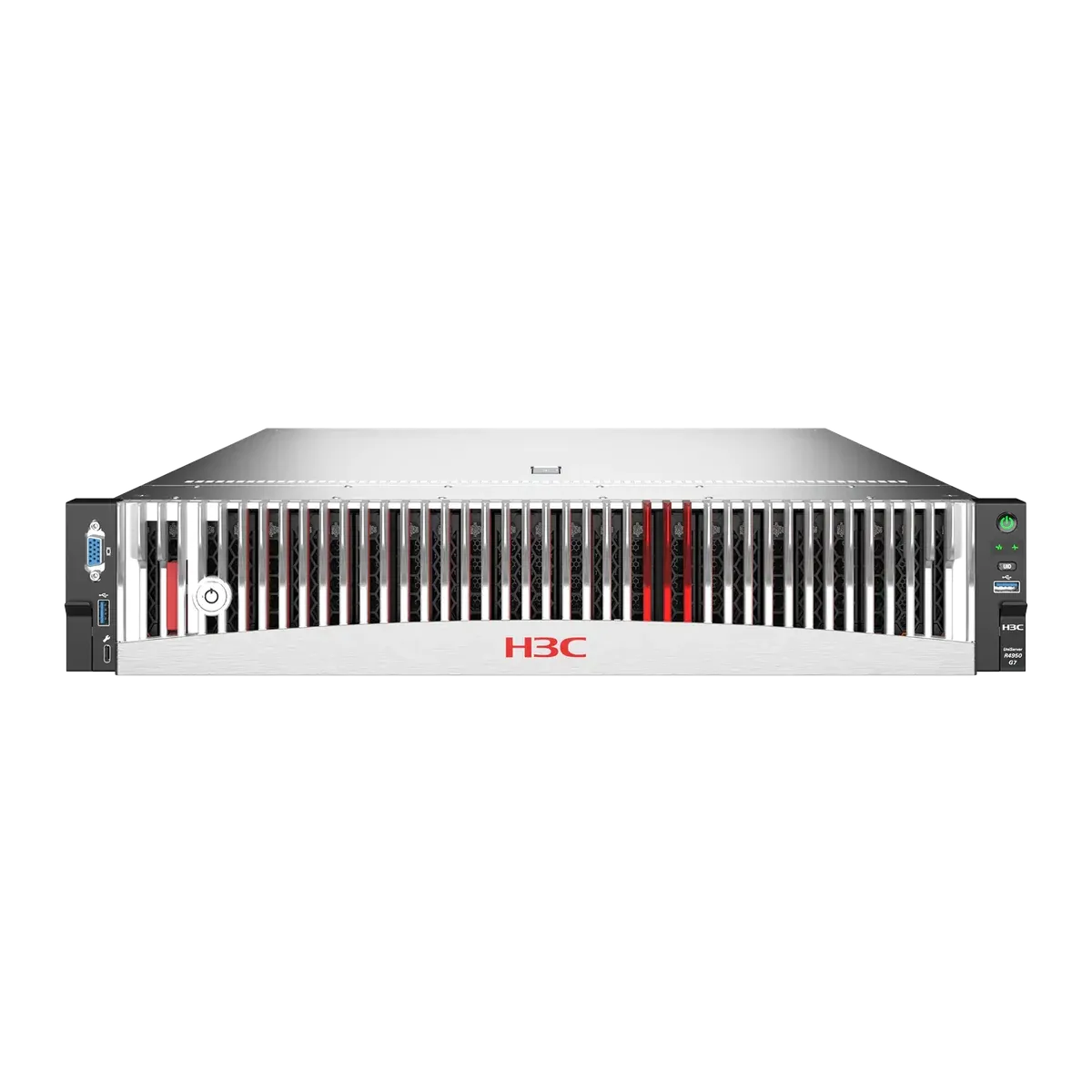

An AMD EPYC 9004-based 2U HCI node with up to 128 cores per socket, ideal for dense virtualisation and VDI.
Island-wide delivery to all 25 districts
| Processors | 2 AMD EPYC 9004 series processors Up to 128 cores per processor, maximum L3 cache 1152MB, maximum power 400W |
|---|---|
| Memory | Up to 24 DDR5 memory slots, up to 4800MT/s, supporting RDIMM or 3DS RDIMM, memory capacity up to 6TB* |
| Storage controller unit | Optional RAID controller based on standard PCIe slot |
| Storage | Up to 41* 2.5-inch SATA/SAS hard drives (25 front + 8 mid + 8 rear) Up to 20* 3.5-inch SATA/SAS hard drives (12 front + 4 mid + 4 rear) Up to 28 U.2 NVMe SSDs Up to 2 2280/22110 SATA/NVMe M.2 hard drives |
| Network | Up to 2 onboard OCP 3.0 NICs + 1 optional OCP 3.0 NIC* Network adapter based on standard PCIe slot |
| Expansion slots | Up to 10 PCIe5.0 standard slots |
| I/O Ports | Front: Left chassis ear (optional): 1 VGA, 1 USB3.0, 1 Type C port. Right chassis ear: 1 USB3.0 Built-in: 1 USB3.0 Rear: 1 VGA, 1 serial port (optional), 2 USB3.0, 1 HDM dedicated network port |
| GPU support | Supports up to 4 double-width GPUs or 8 single-width GPUs. |
| Optical drive | Supports external optical drives. |
| Management | H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download) Support LCD touchable intelligent management module |
| Security | Chassis intrusion detection TCM/TPM security module CPU built-in dedicated security processor |
| Power and heat dissipation | itanium 1600W/3200W, Platinum 1300W/1600W/2000W/2400W power supply in 1+1 redundancy Hot-swappable redundant fans |
| Certification | CE，UL , FCC，VCCI，CB, etc. |
| Operating temperature | 5°C to 40°C (41°F to 104°F)* |
| Dimensions (H × W × D) | 2U height Without a security bezel: 87.5x445.4x780 mm (3.44x17.54x30.7 in) With a security bezel: 87.5x445.4x808 mm (3.44x17.54x31.8 in) |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
