H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

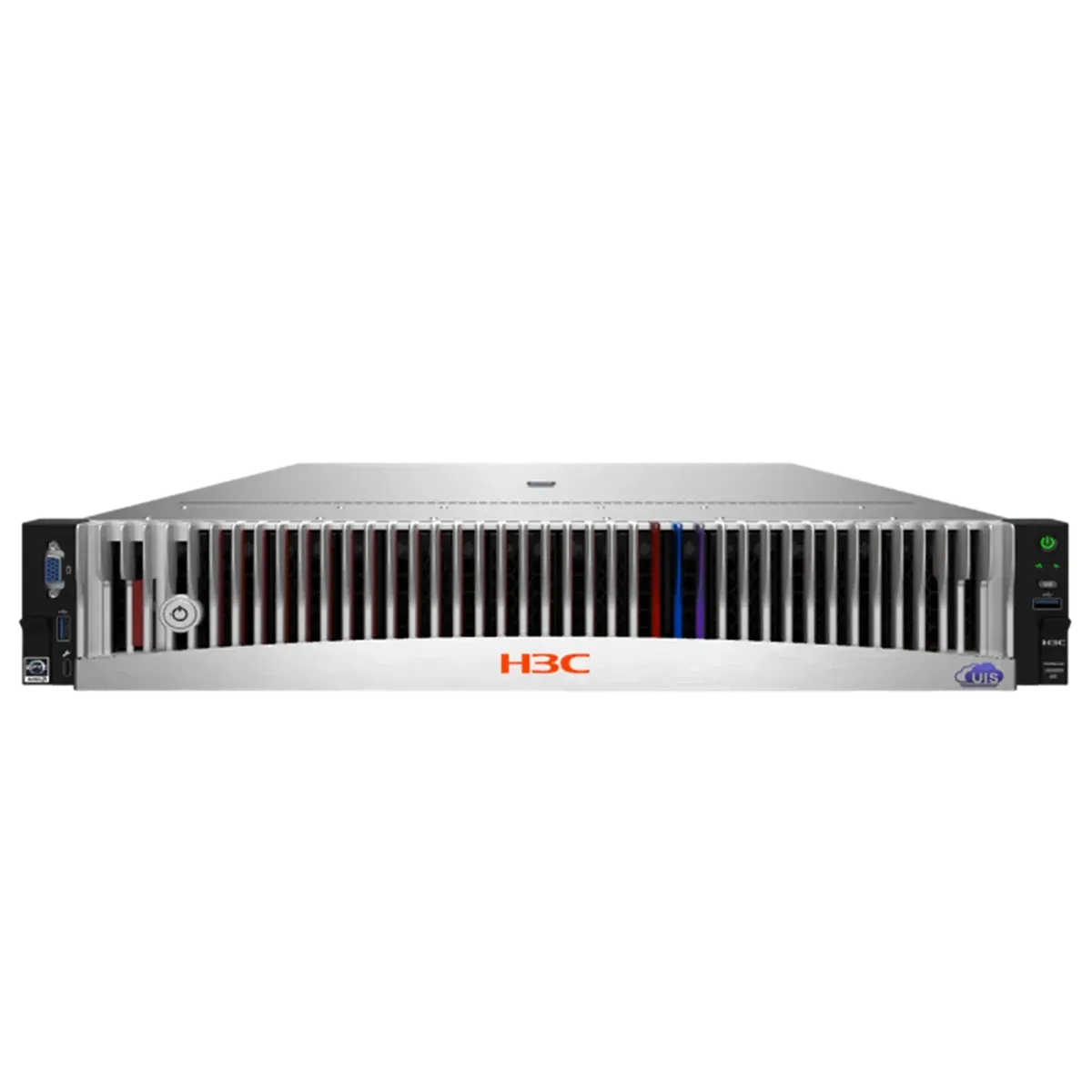

The newest AMD-based UIS node, on EPYC 9005 processors with up to 192 cores per socket for very high VM density.
Island-wide delivery to all 25 districts
| Processors | 2 AMD EPYC 9005 series processors Up to 192 cores per processor, maximum power 500W |
|---|---|
| Memory | Up to 24 DDR5 memory slots, up to 6400MT/s |
| Storage controller unit | Optional RAID controller based on standard PCIe slot |
| Storage | Up to 41* 2.5-inch SATA/SAS hard drives Up to 20* 3.5-inch SATA/SAS hard drives Up to 28* U.2 NVMe SSDs Up to 2* 2280/22110 SATA/NVMe M.2 hard drives |
| Network | Up to 2 onboard OCP 3.0 NICs, supporting Multi-Host Network adapter based on standard PCIe slot InifiBand |
| Expansion slots | Up to 10 PCIe5.0 standard slots |
| I/O Ports | Front: Left chassis ear (optional): 1 VGA, 1 USB3.0, 1 Type C port. Right chassis ear: 1 USB3.0 Built-in: 1 USB3.0 Rear: 1 VGA, 1 serial port (optional), 2 USB3.0, 1 HDM dedicated network port |
| GPU support | Up to 4 double-width or 8 single-width GPU modules |
| Management | H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download) Support LCD touchable intelligent management module |
| Security | Chassis intrusion detection TCM/TPM security module CPU built-in dedicated security processor |
| Power and heat dissipation | Titanium 1600W/3200W, Platinum 1300W/1600W/2000W/2700W power supply in 1+1 redundancy, hot-swappable 4*8056 fans, supporting single rotor failure |
| Certification | CE, UL, FCC, VCCI, CB, etc. |
| Operating temperature | 5°C to 45°C(41ºF to 113ºF) |
| Dimensions (H × W × D) | 2U Without a security bezel: 87.5x445.4x800 mm (3.44x17.54x31.5 in) With a security bezel: 87.5x445.4x828 mm (3.44x17.54x32.6 in) |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
