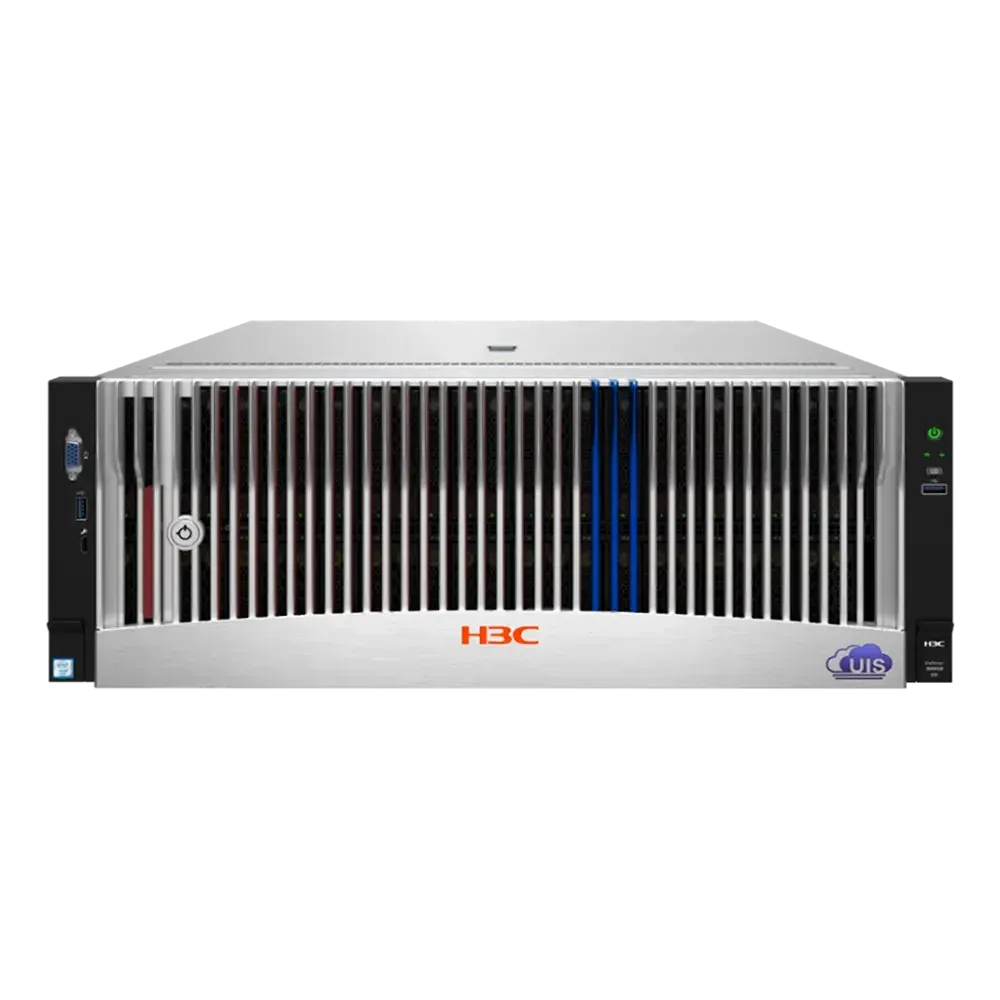

A four-socket HCI appliance for the largest consolidated workloads, combining 48 DIMM slots with up to 50 front drives.
Island-wide delivery to all 25 districts
| CPU | The system supports up to four 3rd Gen Intel® Xeon® Scalable processors, each with up to 28 cores and a maximum power of 250W. |
|---|---|
| Memory | 48 DDR4 memory modules with a maximum speed of 3200MT/s, supporting RDIMM or LRDIMM. Supports 24 Intel® Optane™ Persistent Memory PMem 200 Series (Barlow Pass) modules. The overall system supports a maximum physical memory capacity of 18.0TB*. |
| Storage controller unit | The onboard SATA RAID controller supports RAID 0, RAID 1, RAID 10, and RAID 5. Optional HBA and array controllers that support standard PCIe slots. |
| Storage | Supports SAS/SATA HDD/SSD drives. Supports up to 50 front SFF drives. Supports up to 24 front U.2 NVMe drives and PCIe NVMe storage accelerator modules. Supports SATA and PCIe M.2 options, and dual Micro SD card kits. |
| Network | The appliance has one built-in 1Gbps dedicated management network port. Expandable to 4 × 1GE copper ports, 2 × 10GE copper/fiber ports, or 2 × 25GE fiber ports via the OCP 3.0 x16 open interface, optional. Optional standard PCIe slot-based network adapter, supporting 1/10/25/40/100 GE network adapters or IB cards. |
| Expansion slot | Up to 18 full-height PCIe 3.0 slots and 1 dedicated OCP 3.0 x16 network adapter slot. |
| I/O Ports | The appliance comes with 1 front VGA port, 1 rear VGA port, and 1 serial port. It also provides 6 USB 3.0 ports (2 front, 2 rear, and 2 built-in) and 1 dedicated front management interface. |
| Security | Supports secure chassis, TCM/TPM security modules, Silicon Root of Trust (SRoT) firmware protection modules, and two-factor authentication. Optional PCIe security module, providing firewall, IPS, antivirus, and QoS protection functions. |
| GPU support | Supports 3 double-width GPUs or 9 single-width GPUs. |
| Power and heat dissipation | Up to four 800W/1200W/1600W platinum-level 1+1 or 2+2 redundant power supplies are available. Titanium-level options are also available. Optional 800W or 1600W 336V DC power supplies, supporting 1+1 or 2+2 redundancy. Supports eight N+1 hot-swappable redundant fan modules. |
| Views/Chassis depth | 4U chassis: 174.8mm × 447mm × 799mm (H × W × D) (excluding the security bezel) 174.8mm × 447mm × 830mm (H × W × D) (including the security bezel) |
