H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

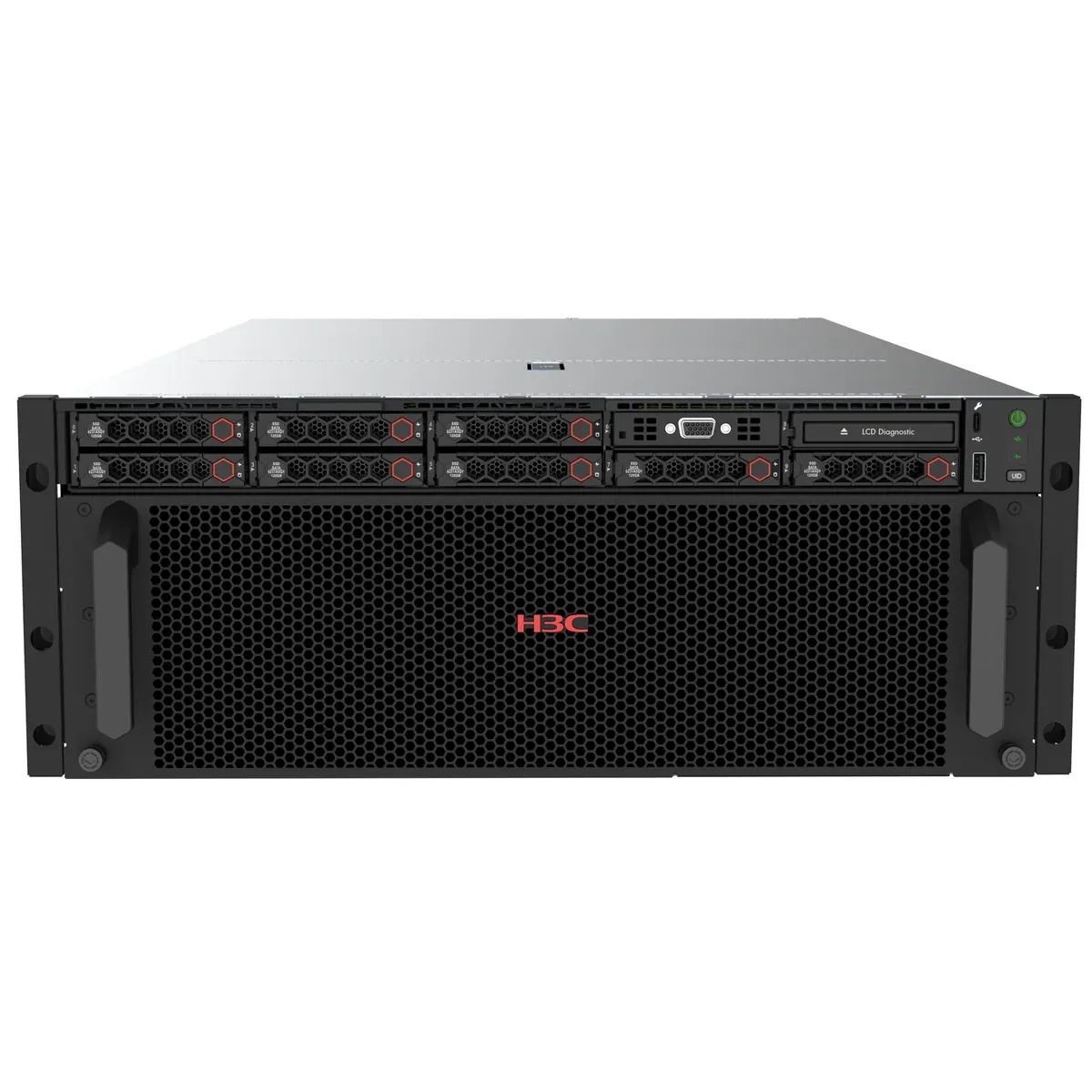

A 4U server that packs 60 3.5-inch drives (up to about 1.4 PB raw) alongside dual 4th/5th Gen Intel Xeon processors.
Island-wide delivery to all 25 districts
| CPU | 2 4th Generation Intel ® Xeon ® Sapphire Rapids/5th Generation Intel ® Xeon ® Emerald Rapids SP series 64 Cores for each Processor and 385W power consumption |
|---|---|
| Chipset | Intel ® C741 |
| Memory | 32× DDR5 RDIMMs (maximum) with up to 5600 MT/s Data Rate |
| Storage controller | Standard PCIe HBA Controller or Raid Controller Supports NVMe RAID |
| FBWC | 8 GB Cache Supports Supercapacitor protection |
| Storage | Supports SAS/SATA/NVMe U.2 60LFF+8SFF/2SFF; optional support for 12SFF and 12 NVMe SSD* Supports 2 M.2 or Micro SD as boot disk |
| Network | 1 × onboard 1 Gbps HDM management Ethernet port 2 × OCP3.0 Ethernet adapter, supporting NCSI function and hot-swap PCIe Standard Slots for 1G/10G/25G/100G/200Gb/400G Ethernet Adapter or 100/200/400Gb InfiniBand card |
| PCIe slots | Up to 6 x PCIe standard slots (5 × PCIe 5.0, 1 × PCIe 4.0), 2 ×OCP3.0 Slots |
| Ports | Standard 1 VGA connector (optional 2, 1 front, 1 rear) and optional 1 serial port 4 × USB connectors (1 front USB 2.0, 1 internal USB 2.0, 2 rear USB 3.0,), 1 ×Type C (HDM dedicated) |
| Optical drive | External USB optical drive |
| Management | H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download) LCD touchable model (Optional) U-Center data center management platform(Optional) |
| Security | Supports Chassis Intrusion Detection TCM/TPM2.0 Dual-factor authentication |
| Power supplies | Optional 2 or 4 hot swapping power supplies of 1300/1600/2000/2400W, supporting 1+1 or 2+2 redundancy Standard 5 fans for storage unit, 8 fans for compute unit, Hot swappable N+1 redundant Fans |
| Standards | CE, UL, FCC, VCCI, CB, etc. |
| Operating temperature | Operating temperature: 5~40ºC (41ºF to 104ºF) Storage Temperature: -40~70ºC (-41ºF to 158ºF) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device |
| Dimensions (H×W×D) | 4U Height Chassis size (Without ears) (length×width×height): 900mm×448mm×174.8mm (35.43 ×17.63×6.88 in) |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
