Price on Request

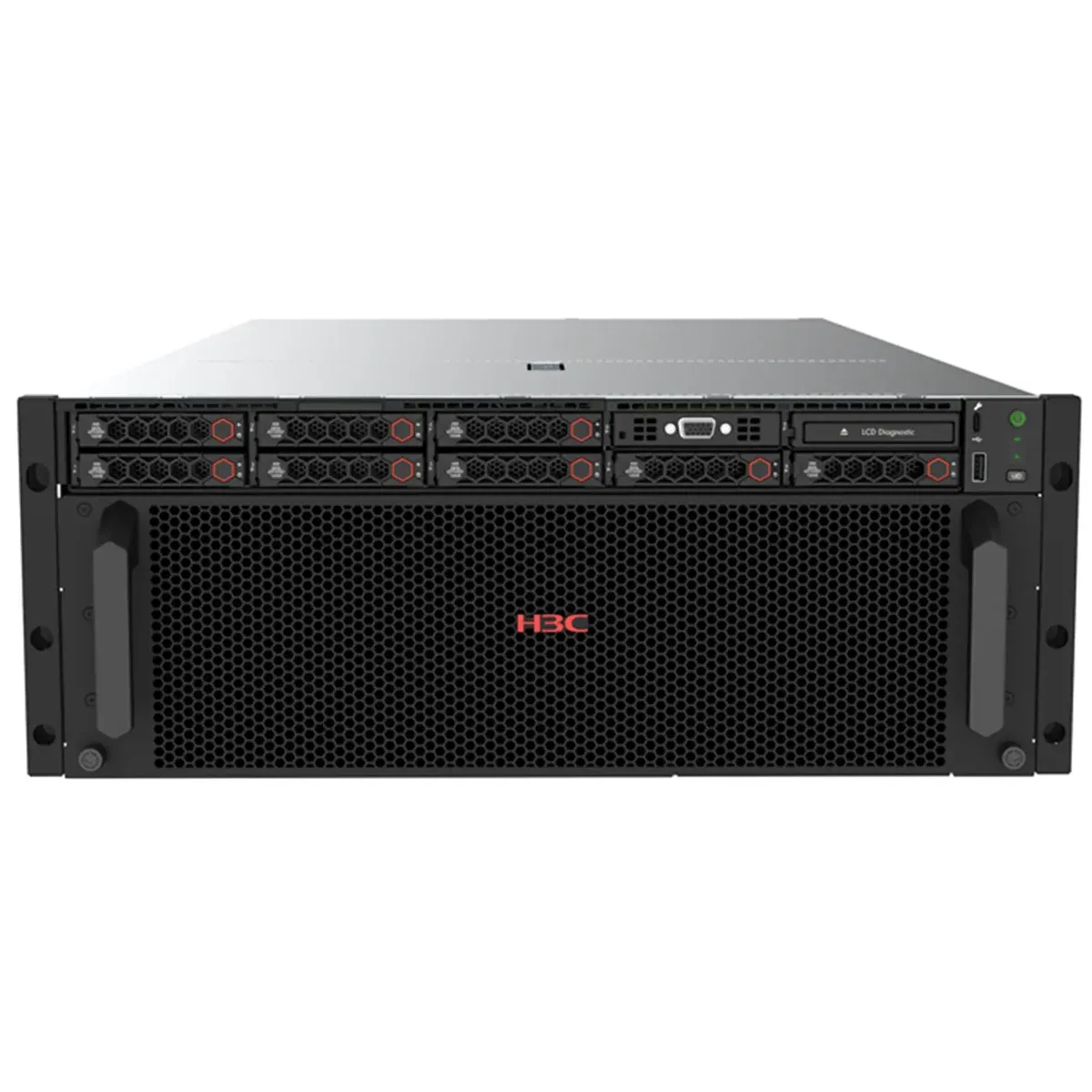

A 4U, 60-bay storage server on Intel Xeon 6 that supports 30 TB-plus drives for up to about 1.88 PB raw, ideal for cold data and archives.
Island-wide delivery to all 25 districts
| CPU | Support 1 to 2 Intel® Xeon® 6 processors, with a maximum power consumption of 350W for each processor, and supports 4UPI |
|---|---|
| Memory | Support 32 DDR5 memory slots, with a maximum speed of 6400MT/s Support 16 MRDIMM slots, with a maximum speed of up to 8000MT/s |
| Storage controller | Optional HBA and intelligent RAID controller based on standard PCIe slots Optional 4GB/8GB cache, supports power fail safeguard Support RAID 0/1/10/5/6/50/60/1E/Simple Volume |
| Storage | Support 60 3.5 inch SAS/SATA drive Support 2/8/10 2.5 inch SAS/SATA/NVMe drive Support 12 NVMe U.2 drives* Supports 2 x M.2 or Micro SD cards as startup disks |
| Network | 1 x onboard 1 Gbps HDM management Ethernet port 2 x OCP3.0 Ethernet adapter support NCSI function and hot-swap Supports PCIe Standard Slots for 1/10/25/100/200/400Gb Ethernet Adapter or 100/200/400Gb InfiniBand card |
| PCIe slots | Up to 9 PCIe slots (including 2 x OCP 3.0, 1 x Mezz) |
| Ports | Front: 1 VGA, 1 USB3.0 + 1 USB2.0, 1 Type C interface (for HDM) Built-in: 1 USB Rear: 1 VGA, 2 USB3.0, 1 dedicated HDM network port, optional 1 serial port |
| Optical drive | Supports external USB optical drive |
| Management | HDM agentless management tool (with rear independent management network port and front dedicated Type C port) and H3C UniSystem management software Optional built-in touch LCD intelligent management module Optional U-Center data center management platform |
| Security | Support Chassis Intrusion Detection TCM/TPM security module (Optional) |
| Power supply and cooling | Optional 2 or 4 1300W/1600W/2000/2400W hot-swappable power supply, supporting 1+1 or 2+2 redundancy Storage element standard: 5 fans Computing unit standard: 8 fans Supports N+1 redundant hot swapping |
| Standards | CE, UL, FCC, VCCI, CB, etc. |
| Operating temperature | Operating temperature: 5°C to 40°C (41°F to 104°F) Storage Temperature: -40~70°C (-40°F to 158°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device |
| Dimensions (H×W×D) | 4U Height Without a security bezel and mounting ears: 174.8×448×900 mm (6.88×17.64×35.43 in) |
