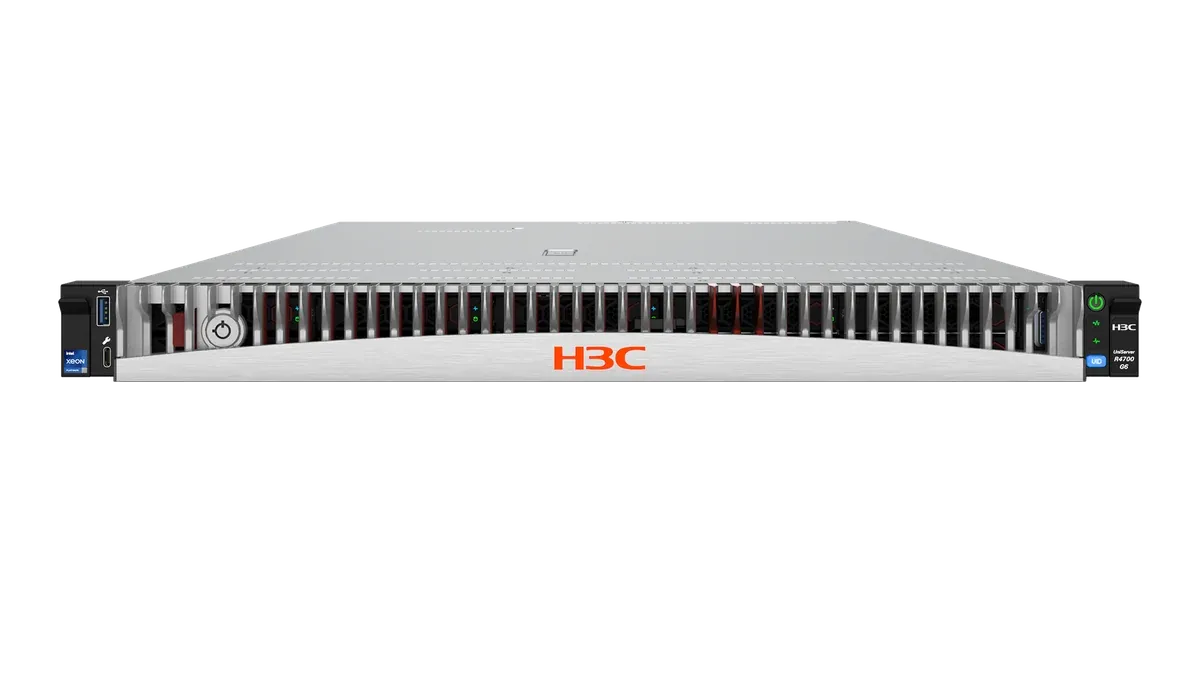

H3C UniServer R4700 G6 1U Rack Server

Model: R4700 G6Series: R4700

A 1U dual-socket server on 4th/5th Gen Intel Xeon Scalable, balancing up to 128 cores with DDR5 memory and NVMe storage for dense deployments.

Two Intel Xeon Sapphire Rapids or Emerald Rapids processors, up to 128 cores
32 DDR5-5600 slots, up to 8 TB
Up to 12 U.2 NVMe drives in 1U
3 PCIe 5.0 + 1 PCIe 4.0 slots plus two OCP 3.0 NICs, CXL 1.1
Up to four single-slot GPUs

Price on Request

Request Price Call 076 018 7080 Download datasheet

Island-wide delivery to all 25 districts

CPU	2 4th Generation Intel®Xeon® Sapphire Rapids / 5th Generation Intel®Xeon® Emerald Rapids SP series 64 cores for each processor and 385W power consumption HBM technology
Chipset	Intel®C741
Memory	32 DDR5 RDIMM slots, 5600 MT/s data rate, 8TB on 2 CPU configuration with 256G DDR5 RDIMM
Raid controller	Embedded RAID controller, supports SATA RAID 0/1/10/5 Optional standard PCIe HBA controller or raid controller
FBWC	8 GB Cache, support Supercapacitor protection
Storage	Front 10SFF bays, rear 2SFF bays Front 4LFF bays SAS/SATA HDD/SSD drives,12 U.2 NVMe drives SATA/NVMe M.2 Kit, DSD module (2xSD card kit)
Network	Onboard 1Gbps management network port Onboard OCP 3.0 slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs PCIe Optional : Standard slots for 1/10/25/100GE ethernet adapter, IB card
Expansion slots	4 PCIe standard slots (3 PCIe 5.0 and 1 PCIe 4.0) and 2 onboard OCP 3.0 slots CXL1.1
Ports	Standard: 2 VGA port (1 front, 1 rear), 4 USB ports (1 front, 2 rear,1 internal), 1 front Type-C port Optional: 1 rear management port
GPU	4 single-slot GPU modules
Optical Drive	External optical disk drive, optional
Management	H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download) Support LCD touchable intelligent management module
Security	Intelligent front security bezel* Chassis intrusion detection TPM2.0 2FA for HDM Intel SGX2.0 and PFR3.0
Power supply	1+1 Redundancy power supply Titanium 850W/1600W Platinum 800W/1300W/1600W/2000W DC power supply 8 Hot swappable redundant fans
Standards	CE, UL, FCC, VCCI, CB, etc.
Operating temperature	5°C to 45°C (41°F to 113°F) *
Dimensions (H×W×D)	1U Height Without a security bezel: 42.9 x434.6x777mm (1.68x17.11x30.59 in) With a security bezel: 42.9x434.6x805mm (1.68x17.11x31.7 in)
