H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

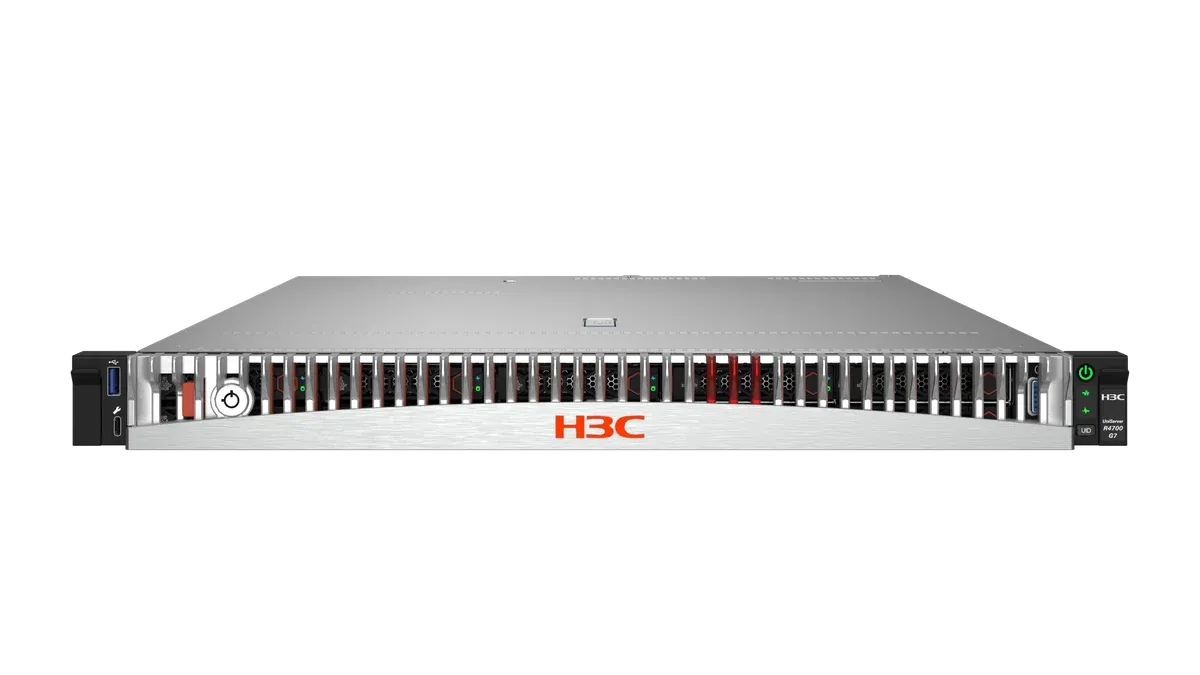

A 1U dual-socket server on Intel Xeon 6 with up to 288 cores, aimed at databases, virtualisation and VDI where rack space is tight.
Island-wide delivery to all 25 districts
| CPU | 2 Intel® Xeon® 6 pocessors 144 Cores for each processor and 350W power consumption |
|---|---|
| Memory | Supports 32 DDR5 memory slots with a maximum speed of 6400MT/s Supports 16 MRDIMM memory slots with a maximum speed of 8000MT/s Additional expansion slots via CXL* |
| RAID controller | Dedicated Mezz / standard PCIe HBA controller or raid controller |
| FBWC | Supports RAID 0/1/5/6/10/50/60, etc., optional 8GB cache, supports supercapacitor protection |
| Storage | Supports up to 12 × 2.5-inch drives Supports up to 4 × 3.5-inch drives Supports SAS/SATA HDD/SSD drives, Supports up to 12 NVMe U.2 /12 E3.S* drives (Optional) Supports SATA/NVMe M.2 and DSD modules |
| Network | Onboard 1Gbps management network port Supports 2 OCP 3.0 network cards, hot-swappable and PCIe 5.0 Optional standard PCIe slot network cards, supports Ethernet cards, InfiniBand network cards and smart network cards |
| Expansion slots | 4 PCIe standard slots(3 PCIe 5.0/ 1 PCIe 4.0),2 onboard OCP 3.0 slots and 1 dedicated Mezz slot Up to 7 PCIe slots CXL2.0 |
| Ports | Standard: 1 rear VGA, 4 USB ports (1 front, 1 internal, 2 rear) Optional: mounting bracket kit with 1 serial port, 1 VGA port, 1 USB port; Optional: front dedicated management network port |
| GPU | 4 single-slot GPU modules |
| Optical drive | External optical disk drive, optional |
| Management | H3C HDM standard license, iFIST (embedded), H3C advanced feature package license (optional, requires licenses), H3C UniSystem (requires download) Support LCD touchable intelligent management module |
| Security | Intelligent front security bezel Chassis intrusion detection TPM2.0 2FA for HDM Intel SGX2.0 |
| Power supplies | 1+1 Redundancy power supply Platinum 800W/1300W/1600W/2000W//2400W/2700W/3200W Optional Titanium power supply DC power supply 8 Hot swappable redundant fans |
| Standards | CE, UL etc. |
| Operating temperature | 5°C to 45°C (41°F to 113°F) * |
| Dimensions (H×W×D) | 1U Height Without a security bezel: 42.9 x434.6x777mm (1.69x17.11x30.59 in) With a security bezel: 42.9x434.6x805mm (1.69x17.11x31.69 in) |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
