H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

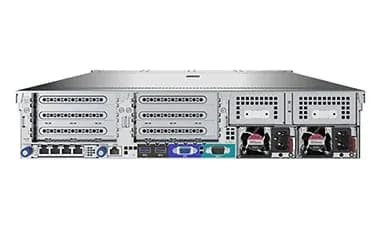

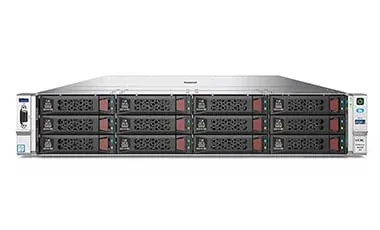

A proven dual-socket 2U server on 2nd Gen Intel Xeon Scalable, supporting up to 24 NVMe drives and three dual-slot GPUs.
Island-wide delivery to all 25 districts
| Computing | 2 ×2nd Generation Intel Xeon Scalable Processors (CLX&CLX-R) (Up to 28 cores and maximum 205 W power consumption) |
|---|---|
| Memory | 3.0 TB (maximum) 24 × DDR4 DIMMs (Up to 2933 MT/s data transfer rate and support of both RDIMM and LRDIMM) (Up to 12 Intel ® Optane™ DC Persistent Memory Module.(DCPMM) |
| Storage controller | Embedded RAID controller (SATA RAID 0, 1, 5, and 10) Standard PCIe HBA cards and storage controllers (Optional) |
| FBWC | 8 GB DDR4-2133MHz |
| Storage | Front 12LFF + rear 4LFF and 4SFF or front 25SFF + rear 2SFF supports SAS/SATA HDD/SSD, supports up to 24 NVMe drives 480 GB SATA M.2 SSDs (Optional) SD cards |
| Network | 1 × onboard 1 Gbps management network port 1 × mLOM Ethernet adapter that provides 4 × 1GE copper ports or 2 × 10GE copper/fiber ports 1 × PCIe Ethernet adapters (Optional) |
| PCIe slots | 10 × PCIe 3.0 slots (eight standard slots, one for Mezzanine storage controller, and one for Ethernet adapter) |
| Ports | Front VGA connector (Optional) Rear VGA connector and serial port 5 × USB 3.0 connectors (one at the front, two at the rear, and two in the server) 1 × USB 2.0 connector (Optional) 2 × MicroSD slots (Optional) |
| GPU | 3 × dual-slot wide GPU modules or 4 × single-slot wide GPU modules |
| Optical drive | External optical drive Only the 8SFF drive models support built-in optical drives |
| Management | HDM (with dedicated management port) and H3C FIST |
| Security | Support Chassis Intrusion Detection，TPM2.0 |
| Power supply & ventilation | Platinum 550W/800W/850W/1300W/1600W, or 800W –48V DC power supplies (1+1 redundancy) Hot swappable fans (supports redundancy) |
| Standards | CE，UL , FCC，VCCI，EAC, etc. |
| Operating temperature | 5°C to 50°C (41°F to 122°F) The maximum operating temperature varies by server configuration. |
| Dimensions (H × W × D) | Without a security bezel: 87.5 × 445.4 × 748 mm (3.44 × 17.54 × 29.45 in) With a security bezel: 87.5 × 445.4 × 769 mm (3.44 × 17.54 × 30.28 in) |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
