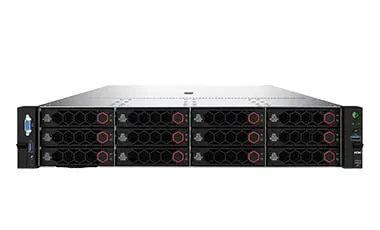

A dual-socket 2U rack server on 3rd Gen Intel Xeon Scalable processors, offering up to 8 TB of memory and 24 NVMe drives for mainstream data-centre workloads.
Island-wide delivery to all 25 districts
| CPU | 2 x 3 rd generation Intel® Xeon® Ice Lake SP series (each processor up to 40 cores and maximum 270W power consumption) |
|---|---|
| Chipset | Intel® C621A |
| Memory | 32 x DDR4 DIMM slots , maximum 8.0 TB Up to 3200 MT/s data transfer rate RDIMM Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass) |
| Storage controller | Embedded RAID controller Standard PCIe HBA controller or storage controller, depending on model |
| FBWC | 8 GB DDR4 cache, depending on model, support supercapacitor protection |
| Storage | Up to front 12LFF bays, Rear 4LFF/4SFF bays Up to front 25SFF bays, Rear 4LFF/4SFF bays Front/Rear SAS/SATA HDD/SSD NVMe Drives, maximum 24 x U.2 NVMe Drives SATA or PCIe M.2 SSDs, 2 x SD card kit , depending on model |
| Network | 1 x onboard 1 Gbps management network port 2 x OCP 3.0（x16）slots for 4 x 1GE or 2 x 10GE or 2 x 25GE NICs PCIe Standard slots for 1/10/25/40/100/200GE/IB Ethernet adapter |
| PCIe slots | 14 x PCIe 4.0 standard slots, depending on model |
| Ports | VGA ports (Front and Rear) and serial port (RJ-45) 6 x USB 3.0 ports (2 front, 2 rear, 2 internal) 1 dedicated management Type-C port |
| GPU | 14 x single-slot wide or 4 x double-slot wide GPU modules, depending on model |
| Optical drive | External optical disk drive , optional |
| Management | HDM OOB system (with dedicated management port) and H3C iFIST/FIST, LCD touchable smart model |
| Security | Intelligent Front Security Bezel Chassis Intrusion Detection TPM2.0 Silicon Root of Trust 2FA for HDM |
| Power supply | 1+1 Redundancy power supply Titanium 850W/1600W Platinum 550W/800W/850W/1300W/1600W/2000W/2400W DC power supply Hot swappable Redundant Fans |
| Standards | CE，UL , FCC，VCCI，EAC, etc. |
| Operating temperature | 5°C to 45°C (41°F to 113°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
| Dimensions (H × W × D) | 2U Height Without a security bezel: 87.5 x 445.4 x 748 mm (3.44 x 17.54 x 29.45 in) With a security bezel: 87.5 x 445.4 x 776 mm (3.44 x 17.54 x 30.55 in) |
