H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

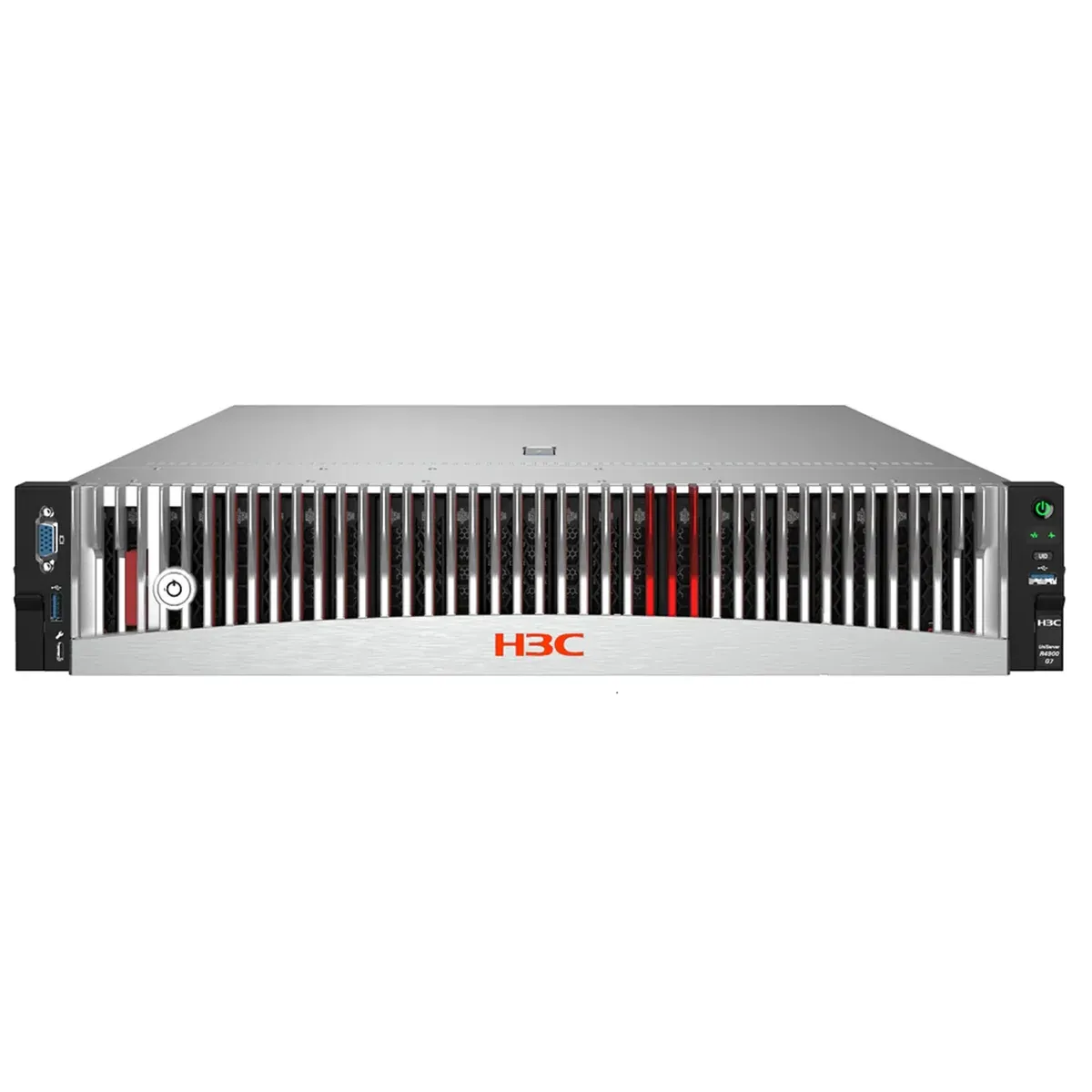

H3C's latest dual-socket 2U rack server on Intel Xeon 6, built for general compute, HPC, AI inference and virtual desktop workloads.
Island-wide delivery to all 25 districts
| CPU | 1 or 2 Intel® Xeon® 6 Processors |
|---|---|
| Memory | SP Platform: 32 DDR5 RDIMM Slots, 6400 MT/s Data Rate, 16 DDR5 MRDIMM Slots, 8000MT/s Data Rate AP Platform: 24 DDR5 RDIMM Slots, 6400 MT/s Data Rate, 24 DDR5 MRDIMM Slots, 8800MT/s Data Rate Additional Expansion of 24 Memory Slots via CXL* |
| RAID controller | Support RAID 0/1/5/6/10/50/60, etc., 8GB cache, support Supercapacitor Protection |
| Storage | 29 SAS/SATA Drives Front 12 LFF bays, Rear 4 LFF bays Front 25 SFF bays, Rear 4 SFF bays 24 U.2 NVMe Drives, 36 E3.S (1T) or 24 E3.S(2T) SSDs SATA/NVMe M.2 Kit, DSD Model (2×SD card kit) |
| Network | 1 Onboard 1 Gbps Management Network Port 2 Onboard OCP 3.0 NICs, support Hot Swap and PCIe 5.0 PCIe Standard Slots for Ethernet/IB Adapter |
| Expansion slots | 14 PCIe5.0 Standard Slots*, 2 Onboard OCP 3.0 Slots and 1 Dedicated Mezz Slot, support CXL 2.0 |
| Ports | Standard: 1 Rear VGA Port, 4 USB Ports (1 Front, 2 Rear, 1 Internal) Optional: Mounting Bracket Kit with 1 front Serial port, 1 VGA port, 1 USB Port; 1 Front Management Port* |
| GPU | 4 Dual-Slot or 12 Single-Slot* GPU Modules |
| Optical drive | External Optical Disk Drive, Optional |
| Management | H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download) Support LCD Touchable Intelligent Management Module |
| Security | Intelligent Front Security Bezel Chassis Intrusion Detection TPM 2.0 Intel SGX2.0 |
| Power supplies | 1+1 Redundancy Power Supply Titanium 1600W/3200W Platinum 800W/1300W/1600W/2000W/2700W DC Power Supply Hot Swappable Redundant Fans |
| Standards | CE, UL etc. |
| Operating temperature | 5°C to 45°C (41°F to 113°F) |
| Dimensions (H×W×D) | 2U SP Regular Chassis: 87.5×445.4×800mm (3.44×17.54×31.5 in) (Without a security bezel) 87.5×445.4×828mm (3.44×17.54×32.6 in) (With a security bezel) 2U Front Accelerator Chassis*: 87.5×445.4×900mm (3.44×17.54×35.4 in) (Without a security bezel) 87.5×445.4×928mm (3.44×17.54×36.5 in) (With a security bezel) 2U AP Regular Chassis: 87.5×445.4×850mm (3.44×17.54×31.5 in) (Without a security bezel) 87.5×445.4×878mm (3.44×17.54×32.6 in) (With a security bezel) |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
