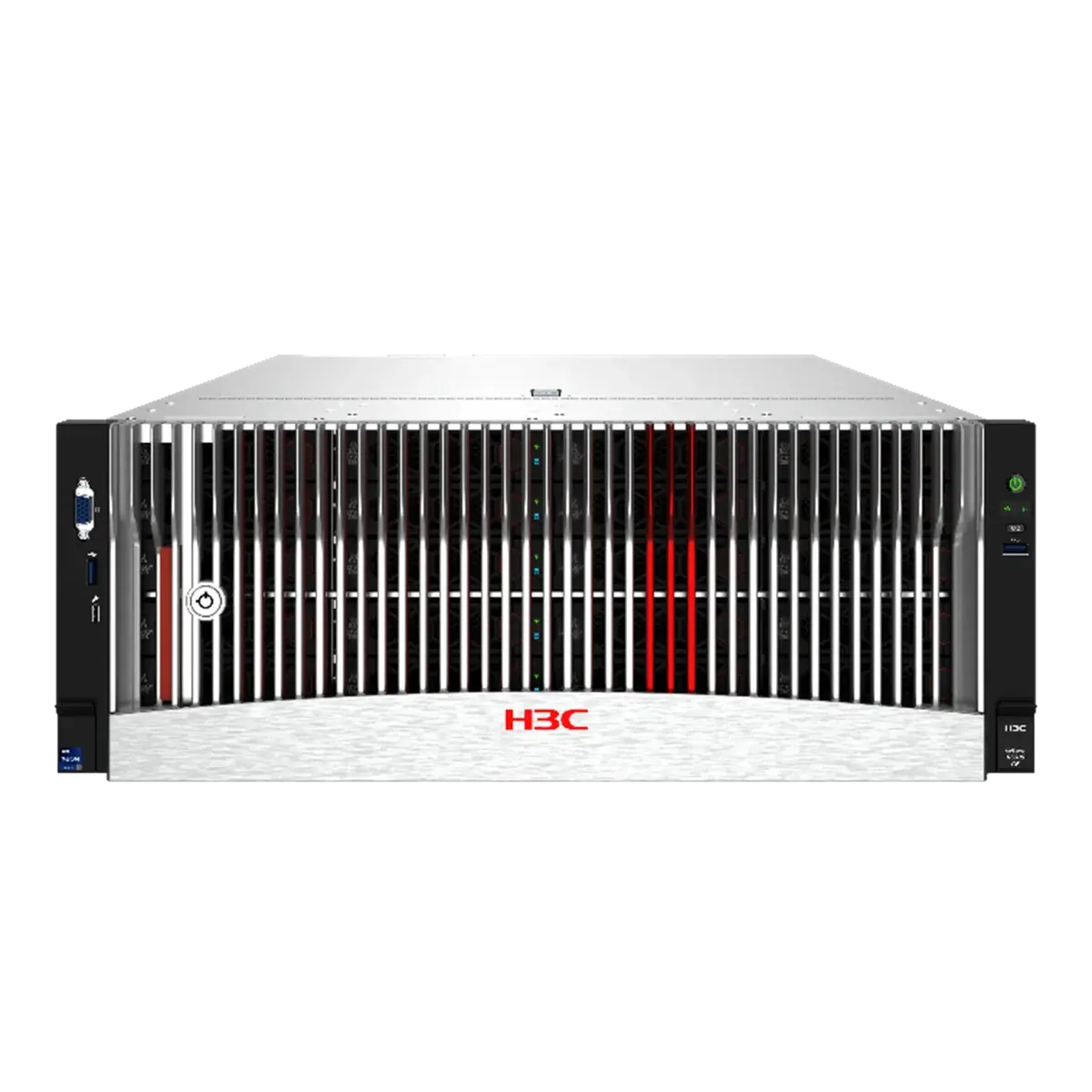

A 4U dual-socket GPU server for AI training, inference and HPC, supporting up to ten double-width accelerators and large local storage.
Island-wide delivery to all 25 districts
| GPU compute module | 8-slot switch module / 4-slot direct connect module / 8-slot direct connect module / 16-slot switch module |
|---|---|
| GPU support | Supports up to 10 double-width GPUs* / Supports up to 6 double-width GPUs* / Supports up to 20 single-width GPUs* |
| CPU | Supports up to two Intel® Xeon® 4th/5th Gen Scalable processors, with up to 64 cores per processor and a maximum power of 385W |
| Memory | Supports up to 32 DDR5 memory slots with a speed up to 5600MT/s Supports RDIMMs and LRDIMMs Provides a maximum capacity of 12TB with dual processors and supports CXL 1.1* and the HBM technology* |
| Storage controller | Supports high-performance storage controllers and RAID 0/1/10/5/6/50/60/Tri-Mode* |
| PCIe slots | 8 double-width PCIe 5.0 x16 slots 4 single-width PCIe 5.0 x16 slots 1 dedicated slot for OCP 3.0 network adapters and 1 dedicated slot for storage controllers / 6 double-width PCIe 5.0 x16 slots 1 dedicated slot for OCP 3.0 network adapters 1 dedicated slot for storage controllers / 10 double-width PCIe 5.0 x16 slots 1 dedicated slot for OCP 3.0 network adapters and 1 dedicated slot for storage controllers / 20 single-width PCIe 4.0 x16 slots 1 dedicated slot for OCP 3.0 network adapters 1 dedicated slot for storage controllers |
| Front hard drive expansion | System SAS/SATA/NVMe drive configurations: ● 24 × 2.5/3.5-inch SAS/SATA/NVMe drives (up to 8 NVMe drives) with 2 onboard M.2 slots ● 12 × 2.5/3.5-inch SAS/SATA/NVMe drives (up to 8 NVMe drives) with 2 onboard M.2 slots |
| Network | Supports OCP 3.0 network adapters (supports Singlehost/Multihost*) and 1/10/25/50/100/200/400GE PCIe standard network adapters |
| Fan | Supports eight 8056 fans with N+1 redundancy and hot swapping |
| Management | HDM agentless management tool (with a dedicated management port) and H3C UniSystem Supports an LCD smart management module and 64M local video memory* Supports the U-Center data center management platform |
| Security | Supports chassis intrusion detection and dual-factor authentication Supports Intel PFR 3.0 and SGX 2.0 security technologies Supports TCM/TPM security modules |
| Ports | Front Panel: 1 x USB 3.0, 1 x USB 2.0, 1 x VGA, 1 x Type-C Debug port Onboard : 1 x USB 2.0 Rear Panel: 2 x USB 3.0, 1 x VGA, 1 x dedicated 1G management port (Optional) 1 management serial port* |
| Power supply and cooling | Supports four 2000W/2400W/2700W* Platinum power supplies Supports 3200W Titanium power supplies* Supports N+N redundancy |
| Standards | CE, UL, FCC, VCCI, CB, etc. |
| Operating temperature | 5°C to 35°C (41°F to 95°F) (The operating temperature varies by server configuration. For more information, see the product technical documentation.) |
| Dimensions (H×W×D) | 4U chassis (H×W×D) Without security bezel: 174.8 × 447 × 828 mm (6.88 × 17.60 × 32.60 in) With security bezel: 174.8 × 447 × 856 mm (6.88 × 17.60 × 33.70 in) |
