H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

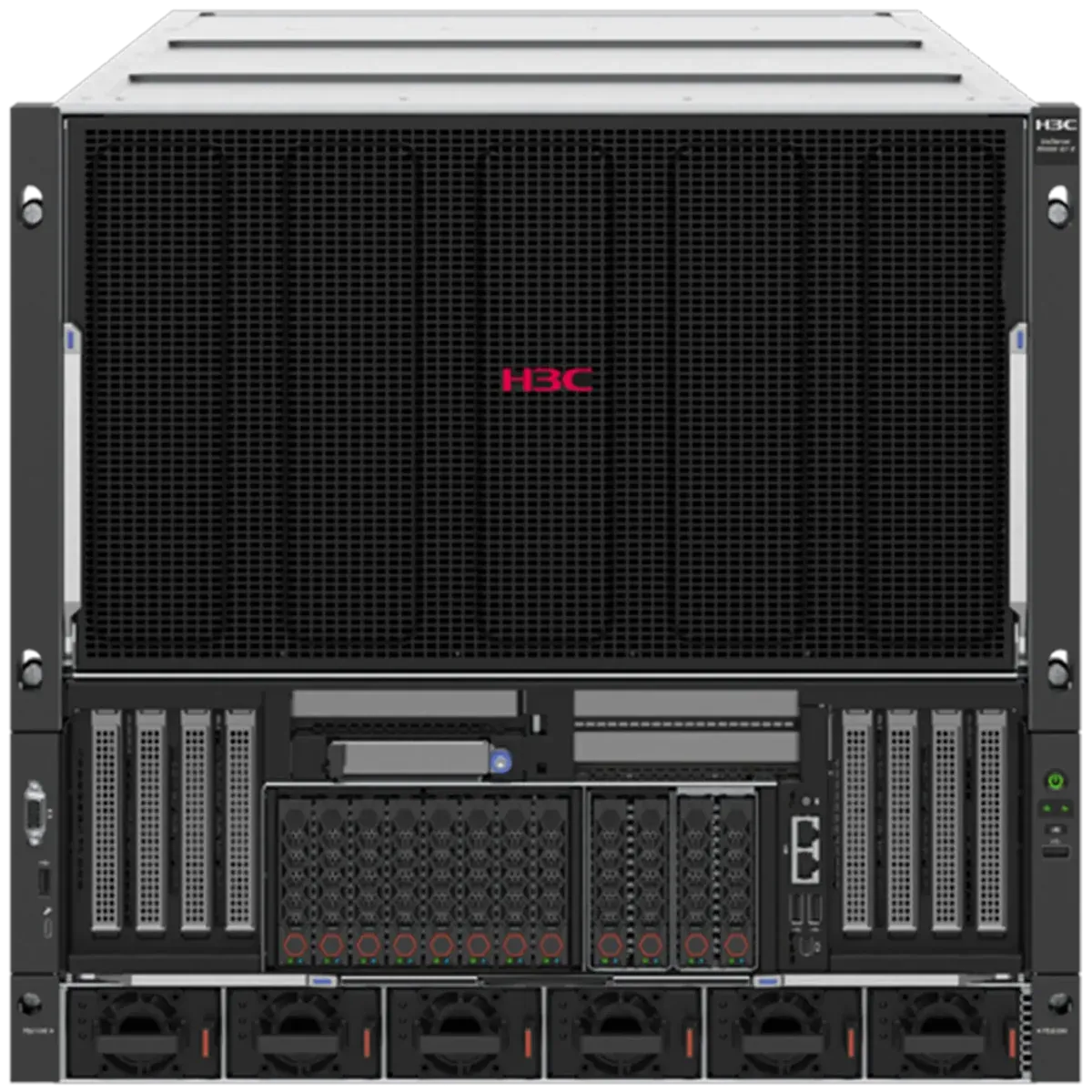

A modular 10U server built around a fully interconnected 8-GPU module and Intel Xeon 6, for large-model AI training.
Island-wide delivery to all 25 districts
| CPU | Supports 2 Intel® 6th Generation Xeon® Scalable Processors, TDP 350W |
|---|---|
| GPU | Supports 8-GPU module |
| Memory | Supports up to 32 DDR5 memory slots, with speeds up to 8800 MT/s and memory capacity up to 8 TB |
| Storage controller | Optional high-performance RAID controller, supporting RAID 0/1/10/5/6/50/60/Tri-Mode* |
| PCIe slots | Supports 14 PCIe 5.0/4.0/3.0 standard slots |
| Storage | 1) 12 x U.2: Supports SATA/NVMe, up to 12 x NVMe, and 8 x NVMe Tri-mode Supports 8SFF + 2SFF configuration by defualt Optional support for 8SFF + 2 x 2SFF 2) 2*M.2: Supports 2 x SATA M.2 or 2 x PCIe M.2 |
| Network | Optional OCP 3.0 network adapter, and optional 1/10/25/40/50/100/200/400GE PCIe standard network adapters |
| Fan | 20 high-performance fans, supporting N+1 redundancy |
| Management | HDM agentless management tool (with dedicated management port) and H3C UniSystem management software, supporting 64 MB local video memory, with optional U-Center data center management platform |
| Security | CPU-integrated dedicated security processor; two-factor authentication; supports Intel PFR 3.0 and SGX 2.0 security technologies; supports TCM/TPM security modules |
| Ports | 1) Left ear: 1 x VGA, 1 x USB 2.0, 1 x USB Type-C debug port; 2) Right ear: 1 x power button, 1 x UID button, 1 x USB 3.0; 3) Front panel IO board: supports 2 x RJ45 (1 x BMC dedicated network port, 1 x CDU RS485), 2 x USB 3.0 (top and bottom), 1 x mini DP; 4) Rear UID indicator |
| Power supply | Power plane for GPU computing module: supports 6 x 3300 W 54 V titanium power supplies, with N+N/N+M/N+1 redundancy Power plane for CPU computing node power: supports 2 x 2000 W/3200 W 12 V platinum power supplies, with 1+1 redundancy |
| Operating temperature | 5°C to 35°C (41°F to 95°F) (The operating temperature varies by server configuration. For more information, see the product technical documentation.) |
| Dimensions (H×W×D) | 10U chassis (H×W×D): With ears: 440 mm (17.32 in) (H) x 482 mm (18.98 in) (W) x 890 mm (35.04 in) (D) Without ears: 440 mm (17.32 in) (H) x 447 mm (17.60 in) (W) x 860 mm (33.86 in) (D) |
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
A 12-stream Wi-Fi 6 flagship with an 8x8 5 GHz radio and 10G uplink for stadiums, auditoriums and lecture halls.
A Wi-Fi 6 AP with a 4x4 5 GHz radio and 5G multigigabit uplink for demanding indoor deployments.
An outdoor Wi-Fi 6 AP with two 2x2 radios, switchable to dual 5 GHz, plus PoE-out for cameras or sensors.
