H3C WA6628E-T Wi-Fi 6 Rail Transit Access Point
An all-metal Wi-Fi 6 AP for trains and vehicles, with M12 connectors and resistance to strong electromagnetic interference.
Price on Request

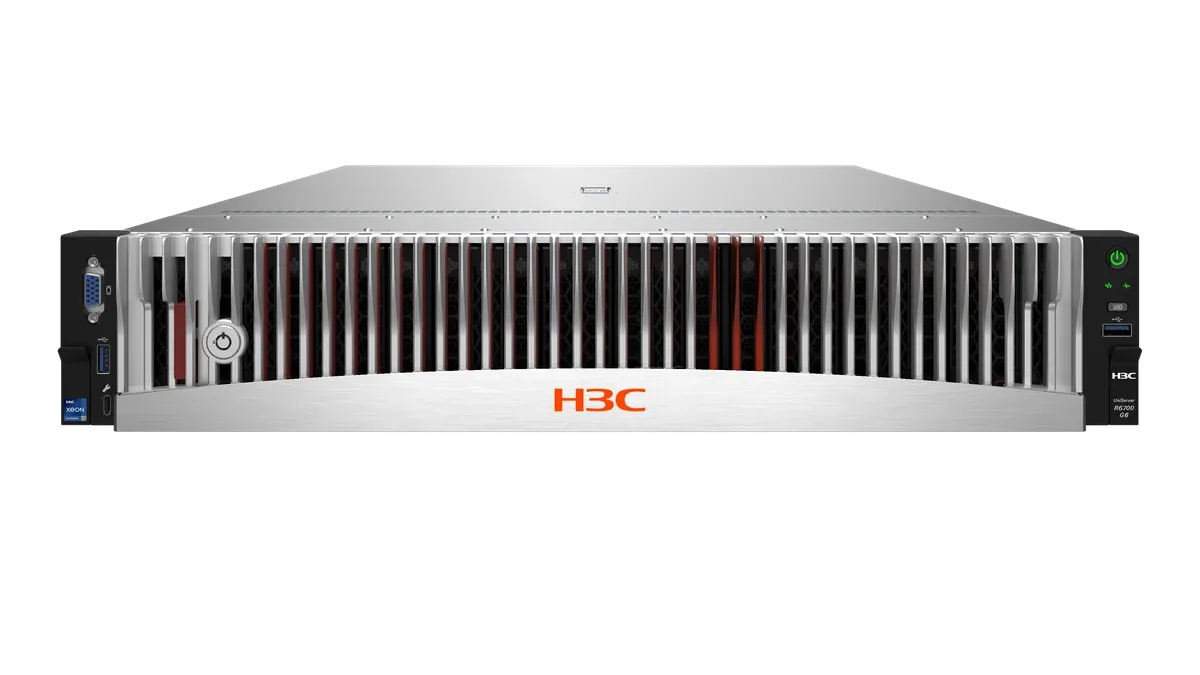

A four-socket 2U server on 4th Gen Intel Xeon Scalable with 64 DDR5 slots, for business-critical workloads in a compact footprint.
Island-wide delivery to all 25 districts
| CPU | 4 4th generation Intel ® Xeon ® Sapphire rapids SP series 60 Cores for each Processor with 350W power consumption |
|---|---|
| Chipset | Intel ® C741 |
| Memory | 64 DDR5 RDIMM slots, 5600 MT/s data rate |
| RAID controller | Optional HBA cards and RAID controllers based on standard PCIe slots Supports dual M.2 configuration with RAID 1 for os installation disks Supports SD card as boot disk. |
| FBWC | 8 GB Cache Supports Supercapacitor protection |
| Storage | 27 SAS/SATA HDD/SSD Drives 26 U.2 NVMe Drives Supports PCIe NVMe storage accelerator card and dual hot-swappable SATA M.2 Kit (Optional) |
| Network | 1 Onboard 1Gbps Management Network Port Optional expansion via OCP 3.0 x16 slots, supporting 4×1GE copper ports or 2×10GE copper/fiber ports or 2×25GE fiber ports PCIe Standard Slots for 1/10/25/40/100/200Gb Ethernet Adapter or 100/200Gb InfiniBand card |
| Expansion slots | Up to 8 PCIe 5.0 x16 Standard Slots Up to 10 PCIe 5.0 x8 Standard Slots Up to 3 OCP 3.0 Slots |
| Ports | 2 VGA Rear Ports (1 Front, 1 Rear) 3 USB 3.0 Ports (1 Front, 2 Rear), 3 USB 2.0 Ports (1 Front, 2 Internal) 1 Management Port , 1 serial port, 1 Type-C port, Power-Button, UID |
| GPU | Up to 10 single-width GPUs* |
| Optical drive | External Optical Disk Drive, Optional |
| Management | H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download) LCD touchable model, 64M Video Cache U-Center data center management platform |
| Security | Intelligent Front Security Bezel TCM/TPM2.0 Silicon Root of Trust Two-Factor Authentication Secure decommissioning function |
| Power supplies | Up to 4 platinum power supplies, supporting specifications of 850/1300/1600/2000/2400W with N+N redundancy Supports 4 hot-swappable N+1 redundant fans, allowing optional selection of 8038 or 8056 fans as needed |
| Standards | CE，UL , FCC，VCCI，CB, etc. |
| Operating temperature | 5°C to 45°C (41°F to 113°F) (Operating temperature support varies depending on different configurations. For details, please refer to the detailed product technical documentation description.) |
| Dimensions (H×W×D) | 2U Height Without a security bezel: 87.5×447×829mm (3.44×17.60×32.63 in) With a security bezel: 87.5×447×857.5mm (3.44×17.60×33.76 in) |
