Gigabit web-managed Layer 2 switches with SFP uplinks and PoE options for small and mid-sized networks.
Island-wide delivery to all 25 districts

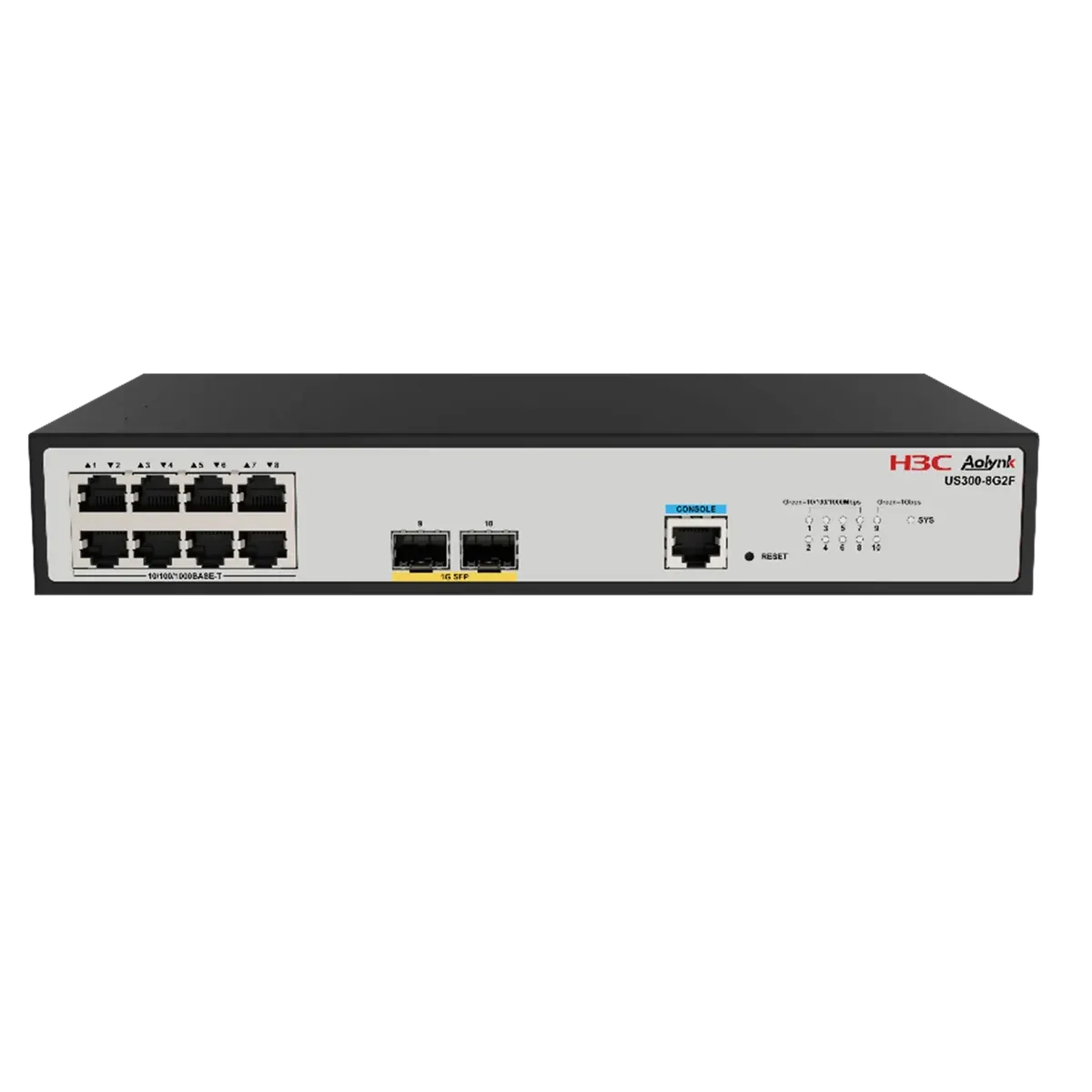

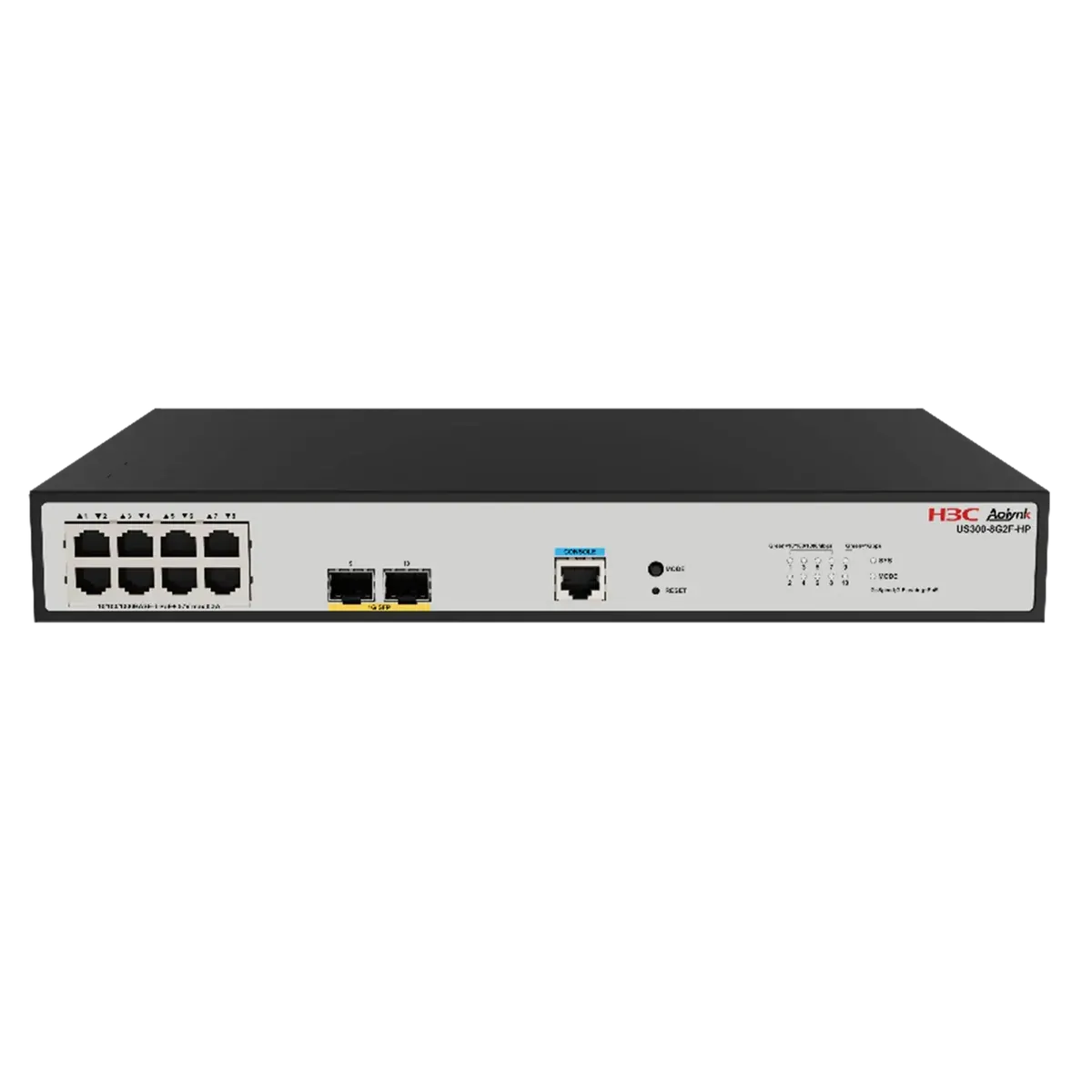

| Models | US300-24G4F-HP, US300-24G4F, US300-16G4F-HP, US300-16G4F, US300-8G2F-HP, US300-8G2F |
|---|---|
| Switching capacity | US300-24G4F-HP: 56 Gbps; US300-24G4F: 56 Gbps; US300-16G4F-HP: 40 Gbps; US300-16G4F: 40 Gbps; US300-8G2F-HP: 20 Gbps; US300-8G2F: 20 Gbps |
| Forwarding capacity | US300-24G4F-HP: 41.7 Mpps; US300-24G4F: 41.7 Mpps; US300-16G4F-HP: 29.76 Mpps; US300-16G4F: 29.76 Mpps; US300-8G2F-HP: 14.9 Mpps; US300-8G2F: 14.9 Mpps |
| Flash/SDRAM | 256MB/1G |
| Dimensions (W × D × H) | US300-24G4F-HP: 440×260×43.6mm; US300-24G4F: 440×230×43.6mm; US300-16G4F-HP: 440×230×43.6mm; US300-16G4F: 440×160×43.6mm; US300-8G2F-HP: 330×230×43.6mm; US300-8G2F: 266×160×43.6mm |
| Weight | US300-24G4F-HP: ≤ 3.7 kg; US300-24G4F: ≤ 2.1 kg; US300-16G4F-HP: ≤ 3.7 kg; US300-16G4F: ≤ 2.1 kg; US300-8G2F-HP: ≤ 2.1 kg; US300-8G2F: ≤ 1.1 kg |
| Management port | 1 console port |
| Networking interface | US300-24G4F-HP: 24×10/100/1000Base-T PoE+ ports 4×1000Base-X SFP ports; US300-24G4F: 24×10/100/1000Base-T ports 4×1000Base-X SFP ports; US300-16G4F-HP: 16×10/100/1000Base-T PoE+ ports 4×1000Base-X SFP ports; US300-16G4F: 16×10/100/1000Base-T ports 4×1000Base-X SFP ports; US300-8G2F-HP: 8×10/100/1000Base-T PoE+ ports 2×1000Base-X SFP ports; US300-8G2F: 8×10/100/1000Base-T ports 2×1000Base-X SFP ports |
| Port Surge | 6KV |
| Input voltage | AC: 180-264V, 47-53Hz / AC: 90-264V, 47-63Hz / AC: 90V~264V, 47-63Hz |
| Total power consumption | US300-24G4F-HP: MIN: AC: 10W MAX: AC: 420W (PoE 370W); US300-24G4F: MIN: AC: 6W MAX: AC: 16W; US300-16G4F-HP: MIN: AC: 10W MAX: AC: 306W (PoE 250W); US300-16G4F: MIN: AC: 6W MAX: AC: 14W; US300-8G2F-HP: MIN: AC: 10W MAX: AC: 158W (PoE 135W); US300-8G2F: MIN: AC: 7W MAX: AC: 14W |
| Fan number | US300-24G4F-HP: 3; US300-24G4F: Fan-less; US300-16G4F-HP: 3; US300-16G4F: Fan-less; US300-8G2F-HP: Fan-less; US300-8G2F: Fan-less |
| MTBF(Year) | US300-24G4F-HP: 49.372; US300-24G4F: 239.783; US300-16G4F-HP: 49.372; US300-16G4F: 239.783; US300-8G2F-HP: 239.783; US300-8G2F: 49.372 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage temperature | -40℃ ~ 70℃ |
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing |
| Port aggregation | GE port aggregation Dynamic aggregation Static aggregation |
| Broadcast/Multicast/Unicast storm suppression | Storm suppression based on port bandwidth percentage Storm suppression based on PPS Storm suppression based on BPS Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression |
| Ethernet features | 802.3x traffic control and half-duplex backpressure Green Ethernet (EEE) Automatic port energy-saving |
| MAC address table | Static MAC address Blackhole MAC address Setting the maximum number of port MAC addresses to be learned |
| VLAN | Port-based VLAN MAC-based VLAN VLAN mapping MVRP |
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 DHCP Relay DHCP auto-config |
| VLAN interface | Both IPv4 and IPv6 supported |
| ARP | ARP Detection ARP speed limit |
| IP routing | Static routing |
| Multicast | IGMP Snooping V2/V3 PIM Snooping MLD Snooping Multicast VLAN |
| Layer 2 ring network protocol | STP/RSTP/MSTP/PVST/PVST+ BPDU protection/root protection/loopback protection/protection against TC-BPDU attack |
