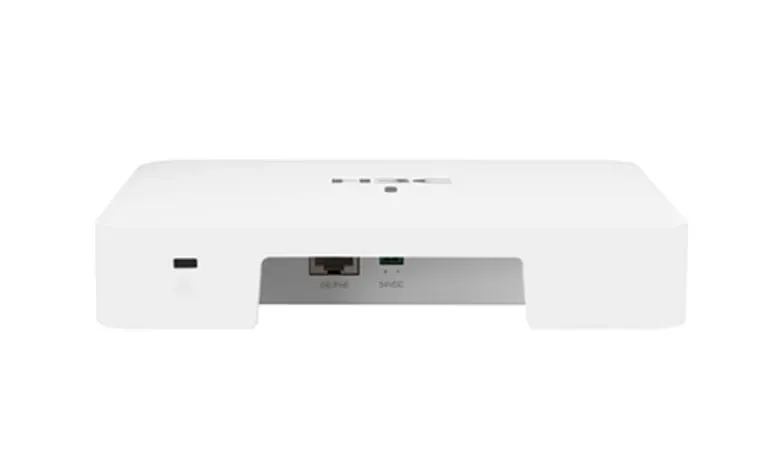

A Wi-Fi 6 AP for SMBs with up to 2.975 Gbps, managed from the Cloudnet cloud platform.
Island-wide delivery to all 25 districts
| Name | WA6120 |
|---|---|
| Weight | 0.5Kg |
| Dimensions (W × D × H) | 180mm X 180mm X 32mm |
| Interface | 1 x 100/1000M Ethernet, RJ-45, PoE input |
| Console port | 1 × Management console port (RJ-45) |
| PoE input | 802.3af |
| Local power supply | 54V DC |
| Antenna Type | Built-in omni-directional antenna |
| Antenna Gain | 5GHz peak gain: 5dBi 2.4GHz peak gain: 4dBi Note: The equivalent antenna gain is 4dBi in 5GHz and 3dBi in 2.4GHz |
| Frequencybands | 2.400to2.4835GHzISM 5.150to5.250GHzU-NII-1 5.250to5.350GHzU-NII-2A 5.470to5.725GHzU-NII-2C 5.725to5.850GHzU-NII-3/ISM Note: The available bands and channels are dependent on the configured regulatory domain (country) |
| Modulation technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected] /11Mbps |
| Modulation mode | 11b: DSSS: [email protected] /11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum transmit power | 5GHz: 23dBm 2.4GHz: 23dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations |
| Adjustable power granularity | 1 dBm |
| Reset/restoration to factory default | support |
| Kensington Lock | support |
| Installation | wall mounting/ceiling mounting |
| LED | Alternating flashing mode, yellow/green/blue for different working states |
| Temperature | Operating temperature: 0°C to +45°C Storage temperature: –40°C to +70°C |
| Humidity | Operating humidity: 5% to 95% (non-condensing) Storage humidity: 5% to 95% (non-condensing) |
| Protection class | IP41 |
| Overall power consumption | 12.95W |
| Safety Standards | IEC/EN 62368-1 GB 4943.1 |
| EMC Standards | EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 60601-1-2 EN 55032 EN 55035 / CISPR 32 CISPR 35 AS/NZS CISPR32 ICES-003 Issue 7 GB/T 9254.1 GB/T 9254.2 GB 17625.1 GB 17625.2 / IEC/EN 61000-4-2 IEC/EN 61000-4-3 IEC/EN 61000-4-4 IEC/EN 61000-4-5 IEC/EN 61000-4-6 IEC/EN 61000-4-8 IEC/EN 61000-4-11 IEC/EN 61000-3-2 IEC/EN 61000-3-3 |
| Radio Standards | ETSI EN 300 328 ETSI EN 301 893 ETSI EN 300 440 FCC Part 15E |
| RoHS Standards | DIRECTIVE 2011/65/EU (EU) 2015/863 |
| Health Standards | EN 50385:2017 EN IEC 62311:2020 |
| MTBF (25 °C) | 864581 hours |
| Part numbers | EWP-WA6120-FIT, EWPAM1HPOE-GL, ADP040-54B |
